How to Replace a Receiver-Drier in an A/C System on Dodge Avenger?

When replacing entire components, additional refrigerant oil must be added equal to the amount that is removed with the component being replaced. Read the label on the oil container to verify that it is compatible with the R-134a or R-1234yf system before adding any of it to the system. On some models, the A/C Accumulator is contained in the side of the air conditioning condenser, and must be replaced as a unit. Removal: Have the system discharged and the refrigerant recovered by an air conditioning technician. Disconnect the negative battery cable from the remote ground terminal or battery. Loosen the right-front wheel lug nuts. Set the parking brake, raise the front of the vehicle and support it securely on jackstands. Remove the right front wheel. Remove the inner fender splash shield retainers and pull out the splash shield far enough to gain access to the A/C Accumulator. Remove both line fittings from the A/C Accumulator. Plug all openings immediately to prevent contamination. Remove the mounting fastener retaining the A/C Accumulator to the mounting bracket. Loosen the mounting strap and remove the A/C Accumulator. Installation: Installation is the reverse of removal. Install new O-rings onto the line fittings and lightly coat them with the correct refrigerant oil. Only use O-rings that are designed specifically for A/C system applications. If you are replacing the A/C Accumulator with a new unit, add 0.7-ounce (20 ml) of refrigerant oil to the replacement. Have the system evacuated, recharged and leak tested by the shop that discharged it.

Genuine Dodge Avenger A/C Accumulator

Accumulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 A/C Accumulators found

View related parts

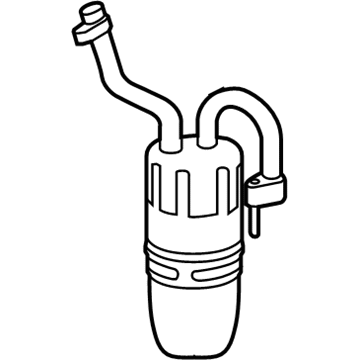

Dodge Avenger DRIER-Air Conditioning
Part Number: 5058824AA
$132.16 MSRP: $310.00
You Save: $177.84 (58%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning Includes: Bracket, Screw, Bushing, Grommet, Stud, Seal; Dehydrator, Drier
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2009 Dodge Avenger | R/T FWD, SE, SXT | 6 Cyl 2.7L, 6 Cyl 3.5L
View related parts
Dodge Avenger ACCUMULAT-Air Conditioning
Part Number: 5058235AE
$178.88 MSRP: $270.00
You Save: $91.12 (34%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning Includes: Bracket, Screw, Bushing, Grommet, Stud, Seal
- Replaced by: 5058235AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2009 Dodge Avenger | R/T AWD, R/T FWD, SE, SXT | 4 Cyl 2.4L, 6 Cyl 2.7L, 6 Cyl 3.5L
View related parts
Dodge Avenger ACCUMULAT-Air Conditioning
Part Number: 5189376AA
$166.58 MSRP: $253.00
You Save: $86.42 (35%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning; Dehydrator, Drier
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2008 Dodge Avenger | R/T AWD, R/T FWD, SE, SXT | 4 Cyl 2.4L, 6 Cyl 2.7L, 6 Cyl 3.5L
View related parts

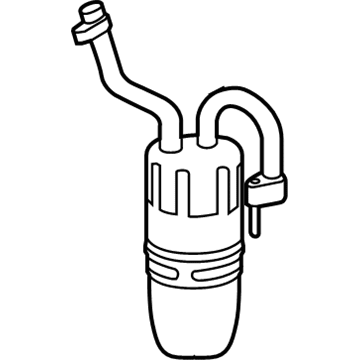

Dodge Avenger ACCUMULAT-Air Conditioning
Part Number: 5058235AG
$178.88 MSRP: $270.00
You Save: $91.12 (34%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning Includes: Bracket, Screw, Bushing, Grommet, Stud, Seal; Dehydrator, Drier
- Replaces: 5058235AE, 5058235AF
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2008-2014 Dodge Avenger | Express, Heat, LUX, Mainstreet, R/T AWD, R/T FWD, SE, SXT | 4 Cyl 2.4L, 6 Cyl 2.7L, 6 Cyl 3.5L
View related parts

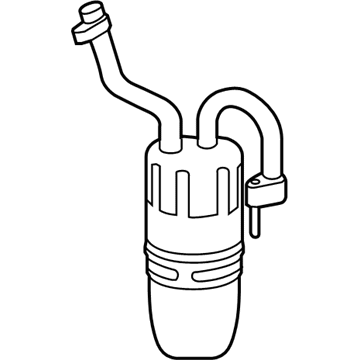

Dodge Avenger DRIER-Air Conditioning
Part Number: 5058824AC
$184.47 MSRP: $275.00
You Save: $90.53 (33%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning Includes: Bracket, Screw, Bushing, Grommet, Stud, Seal; Dehydrator, Drier
- Replaces: 5058824AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2014 Dodge Avenger | Express, Heat, LUX, Mainstreet, R/T FWD, SE, SXT, SXT Plus | 6 Cyl 2.7L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts
Dodge Avenger ACCUMULAT-Air Conditioning
Part Number: 5058235AF
$123.85 MSRP: $270.00
You Save: $146.15 (55%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning Includes: Bracket, Screw, Bushing, Grommet, Stud, Seal
- Replaced by: 5058235AG
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Avenger | Express, Heat, LUX, Mainstreet, R/T FWD, SE, SXT | 4 Cyl 2.4L
View related parts
Dodge Avenger DRIER-Air Conditioning
Part Number: 5058824AB
$127.25 MSRP: $275.00
You Save: $147.75 (54%)
ADD TO CART
Product Specifications
- Other Name: ACCUMULATOR Air Conditioning Includes: Bracket, Screw, Bushing, Grommet, Stud, Seal
- Replaced by: 5058824AC
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010-2012 Dodge Avenger | Express, Heat, LUX, Mainstreet, R/T FWD, SE, SXT, SXT Plus | 6 Cyl 2.7L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts
Dodge Avenger Receiver
Part Number: MR147551
Product Specifications
- Other Name: RECIEVER Assembly, Air Contitioning; Dehydrator, Drier
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1995-1999 Dodge Avenger | Base, ES | 4 Cyl 2.0L
View related parts
Dodge Avenger DRIER-Air Conditioning Filter
Part Number: MR270457
Product Specifications
- Other Name: DRIER Air Conditioning Filter; Dehydrator, Drier
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1998-2000 Dodge Avenger | Base | 6 Cyl 2.5L

Dodge Avenger A/C Accumulator

The A/C Accumulator is a key component in the Dodge Avenger automobiles so as to provide efficient conditioning of the car interiors. This is a cylinder shaped member which is located between the evaporator and compressor, and it serves the function of filtering out moisture, oil and any other debris in the cooling system. In this way the A/C Accumulator contributes to avoiding further malfunctions of the compressor and to maximum efficiency of the air conditioning systems. Although the list given in the overview section of the website does not identify different types or style of A/C Accumulator applicable on the different models of Dodge Avenger, the purpose of this component stays the same across models, makes and even brands. Air conditioning cleaning and A/C Accumulator component is significant for the longevity and reliability of the climate control of the Dodge Avenger as it filters out contaminants to keep the A/C functioning well.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Avenger A/C Accumulator at great affordable prices. Moreover, all genuine Dodge Avenger A/C Accumulator come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Dodge Avenger A/C Accumulator Parts Questions & Experts Answers

ACCUMULAT-Air Conditioning
5058235AE
Q: How to Replace a Receiver-Drier in an A/C System on Dodge Avenger?
A: When replacing entire components, additional refrigerant oil must be added equal to the amount that is removed with the component being replaced. Read the label on the oil container to verify that it is compatible with the R-134a or R-1234yf system before adding any of it to the system. On some models, the A/C Accumulator is contained in the side of the air conditioning condenser, and must be replaced as a unit. Removal: Have the system discharged and the refrigerant recovered by an air conditioning technician. Disconnect the negative battery cable from the remote ground terminal or battery. Loosen the right-front wheel lug nuts. Set the parking brake, raise the front of the vehicle and support it securely on jackstands. Remove the right front wheel. Remove the inner fender splash shield retainers and pull out the splash shield far enough to gain access to the A/C Accumulator. Remove both line fittings from the A/C Accumulator. Plug all openings immediately to prevent contamination. Remove the mounting fastener retaining the A/C Accumulator to the mounting bracket. Loosen the mounting strap and remove the A/C Accumulator. Installation: Installation is the reverse of removal. Install new O-rings onto the line fittings and lightly coat them with the correct refrigerant oil. Only use O-rings that are designed specifically for A/C system applications. If you are replacing the A/C Accumulator with a new unit, add 0.7-ounce (20 ml) of refrigerant oil to the replacement. Have the system evacuated, recharged and leak tested by the shop that discharged it.
