Genuine Dodge Magnum Intake Manifold
Engine Intake Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
16 Intake Manifolds found
Dodge Magnum Plenum-Intake Manifold
Part Number: 4591863AL$1081.30 MSRP: $1650.00You Save: $568.70 (35%)
Dodge Magnum Upper Intake Manifold
Part Number: 4591846AH$325.99 MSRP: $482.00You Save: $156.01 (33%)

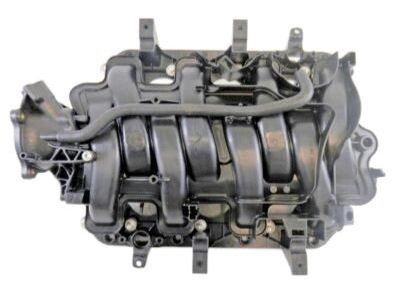

Dodge Magnum Intake Manifold
intake manifold of Dodge Magnum automobile is responsible for distributing the air or the air/fuel mixture to every cylinder, this part severely affects the power and engine functionality. It work by sucking in the air from the throttle body varying in style with regard to the engine type, carbureted, throttle body injected, or multiport fuel injected. Intake manifolds found in today's Magnum series Dodges are made from the composite plastic material which is lighter and a better thermo-setter than cast iron or aluminum. Variants of Intake Manifold, for instance, variable-length intake manifolds (VLIM), increases performance by constantly varying the length of the intake manifold to provide the premier response to non-possessing load. With this technology as well as with improvement in the material used, the Magnum becomes more efficient and delivers more power output.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Magnum Intake Manifold at great affordable prices. Moreover, all genuine Dodge Magnum Intake Manifold come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Magnum Intake Manifold Parts Questions & Experts Answers
- Q: How to remove and install an intake manifold in V8 engine on Dodge Magnum?A: Lift off the engine cover.Disengage the fuel system pressure. Disconnect battery negative cable.Remove the air cleaner housing and duct of intake air.Take out the ignition's 2005 model coils and spark plug wires.Separate brake booster vacuum hose, canister purge hose, and PCV hose. Pull out fuel rail and injectors.EGR pipe is removed from intake manifold. MAP sensor electrical connectors are switched off and throttle body connected to it.Loosen intake manifold bolts with 1/4 turn intervals, starting with outermost ones up to hand-removal point; repeat tightening process in reverse order. As manifold is raised from engine, one should check for anything still attached to manifold and disconnect it properly (CAUTION: mating surfaces of Cylinder Heads & intake manifold have to be perfectly clean when installing manifold but do not use abrasive cleaners or solvents on plastic manifolds as they can be damaged). Check for damage or hardening of O-rings on intake manifolds (If they are fine, then reuse them)-If necessary, replace them (Replace your Intake Manifold O-Rings with new ones: make sure that they seat well in their grooves)..The placement of this part should be done very carefully (CAUTION: don't upset rubber seals nor move the manifold back-and-forth after it touches cylinder heads or you will push seals away thus making a vacuum leak or oil leaks may develop).Torque down the intake manifolds bolts according to recommended sequence including bolt numbers on tightening procedure.Remaining steps for installation are just undoing what was done during removal process.Check for any vacuum leaks at intake manifold joints then start engine motor(s).
