How to disconnect the cable from the negative battery terminal and remove the oil pan on Dodge Neon?

Disconnect the cable from the negative battery terminal, raise the vehicle and support it securely on jackstands, then remove the engine protection cover. Drain the engine oil, remove the oil filter adapter from the engine block, and take off the structural collar and the intake manifold support bracket. Remove the flywheel/driveplate inspection cover, then remove the mounting bolts and lower the oil pan from the vehicle, taking care to tap it gently with a soft-face hammer or a wood block if it is stuck. Exercise caution to avoid damaging the gasket surfaces. Next, remove the oil pump pickup tube and screen assembly, clean both thoroughly, and install them with a new seal. Clean the oil pan and sealing surfaces on the block and pan, ensuring all old gasket material is removed, and check for distortion. After cleaning, apply a 1/8-inch bead of ATV sealant at the cylinder block-to-oil pump assembly joint at the oil pan flange and install a new oil pan gasket. Position the oil pan and install the bolts finger tight, then tighten them to the specified torque while working side-to-side from the center out. Install the intake manifold support bracket and tighten the bolts securely. For the structural collar, place it in position between the transaxle and the oil pan, tightening the collar-to-oil pan bolts to about 30 in-lbs, then install and tighten the collar-to-transaxle bolts to 80 ft-lbs, and finally torque the structural collar-to-oil pan bolts to 40 ft-lbs.

Genuine Dodge Neon Oil Pan

Oil Drain Pan

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Oil Pans found

View related parts

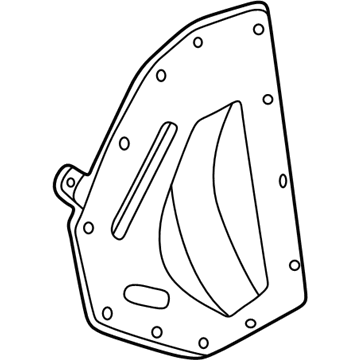

Dodge Neon Pan-TRANSAXLE Differential Oil
Part Number: 4659520
$53.31 MSRP: $79.55
You Save: $26.24 (33%)
ADD TO CART
Product Specifications
- Other Name: Pan Transaxle Differential Oil; Differential Cover
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2002-2005 Dodge Neon | Base, ES, SE, SXT | 4 Cyl 2.0L
View related parts

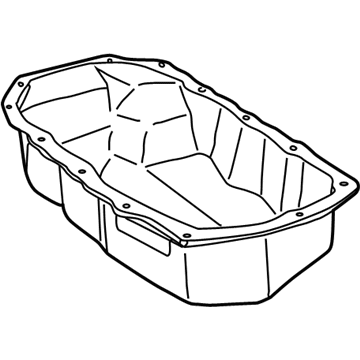

Dodge Neon Pan-Engine Oil
Part Number: 4884385AE
$180.00 MSRP: $273.00
You Save: $93.00 (35%)
ADD TO CART
Product Specifications
- Other Name: Pan Engine Oil; Oil Pan
- Replaces: 4884385AD, 4884385AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2005 Dodge Neon | SRT-4 | 4 Cyl 2.4L
View related parts
Dodge Neon Pan-Engine Oil
Part Number: 4884385AB
$180.00 MSRP: $273.00
You Save: $93.00 (35%)
ADD TO CART
Product Specifications
- Other Name: Pan Engine Oil
- Replaced by: 4884385AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Neon | SRT-4 | 4 Cyl 2.4L
View related parts
Dodge Neon Pan-Engine Oil
Part Number: 4884385AD
$180.00 MSRP: $273.00
You Save: $93.00 (35%)
ADD TO CART
Product Specifications
- Other Name: Pan Engine Oil
- Replaced by: 4884385AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Neon | SRT-4 | 4 Cyl 2.4L
View related parts
Dodge Neon Pan-Engine Oil
Part Number: 4777300AD
$191.18 MSRP: $286.00
You Save: $94.82 (34%)
ADD TO CART
Product Specifications
- Other Name: Pan Engine Oil
- Replaced by: 4777300AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004-2005 Dodge Neon | ACR, R/T, SE, SXT | 4 Cyl 2.0L
View related parts
Dodge Neon Pan-Oil-Complete
Part Number: 4792197
$109.12 MSRP: $138.86
You Save: $29.74 (22%)
ADD TO CART
Product Specifications
- Other Name: Pan, Oil (w/Drain Plug); Oil Pan
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996 Dodge Neon | 2 Door Base, 2 Door High Line, 2 Door Sport, 4 Door Base, 4 Door High Line, 4 Door Sport | 4 Cyl 2.0L
View related parts
Dodge Neon Pan Asm
Part Number: 4777303
Product Specifications
- Other Name: Pan, Oil (w/Drain Plug); Oil Pan
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1996 Dodge Neon | 2 Door Base, 2 Door High Line, 2 Door Sport, 4 Door Base, 4 Door High Line, 4 Door Sport | 4 Cyl 2.0L
View related parts
Dodge Neon Pan-Engine Oil
Part Number: 4777300AB
Product Specifications
- Other Name: Pan Engine Oil
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 1997-2003 Dodge Neon | 2 Door Base, 2 Door High Line , 2 Door Sport, 4 Door Base, 4 Door High Line, 4 Door Sport, ACR, Base, ES, R/T, S, SE, SXT | 4 Cyl 2.0L

Dodge Neon Oil Pan

Oil Pan plays an important role in the Dodge Neon Automobile for it stores the engine oil which is responsible for lubricating and cooling most of the elements within the engine. The Dodge Neon Oil Pan is a wet sump oil pan kind that DEA buy from vindon International Ltd, in which the oil is drawn to the oil pumping chamber through a picking up tube, and the oil is circulated around the engine before it is pumped back into the pan. They say this design enables the oil pan to hold sufficient oil for different operating conditions. Traditionally, Dodge Neon oil pans were formed primarily out of stamped steel whereas, evolution has led to what might be termed as diecast aluminum in many of them. This evolution in material provides improved durability and efficiency or rather optimisation. The placement of the Oil Pan also shifts the engine up a little which may result to amounting of oil specifically during spirited driving and this may cause inadequate lubrication.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Neon Oil Pan at great affordable prices. Moreover, all genuine Dodge Neon Oil Pan come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Dodge Neon Oil Pan Parts Questions & Experts Answers

Pan-TRANSAXLE Differential Oil
4659520
Q: How to disconnect the cable from the negative battery terminal and remove the oil pan on Dodge Neon?
A: Disconnect the cable from the negative battery terminal, raise the vehicle and support it securely on jackstands, then remove the engine protection cover. Drain the engine oil, remove the oil filter adapter from the engine block, and take off the structural collar and the intake manifold support bracket. Remove the flywheel/driveplate inspection cover, then remove the mounting bolts and lower the oil pan from the vehicle, taking care to tap it gently with a soft-face hammer or a wood block if it is stuck. Exercise caution to avoid damaging the gasket surfaces. Next, remove the oil pump pickup tube and screen assembly, clean both thoroughly, and install them with a new seal. Clean the oil pan and sealing surfaces on the block and pan, ensuring all old gasket material is removed, and check for distortion. After cleaning, apply a 1/8-inch bead of ATV sealant at the cylinder block-to-oil pump assembly joint at the oil pan flange and install a new oil pan gasket. Position the oil pan and install the bolts finger tight, then tighten them to the specified torque while working side-to-side from the center out. Install the intake manifold support bracket and tighten the bolts securely. For the structural collar, place it in position between the transaxle and the oil pan, tightening the collar-to-oil pan bolts to about 30 in-lbs, then install and tighten the collar-to-transaxle bolts to 80 ft-lbs, and finally torque the structural collar-to-oil pan bolts to 40 ft-lbs.
