How to check and adjust Shift Cable on Dodge Ram 3500?

On 8HP45/845REa-speed models, the transmission does not use a shill cable. Instead, it utilizes an electronic shifter (E-shifter) which is an electronic switch/module mounted to the instrument panel. This electronic shifter communicates the transmission gear changes through electronic messaging. To check the transmission, firmly apply the parking brake and momentarily operate the starter in each shift lever position. The starter should only operate when the shift lever is in the PARK or NEUTRAL positions. If the starter operates in any other position, adjust the shift cable. If the starter still operates incorrectly after adjustment, the Transmission Range (TR) sensor is defective. To adjust the shift cable, place the shift lever in the PARK position and raise the vehicle securely on jackstands. Pry the cable end off the manual shift lever at the transmission and verify that the manual shift lever is in the PARK position. Ensure that the park lock pawl inside the transmission is engaged by trying to rotate the driveshaft. If the driveshaft does not rotate, the transmission is correctly engaged in PARK. Disengage the locking clip on the cable end and move the end of the cable in or out as required so that it snaps over the stud on the shift lever. Snap the locking clip into place and lower the vehicle. Replace any trim panels that were removed and make sure the engine starts with the parking brake applied. If the linkage appears to be adjusted correctly but the starter still operates in any other position besides PARK and NEUTRAL, replace the Transmission Range (TR) sensor. To replace the shift cable, make sure the shift lever is in the PARK position and raise the vehicle securely on jackstands. Remove the cable end from the shift lever at the transmission and pull it out of its mounting bracket. Lower the vehicle and remove the necessary instrument panel trim panels to reach the upper end of the shift cable. Remove the shift cable grommet from the firewall after pulling back the insulation. Disconnect the electrical connector from the Brake Transmission Shift Interlock (BTSI) solenoid and pry the cable end off the lever on the steering column. To disengage the cable assembly from the steering column bracket, squeeze the two tangs on the cable housing together and pull the cable assembly straight down. Installation is the reverse of removal, and the cable should be adjusted accordingly.

Genuine Dodge Ram 3500 Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Shift Cables found

View related parts

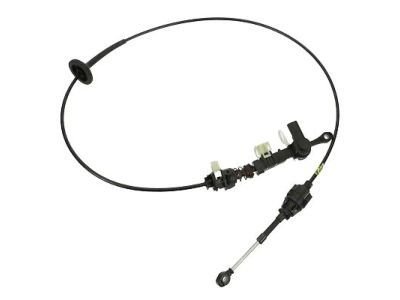

Dodge Ram 3500 Transmission Gearshift Control Cable
Part Number: 68055041AB
$137.62 MSRP: $205.00
You Save: $67.38 (33%)
ADD TO CART
Product Specifications
- Other Name: Cable-Gearshift Control; Shift Control Cable
- Replaces: 68055041AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, SLT Crew Cab 2WD, SLT Crew Cab 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Crew Cab 2WD, ST Crew Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 6.7L Diesel
View related parts

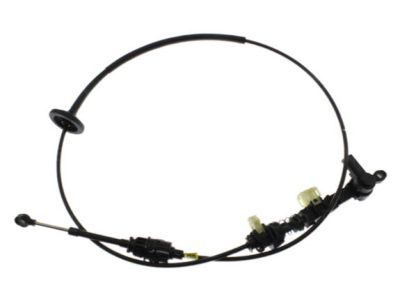

Dodge Ram 3500 Automatic Transmission Gear Shift Shifter Control Cable
Part Number: 52107846AG
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107846AJ
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005-2006 Dodge Ram 3500 | Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, Laramie Quad Cab 2WD, Laramie Quad Cab 4WD, Laramie Regular Cab 2WD, Laramie Regular Cab 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 5.9L Diesel
View related parts
Dodge Ram 3500 Automatic Transmission Shifter Cable Upper
Part Number: 52107847AJ
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107847AM
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2009 Dodge Ram 3500 | Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, Laramie Quad Cab 2WD, Laramie Quad Cab 4WD, Mega Cab 2WD, Mega Cab 4WD, Quad Cab Chassis 2WD, Quad Cab Chassis 4WD, Quad Chassis CAB 2WD, Quad Chassis CAB 4WD, Regular Cab Chassis 2WD, Regular Cab Chassis 4WD, Regular Chassis CAB 2WD, Regular Chassis CAB 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 5.9L Diesel, 6 Cyl 6.7L Diesel, 8 Cyl 5.7L
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107846AH
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107846AJ
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007-2009 Dodge Ram 3500 | Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, Laramie Quad Cab 2WD, Laramie Quad Cab 4WD, Laramie Regular Cab 2WD, Mega Cab 2WD, Mega Cab 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 5.9L Diesel, 6 Cyl 6.7L Diesel, 8 Cyl 5.7L
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107846AF
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107846AJ
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2004 Dodge Ram 3500 | SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 5.9L Diesel
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107847AH
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107847AM
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2006 Dodge Ram 3500 | Laramie Quad Cab 2WD, Laramie Quad Cab 4WD, Laramie Regular Cab 2WD, Laramie Regular Cab 4WD, SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 8 Cyl 5.7L
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107847AI
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107847AM
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2007 Dodge Ram 3500 | Quad Cab Chassis 2WD, Quad Cab Chassis 4WD, Regular Cab Chassis 2WD, Regular Cab Chassis 4WD | 8 Cyl 5.7L
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107847AF
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107847AM
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003-2004 Dodge Ram 3500 | SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 8 Cyl 5.7L
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107847AG
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107847AM
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2005 Dodge Ram 3500 | SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 8 Cyl 5.7L
View related parts
Dodge Ram 3500 Automatic Transmission Shifter Cable
Part Number: 52107847AK
$157.62 MSRP: $239.00
You Save: $81.38 (35%)
ADD TO CART
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107847AM
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2010 Dodge Ram 3500 | Quad Cab Chassis 2WD, Quad Cab Chassis 4WD, Regular Cab Chassis 2WD, Regular Cab Chassis 4WD | 6 Cyl 6.7L Diesel
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107846AD
Product Specifications
- Other Name: Cable-Shift
- Replaced by: 52107846AE
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 10 Cyl 8.0L, 6 Cyl 5.9L Diesel
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107846AE
Product Specifications
- Other Name: Cable-Shift; Shift Control Cable
- Replaces: 52107846AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 10 Cyl 8.0L, 6 Cyl 5.9L Diesel
View related parts
Dodge Ram 3500 Transmission Shift Cable
Part Number: 52107847AE
Product Specifications
- Other Name: Cable-Shift; Shift Control Cable
- Replaces: 52107847AD
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2003 Dodge Ram 3500 | SLT Quad Cab 2WD, SLT Quad Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Quad Cab 2WD, ST Quad Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 8 Cyl 5.7L

Dodge Ram 3500 Shift Cable

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Ram 3500 Shift Cable at great affordable prices. Moreover, all genuine Dodge Ram 3500 Shift Cable come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Dodge Ram 3500 Shift Cable Parts Questions & Experts Answers

Transmission Gearshift Control Cable
68055041AB
Q: How to check and adjust Shift Cable on Dodge Ram 3500?
A: On 8HP45/845REa-speed models, the transmission does not use a shill cable. Instead, it utilizes an electronic shifter (E-shifter) which is an electronic switch/module mounted to the instrument panel. This electronic shifter communicates the transmission gear changes through electronic messaging. To check the transmission, firmly apply the parking brake and momentarily operate the starter in each shift lever position. The starter should only operate when the shift lever is in the PARK or NEUTRAL positions. If the starter operates in any other position, adjust the shift cable. If the starter still operates incorrectly after adjustment, the Transmission Range (TR) sensor is defective. To adjust the shift cable, place the shift lever in the PARK position and raise the vehicle securely on jackstands. Pry the cable end off the manual shift lever at the transmission and verify that the manual shift lever is in the PARK position. Ensure that the park lock pawl inside the transmission is engaged by trying to rotate the driveshaft. If the driveshaft does not rotate, the transmission is correctly engaged in PARK. Disengage the locking clip on the cable end and move the end of the cable in or out as required so that it snaps over the stud on the shift lever. Snap the locking clip into place and lower the vehicle. Replace any trim panels that were removed and make sure the engine starts with the parking brake applied. If the linkage appears to be adjusted correctly but the starter still operates in any other position besides PARK and NEUTRAL, replace the Transmission Range (TR) sensor. To replace the shift cable, make sure the shift lever is in the PARK position and raise the vehicle securely on jackstands. Remove the cable end from the shift lever at the transmission and pull it out of its mounting bracket. Lower the vehicle and remove the necessary instrument panel trim panels to reach the upper end of the shift cable. Remove the shift cable grommet from the firewall after pulling back the insulation. Disconnect the electrical connector from the Brake Transmission Shift Interlock (BTSI) solenoid and pry the cable end off the lever on the steering column. To disengage the cable assembly from the steering column bracket, squeeze the two tangs on the cable housing together and pull the cable assembly straight down. Installation is the reverse of removal, and the cable should be adjusted accordingly.
