Genuine Jeep Compass Fuel Tank
Gas Tank- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
36 Fuel Tanks found
| Page 1 of 2 |Next >
1-20 of 36 Results

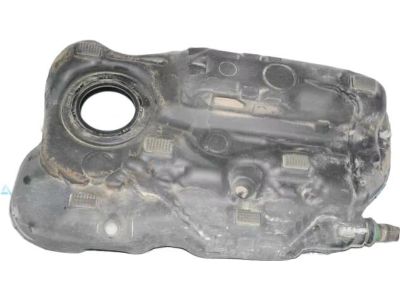

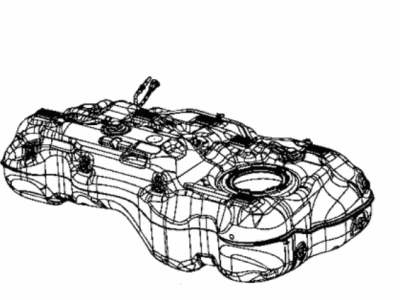

Jeep Compass Fuel Tank
The Fuel Tank of Jeep Compass vehicles is also the holder of the electric fuel pump along with the fuel gauge sender. It also has an important contribution to the Evaporative Emission Control System (EVAP) so that fuel vapors cannot escape. These tanks usually come in metal or plastic build; metal tanks are formed through stamping and welding while on the other hand, plastic tanks are blow-molded HDPE. Metal tanks will rust and thus will not be suitable for use while plastic tanks are very sensitive to temperature changes and shock resulting in cracking. Formula car fuel tanks are protected to prevent them from being punctured and spilling the gasoline upon an accident. Military specification high capacity fuel tanks are available for increasing range by up to 500 miles and are corrosion proof which could replace steel fuel tanks.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Jeep Compass Fuel Tank at great affordable prices. Moreover, all genuine Jeep Compass Fuel Tank come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Jeep Compass Fuel Tank Parts Questions & Experts Answers
- Q: How to Remove the Fuel Tank on Jeep Compass?A: The procedure for removing the fuel tank is much easier if the tank is empty. If it is not empty, you can use a siphon kit to remove the fuel. First, relieve the fuel system pressure. Then, disconnect the negative terminal of the battery. Next, raise the rear of the vehicle and support it with jackstands. Remove the Fuel Pump module and, on AWD models, the auxiliary module. If equipped, remove the fuel tank skid plate(s). Detach the parking brake cable mounting straps from the fuel tank strap studs. Remove the exhaust pipe and muffler from below the fuel tank. For AWD models, remove the rear differential support bracket fasteners and brackets, as well as the driveshaft and rear differential electronically controlled clutch. For all models, remove the left and right stay brackets between the rear crossmember and chassis, if equipped, and remove the splash shields from each side at the front of the tank, if equipped. Loosen the hose clamp and disconnect the fuel filler hose. Disconnect the fuel line and EVAP line quick-connect fittings located at the front of the fuel tank. Support the fuel tank with a transmission jack or floor jack, using a piece of plywood to protect the tank. Remove the fuel tank support strap bolts and carefully lower the fuel tank from the vehicle, ensuring no hoses or wiring harnesses are still attached. Installation is the reverse of removal, making sure to tighten the fuel tank strap bolts securely. Finally, start the engine and check for any leaks at the fuel line connectors that were disconnected.
