How to Replace the Expansion Valve in an Air Conditioner on Ram 2500?

After operating a fully-charged air conditioner for five minutes, the liquid line should be hot near the condenser and it should be cold near the evaporator (be careful - it can get very hot!). If there isn't a significant temperature difference, the expansion valve may be plugged. If the system is checked with the appropriate gauges, and the high-pressure reads extremely high and the low-pressure reads almost a vacuum, the expansion valve is plugged. In either case, the expansion valve must be replaced. The expansion valve is a metering device that is located where the refrigerant lines connect to the evaporator at the firewall. Have the air conditioning system discharged. Disconnect the cable(s) from the negative battery terminal(s). Disconnect the air conditioning line fitting block from the firewall (Air conditioning line connection at the firewall). Remove the 0-rings and seal the openings to prevent contamination. Remove the two counter-sunk bolts from the expansion valve, then remove the valve. Remove the 0-rings and seal the openings to prevent contamination. Lubricate the new expansion valve 0-ring with clean refrigerant oil of the correct type. Installation is the reverse of removal. Have the system evacuated, recharged and leak-tested by the shop that discharged it.

Genuine Ram 2500 A/C Expansion Valve

Air Conditioning Expansion Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 A/C Expansion Valves found

View related parts

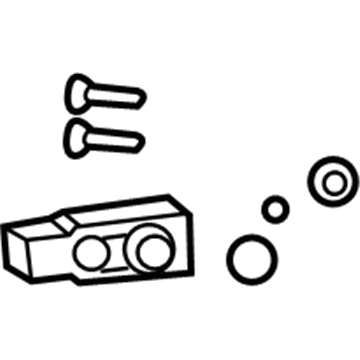

Ram 2500 Valve-A/C Expansion
Part Number: 68138269AB
$146.41 MSRP: $222.00
You Save: $75.59 (35%)
ADD TO CART
Product Specifications
- Other Name: Valve Kit A/C Expansion Includes: O-Rings and Screws; Expansion Valve
- Replaces: 68138269AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2018 Ram 2500 | Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, Longhorn Crew Cab 2WD, Longhorn Crew Cab 4WD, Longhorn Mega Cab 2WD, Longhorn Mega Cab 4WD, Power Wagon Crew Cab 4WD, Powerwagon Crew Cab 4WD, SLT Crew Cab 2WD, SLT Crew Cab 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Reg Cab 2WD, SLT Reg Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Crew Cab 2WD, ST Crew Cab 4WD, ST Reg Cab 2WD, ST Reg Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 6.7L Diesel, 8 Cyl 5.7L, 8 Cyl 5.7L CNG, 8 Cyl 6.4L
View related parts
Ram 2500 Valve-A/C Expansion
Part Number: 68048896AB
$128.52 MSRP: $193.00
You Save: $64.48 (34%)
ADD TO CART
Product Specifications
- Other Name: Valve Kit A/C Expansion Includes: O-Rings and Screws; Expansion Valve
- Replaces: 68048896AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2011 Ram 2500 | Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, Longhorn Crew Cab 2WD, Longhorn Crew Cab 4WD, Longhorn Mega Cab 2WD, Longhorn Mega Cab 4WD, Power Wagon Crew Cab 4WD, Powerwagon Crew Cab 4WD, SLT Crew Cab 2WD, SLT Crew Cab 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Crew Cab 2WD, ST Crew Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 6.7L Diesel, 8 Cyl 5.7L
View related parts
Ram 2500 Valve-A/C Expansion
Part Number: 68138269AA
$166.37 MSRP: $222.00
You Save: $55.63 (26%)
ADD TO CART
Product Specifications
- Other Name: Valve Kit A/C Expansion Includes: Bolts, O-Rings
- Replaced by: 68138269AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2012-2015 Ram 2500 | Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Mega Cab 2WD, Laramie Mega Cab 4WD, Longhorn Crew Cab 2WD, Longhorn Crew Cab 4WD, Longhorn Mega Cab 2WD, Longhorn Mega Cab 4WD, Power Wagon Crew Cab 4WD, Powerwagon Crew Cab 4WD, SLT Crew Cab 2WD, SLT Crew Cab 4WD, SLT Mega Cab 2WD, SLT Mega Cab 4WD, SLT Regular Cab 2WD, SLT Regular Cab 4WD, ST Crew Cab 2WD, ST Crew Cab 4WD, ST Regular Cab 2WD, ST Regular Cab 4WD | 6 Cyl 6.7L Diesel, 8 Cyl 5.7L, 8 Cyl 6.4L
View related parts
Ram 2500 A/C EXPANSION
Part Number: 68396043AB
$37.85 MSRP: $55.60
You Save: $17.75 (32%)
ADD TO CART
Product Specifications
- Other Name: Expansion Valve
- Replaces: 68396043AA
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ram 2500 | Big Horn Crew Cab 2WD, Big Horn Crew Cab 4WD, Big Horn Mega Cab 4WD, Big Horn Reg Cab 2WD, Big Horn Reg Cab 4WD, Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Mega Cab 4WD, Limited Crew Cab 2WD, Limited Crew Cab 4WD, Limited Mega Cab 4WD, Longhorn Crew Cab 2WD, Longhorn Crew Cab 4WD, Longhorn Mega Cab 4WD, Power Wagon Crew Cab 4WD, Tradesman Crew Cab 2WD, Tradesman Crew Cab 4WD, Tradesman Reg Cab 2WD, Tradesman Reg Cab 4WD | 6 Cyl 6.7 L DIESEL, 6 Cyl 6.7L Diesel, 8 Cyl 6.4 L GAS, 8 Cyl 6.4L
View related parts
Ram 2500 Valve-A/C Expansion
Part Number: 68396043AA
$37.85 MSRP: $55.60
You Save: $17.75 (32%)
ADD TO CART
Product Specifications
- Replaced by: 68396043AB
- Warranty: This genuine part is guaranteed by Mopar's factory warranty.
Fits the following Vehicles:
- 2019-2020 Ram 2500 | Big Horn Crew Cab 2WD, Big Horn Crew Cab 4WD, Big Horn Mega Cab 4WD, Big Horn Reg Cab 2WD, Big Horn Reg Cab 4WD, Laramie Crew Cab 2WD, Laramie Crew Cab 4WD, Laramie Mega Cab 4WD, Limited Crew Cab 2WD, Limited Crew Cab 4WD, Limited Mega Cab 4WD, Longhorn Crew Cab 2WD, Longhorn Crew Cab 4WD, Longhorn Mega Cab 4WD, Power Wagon Crew Cab 4WD, Tradesman Crew Cab 2WD, Tradesman Crew Cab 4WD, Tradesman Reg Cab 2WD, Tradesman Reg Cab 4WD | 6 Cyl 6.7L Diesel, 8 Cyl 6.4L

Ram 2500 A/C Expansion Valve

The A/C Expansion Valve applied in Ram 2500 engine is responsible for controlling refrigerant flow in A/C system to provide for the optimal quality performance. Through controlling the flow of the fluid, the A/C Expansion Valve helps the automobile air conditioning system to perform efficiently. For the Ram 2500 model, different types of A/C Expansion Valves have been used in the production and each of these is meant to offer different operation. These styles may differ in design and the way they operate which influences the method of handling refrigerant. In general, the A/C Expansion Valve plays a critical role in keeping Ram 2500 vehicles at comfortable temperatures inside the cabin space.

Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 2500 A/C Expansion Valve at great affordable prices. Moreover, all genuine Ram 2500 A/C Expansion Valve come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.

Ram 2500 A/C Expansion Valve Parts Questions & Experts Answers

Valve-A/C Expansion
68138269AB
Q: How to Replace the Expansion Valve in an Air Conditioner on Ram 2500?
A: After operating a fully-charged air conditioner for five minutes, the liquid line should be hot near the condenser and it should be cold near the evaporator (be careful - it can get very hot!). If there isn't a significant temperature difference, the expansion valve may be plugged. If the system is checked with the appropriate gauges, and the high-pressure reads extremely high and the low-pressure reads almost a vacuum, the expansion valve is plugged. In either case, the expansion valve must be replaced. The expansion valve is a metering device that is located where the refrigerant lines connect to the evaporator at the firewall. Have the air conditioning system discharged. Disconnect the cable(s) from the negative battery terminal(s). Disconnect the air conditioning line fitting block from the firewall (Air conditioning line connection at the firewall). Remove the 0-rings and seal the openings to prevent contamination. Remove the two counter-sunk bolts from the expansion valve, then remove the valve. Remove the 0-rings and seal the openings to prevent contamination. Lubricate the new expansion valve 0-ring with clean refrigerant oil of the correct type. Installation is the reverse of removal. Have the system evacuated, recharged and leak-tested by the shop that discharged it.
