Genuine Ram 3500 Leaf Spring
Leaf Helper Spring- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
69 Leaf Springs found
| Page 1 of 4 |Next >
1-20 of 69 Results

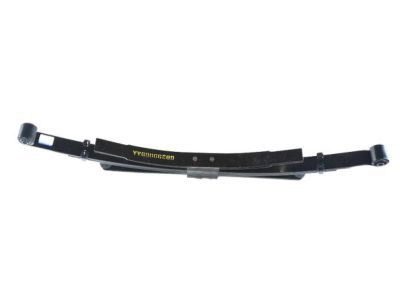

Ram 3500 Leaf Spring
Another vital suspension apparatus utilized in the Ram 3500 vehicles is the vehicle's Leaf Spring whose main role is to support and to counter impact from problematic road surfaces such as bumps. Constructed out of thin horn-shaped steel members that act as both springing and axle locating elements, the primary leaf includes capped ends for the physical integration with the car's chassis. Even in the massive vehicles such as the Ram 3500, it is associated with leaf springs since it can undergo the towing and hauling functions. Though modern suspension system has taken over the traditional leaf springs in most vehicles, they are still in existence in big vehicles such as the Ram 3500 which has a very good standing because of its durability and performance on different types of roads.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 3500 Leaf Spring at great affordable prices. Moreover, all genuine Ram 3500 Leaf Spring come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 3500 Leaf Spring Parts Questions & Experts Answers
- Q: How to Remove and Install a Leaf Spring on Ram 3500?A: To remove the leaf spring, start by loosening the wheel lug nuts and raising the rear of the vehicle. Support it securely on jackstands placed under the frame rails. Remove the wheel and support the rear axle with a floor jack placed under the axle tube. Remove the nuts, U-bolts, spring plate, and spring seat that clamp the leaf spring to the axle. Next, remove the leaf spring shackle bolts and the shackle. Unscrew the front bolt and remove the leaf spring from the vehicle. To install the leaf spring, position it on the axle tube so that the spring center bolt enters the locating hole on the axle tube. Line up the spring front eye with the mounting bracket and install the front bolt and nut. Install the rear shackle assembly and tighten the shackle bolt and the front bolt until all slack is taken up. Install the U-bolts and nuts, tightening them until they force the spring plate against the axle. Ensure that the auxiliary spring, if equipped, aligns with the mainspring. Finally, install the wheel and lug nuts, remove the jackstands, lower the vehicle, and tighten the lug nuts, U-bolt nuts, front bolt/nut, and shackle bolts/nuts.
