2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

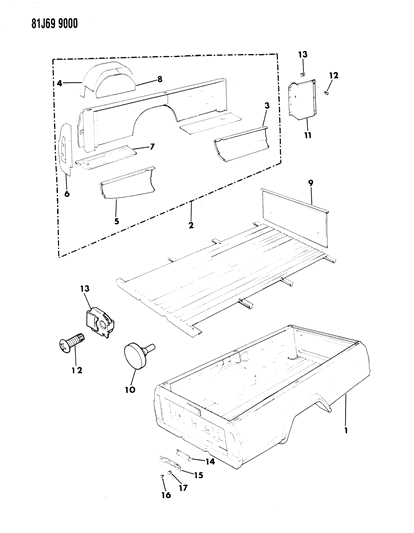

  • 1.BODY - SHEET METAL EXCEPT DOORS BOX, PICKUP, SPORTSIDE J10
    1985 Jeep J10 Box, Pickup Diagram 1

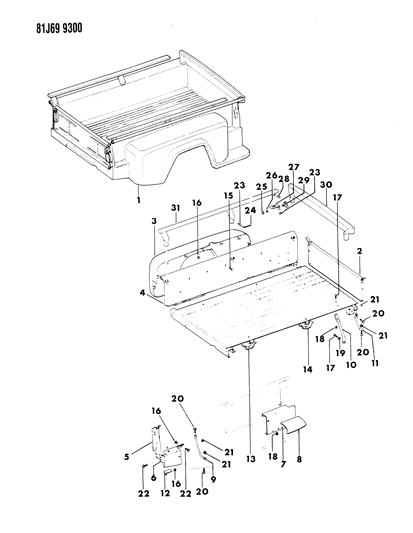

  • 2.BODY - SHEET METAL EXCEPT DOORS BOX, PICKUP, TOWNSIDE J10, J20
    1985 Jeep J10 Box, Pickup Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    J0959055
    PANEL, Pickup Box Front
  • 3
    J5752001
    FENDER, Pickup Box
    • Left
  • 3
    J5752002
    FENDER, Pickup Box
    • Right
  • 4
    J0957183
    FENDER, Pickup Box
    • Require Quantity: 2
  • 5
    J0957231
    SHIELD, Rear
    • Left
  • 5
    J0957232
    SHIELD, Rear
    • Right
  • 6
    J5459745
    PANEL, Rear
    • Left
  • 6
    J5459746
    PANEL, Rear
    • Right
  • 6
    J5752330
    PANEL, Side Lower, Right
    • PANEL, Side Lower, Right
  • 6
    J5752331
    PANEL, Side Lower, Right
    • PANEL, Side Lower, Left
  • 7
    J0988813
    EXTENSION, Floor
    • Left
  • 7
    J0988814
    EXTENSION, Floor
    • Right
  • 8
    J0957180
    PANEL, Wheelhouse Inner
    • Require Quantity: 2
  • 8
    J5752370
    TREAD, Step , Right
    • TREAD, Step , Right
  • 8
    J5752371
    TREAD, Step , Right
    • TREAD, Step , Left
  • 9
    J5752568
    BRACE, Right
    • BRACE, Right
  • 9
    J5752569
    BRACE, Right
    • BRACE, Left
  • 9
    J0957697
    PANEL, Pickup Box Front
  • 10
    J5752769
    BRACKET, Support
    • Left
  • 10
    J5752770
    BRACKET, Support
    • Right
  • 10
    J0968072
    BUMPER, Stop
    • Require Quantity: 2
  • 11
    J5752006
    BRACE
    • Require Quantity: 2
  • 11
    J5465051
    COVER, Fuel Tank Hose
  • 12
    J0957927
    BRACKET, Angle
    • Require Quantity: 2
  • 12
    S9415482
    SCREW
    • Require Quantity: 7
  • 13
    J0959359
    BRACKET, Body
    • Require Quantity: 2
  • 13
    J0972619
    RETAINER
    • Require Quantity: 4
  • 14
    J0931389
    BRACKET
  • 14
    J5751862
    BRACKET, Body
    • Require Quantity: 2
  • 15
    J4006829
    BOLT
    • Require Quantity: 32
  • 15
    J5758832
    HINGE
  • 16
    J4004866
    NUT
    • Require Quantity: 32
  • 16
    J4005466
    SCREW
    • Require Quantity: 2
  • 17
    J4004626
    BOLT
    • Require Quantity: 8
  • 18
    J4005895
    NUT
    • Require Quantity: 4
  • 20
    J0987145
    BOLT
    • Require Quantity: 8
  • 21
    J0271172
    NUT
    • Require Quantity: 8
  • 22
    Jeep J4004455
    J4004455
    SCREW
    • Require Quantity: 4
  • 23
    J4006651
    SCREW
  • 24
    J5752586
    KEY
    • Require Quantity: 2
  • 25
    S0131609
    NUT
    • Require Quantity: 2
  • 26
    J4006823
    WASHER
    • Require Quantity: 2
  • 27
    J5756162
    BRACKET
    • Require Quantity: 2
  • 28
    J4006883
    PIN
    • Require Quantity: 2
  • 29
    J5756174
    BRACKET, Right
    • BRACKET, Right
  • 29
    J5756175
    BRACKET, Right
    • BRACKET, Left
  • 30
    J5752542
    RAIL, Pickup Box Front
  • 31
    J5752558
    RAIL, Pickup Box Side, Right
    • RAIL, Pickup Box Side, Right
  • 31
    J5752559
    RAIL, Pickup Box Side, Right
    • RAIL, Pickup Box Side, Left
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1985 Jeep J10 parts. Parts like Box, Pickup are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
