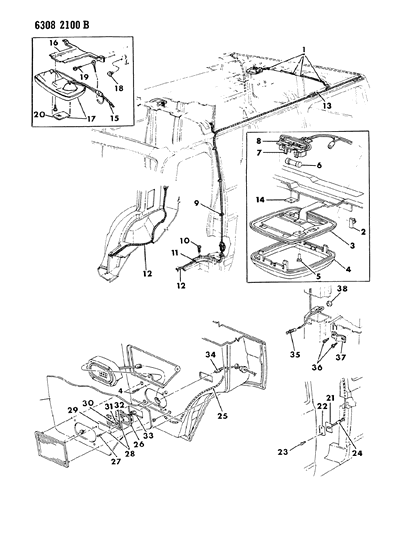

Diagram (1 of 1): ELECTRICAL LAMPS & WIRING-DOME-COURTESY-READING B & T MODELS

1986 Dodge Ram Van Lamps & Wiring - Dome - Courtesy - Reading Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4163112
WIRING, Body, Rear, Exc. Extended Body

3
3593541
BEZEL, Dome Lamp Frt. & Rear
- Require Quantity: 2
- Package Quantity: 1

4
3488936
LENS, Dome Lamp, Front & Rear
- Require Quantity: 2
- Package Quantity: 1

6
9431808
BULB, Dome Lamp

7
2822565
TERMINAL, Bulb Mtg.
- Require Quantity: 4

8
3488957
INSULATOR
- Require Quantity: 2

10
6032456
SCREW, (8-8 x 1/2)
- Require Quantity: 2

11
4085589
COVER, Rear Body Wiring to Flr. (used w/o Carpeting)

12
4114749
WIRING, Cab to Body Rear Wiring Extension

15
4114130
WIRING, Extension

16
4114131
BRACKET, Lamp Extension
- Require Quantity: 2

17
L758CB5
LAMP, Dome--Red
Blue
17
L758CM6
LAMP, Dome--Red
- LAMP, Dome--Red
17
L758EK1
LAMP, Dome--Red
- Light Almond

20
4397888
LENS
- Require Quantity: 4

21
4363031
HOUSING, w/Wiring (Stepwell)

22
4034226
LENS, Lamp

24
3513350
INSULATOR

26
3591126
BRACKET
- Require Quantity: 2

27
6032456
SCREW
- Require Quantity: 4

28
4363030
LAMP, Frt. Door Courtesy
- Require Quantity: 2

29
3488995
LENS, Frt. Door Courtesy Lamp
- Require Quantity: 2

30
3591596
TERMINAL, Bulb Mtg.
- Require Quantity: 2

31
9431808
BULB
- Require Quantity: 2

33
3513350
INSULATOR
- Require Quantity: 2

34
3513349
INSULATOR
- Require Quantity: 2

35
2822592
SWITCH, w/Sliding Cargo Door
w/Front Door
w/Hinged Cargo Door
w/Sliding Cargo Door
35
3730639
SWITCH, w/Sliding Cargo Door
- SWITCH, w/Sliding Cargo Door

37
2958815
BRACKET, Courtesy Lamp

38
2517675
PLUG

Genuine Mopar Parts, the Right Choice

MoparPartsGiant.com offers the wholesale prices for genuine 1986 Dodge Ram Van parts. Parts like Lamps & Wiring - Dome - Courtesy - Reading are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.7L, 8 Cyl 5.2L, 8 Cyl 5.9L. Transmission: 4-Speed Manual Transmission, Automatic Transmission.
