2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

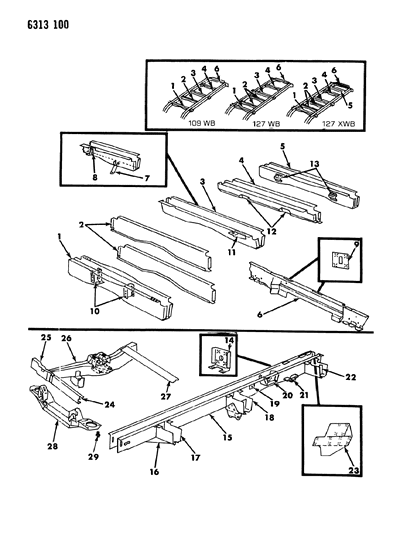

  • 1.FRAME & BUMPERS FRAME B BODY
    1986 Dodge Ram Van Frame Diagram 1

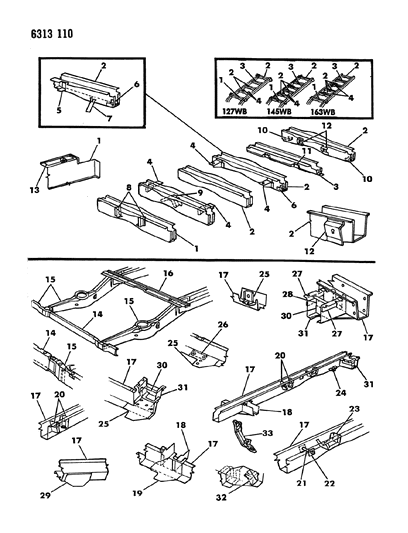

  • 2.FRAME & BUMPERS FRAME T BODY
    1986 Dodge Ram Van Frame Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4160027
    CROSSMEMBER, U/Body Trans. Mounting
  • 1
    4160027
    CROSSMEMBER, U/Body Transmission Mounting
  • 2
    4033814
    CROSSMEMBER, U/Body Floor Support
  • 2
    3739730
    CROSSMEMBER, U/Body Mounting
  • 3
    4432260
    CROSSMEMBER, U/Body Fuel Tank Mounting
  • 3
    4161804
    CROSSMEMBER, U/Body Rear Spring Front Mounting
  • 4
    3493605
    BRACKET, U/Body Crossmember Tail Pipe
  • 4
    4166764
    CROSSMEMBER, U/Body Fuel Tank Mounting
  • 5
    4117564
    BRACKET, Parking Brake Cable Clip Guide
  • 5
    3739730
    CROSSMEMBER, U/Body Fuel Tank Mounting Rear
  • 6
    4351114
    PANEL, U/Body Rear Sill, Inner
  • 6
    3739713
    REINFORCEMENT, Crossmember Rear Spring Front Mounting
    • Require Quantity: 2
  • 7
    4167561
    BRACKET, U/Body C/Member Brace Tube and Hose Union
  • 7
    4167561
    BRACKET, U/Body Crossmember Brace Tube and Hose Union
  • 8
    4117564
    BRACKET, Parking Brake Cable Clip Guide
  • 8
    2956060
    REINFORCEMENT, U/Body Transmission Mounting Crossmember
    • Require Quantity: 2
  • 9
    4080311
    REINFORCEMENT, Underbody Center Bearing Crossmember w/145 & 163 W.B.
  • 10
    3739713
    REINFORCEMENT, Crossmember Rear Spring Rear Mounting w/163 W.B.
    • Require Quantity: 2
  • 10
    2956060
    REINFORCMENT, U/Body Trans. Mtg.
    • Require Quantity: 2
  • 11
    4032956
    BRACKET, U/Body C/Member Tail Pipe
  • 12
    4033989
    BRACKET, U/Body Fuel Tank Mounting Rear Crossmember
    • Require Quantity: 2
  • 13
    4033989
    BRACKET, U/Body Fuel Tank Mtg. Rear Crossmember
    • Require Quantity: 2
  • 14
    4113517
    REINFORCEMENT, Radiator Grille Lower Support, Center
  • 15
    4322644
    EXTENSION, U/Body Long. Rail, Front, Right
    • EXTENSION, U/Body Long. Rail, Front, Right
  • 15
    4322645
    EXTENSION, U/Body Long. Rail, Front, Right
    • EXTENSION, U/Body Long. Rail, Front, Left
  • 15
    4262014
    RAIL
    • RAIL, U/Body Long., Right
  • 15
    4262015
    RAIL
    • RAIL, U/Body Long., Left
  • 15
    4278554
    RAIL
    • TIE PLATE, Floor Pan Rail (Not Illustrated)
    • Require Quantity: 2
  • 15
    4342452
    RAIL
    • W/127" Ext. W.B., Right
    • Fitting Vehicle Options: 2,3, B
  • 15
    4342453
    RAIL
    • W/127" Ext. W.B., Left
    • Fitting Vehicle Options: 2,3, B
  • 15
    4342454
    RAIL
    • W/127" W.B., Right
    • Fitting Vehicle Options: 1,2,3, B
  • 15
    4342455
    RAIL
    • W/127" W.B., Left
    • Fitting Vehicle Options: 1,2,3, B
  • 15
    4342456
    RAIL
    • W/109" W.B., Right
    • Fitting Vehicle Options: 1,2, B
  • 15
    4342457
    RAIL
    • W/109" W.B., Left
    • Fitting Vehicle Options: 1,2, B
  • 15
    4352243
    RAIL
    • REINFORCEMENT, U/Body Long. Rail Reinforcement to Side Panel Bracket, Left (Not Illustrated)
  • 16
    3824639
    PLATE, U/Body Trans, Mtg.
    • Require Quantity: 2
  • 16
    4352239
    REINFORCEMENT, U/Body Front Panel
  • 17
    4212254
    RAIL, U/Body Long.
    • w/127 W.B., Right
  • 17
    4212255
    RAIL, U/Body Long.
    • w/127 W.B., Left
  • 17
    4212256
    RAIL, U/Body Long.
    • w/145 W.B., Right
  • 17
    4212257
    RAIL, U/Body Long.
    • w/145 W.B., Left
  • 17
    4212258
    RAIL, U/Body Long.
    • w/163 W.B., Right
  • 17
    4212259
    RAIL, U/Body Long.
    • w/163 W.B., Left
  • 17
    3729363
    REINFORCEMENT, U/Body Rail to Side Panel Bracket
    • Require Quantity: 2
  • 18
    3729363
    REINFORCEMENT, Long. Rail to Side Panel Bracket
    • Require Quantity: 2
  • 18
    3899694
    SUPPORT, U/Body Rear Spring Front Mtg. Bracket ., Right
    • SUPPORT, U/Body Rear Spring Front Mtg. Bracket ., Right
  • 18
    3899695
    SUPPORT, U/Body Rear Spring Front Mtg. Bracket ., Right
    • SUPPORT, U/Body Rear Spring Front Mtg. Bracket ., Left
  • 19
    3824639
    PLATE, U/Body Transmission Mounting Crossmember to Long. Rail
    • Require Quantity: 2
  • 20
    4083996
    REINFORCEMENT, Long. Rail Rear Spring Front Bracket Mounting, Front or Rear
    • w/145 W.B., Right
  • 20
    4083997
    REINFORCEMENT, Long. Rail Rear Spring Front Bracket Mounting, Front or Rear
    • w/145 W.B., Left
  • 20
    4087430
    REINFORCEMENT, Long. Rail Rear Spring Front Bracket Mounting, Front or Rear
    • w/127 W.B., Right
  • 20
    4087431
    REINFORCEMENT, Long. Rail Rear Spring Front Bracket Mounting, Front or Rear
    • w/127 W.B., Left
  • 20
    4033805
    REINFORCEMENT, U/Body Rail Rear Axle Bumper
    • Require Quantity: 2
  • 21
    4351260
    BRACKET, U/Body Long. Rail Tail Pipe Hanger
    • (Up to 1-6-87)
  • 21
    4432986
    BRACKET, U/Body Long. Rail Tail Pipe Hanger
    • (After 1-6-87)
  • 21
    2956824
    SLEEVE, U/Body Rear Shock Absorber Mounting
    • Require Quantity: 2
  • 22
    3829389
    SUPPORT, U/Body Rear Spring Mtg. Bracket
    • Left
  • 22
    4038464
    SUPPORT, U/Body Rear Spring Mtg. Bracket
    • Right
  • 23
    3739793
    REINFORCEMENT, U/Body Long. Rail Rear Axle Bumper w/127 W.B.
    • T-PLATE, U/Body Long. Rail Rear Axle Bumper w/145 & 163 W.B.
    • Require Quantity: 2
  • 23
    4033805
    REINFORCEMENT, U/Body Long. Rail Rear Axle Bumper w/127 W.B.
    • REINFORCEMENT, U/Body Long. Rail Rear Axle Bumper w/127 W.B.
    • Require Quantity: 2
  • 24
    4351260
    BRACKET, U/Body Long. Rail Tail Pipe Hanger
    • (Up to 1-6-87)
  • 24
    4432986
    BRACKET, U/Body Long. Rail Tail Pipe Hanger
    • (After 1-6-87)
  • 24
    4113517
    REINFORCEMENT, Grille Lower Support Center
  • 25
    4112918
    REINFORCEMENT, End, Right
    • REINFORCEMENT, End, Right
  • 25
    4112919
    REINFORCEMENT, End, Right
    • REINFORCEMENT, End, Left
  • 26
    4404156
    EXTENSION, U/Body Long. Rail, Front, Right
    • EXTENSION, U/Body Long. Rail, Front, Right
  • 26
    4404157
    EXTENSION, U/Body Long. Rail, Front, Right
    • EXTENSION, U/Body Long. Rail, Front, Left
  • 26
    4083516
    T-PLATE, U/Body Long. Rail Rear Spring Rear Mounting w/163 W.B.
    • Require Quantity: 2
  • 27
    4262123
    REINFORCEMENT, U/Body Front Panel
    • Up To Jan. 21, 1986
  • 27
    4352239
    REINFORCEMENT, U/Body Front Panel
    • After Jan. 21, 1986
  • 28
    4322253
    CROSSMEMBER, Front Suspension and Engine Support
  • 29
    2956498
    PLATE, U/Body Bearing Crossmember to Long. Rail w/145 & 163 W.B.
    • Require Quantity: 2
  • 29
    3636980
    SCREW and WASHER
    • BRACKET, U/Body Rear Spring Front Mounting Support, Right
  • 29
    3729364
    SCREW and WASHER
    • REINFORCEMENT, U/Body Rear Spring Rear Mounting Bracket Support, Right
  • 29
    3729365
    SCREW and WASHER
    • REINFORCEMENT, U/Body Rear Spring Rear Mounting Bracket Support, Left
  • 29
    4089339
    SCREW and WASHER
    • BRACKET, U/Body Long Rail Extension Steering Gear Mounting
  • 29 Dodge 6030846
    6030846
    SCREW and WASHER
    • SCREW and WASHER
    • Require Quantity: 8
    • Package Quantity: 1
  • 30
    3729364
    REINFORCEMENT, U/Body Rear Spring Rear Mounting Bracket Support, Right
    • REINFORCEMENT, U/Body Rear Spring Rear Mounting Bracket Support, Right
  • 30
    3729365
    REINFORCEMENT, U/Body Rear Spring Rear Mounting Bracket Support, Right
    • REINFORCEMENT, U/Body Rear Spring Rear Mounting Bracket Support, Left
  • 31
    3829389
    SUPPORT, U/Body Rear Spring Rear Mounting Bracket, Right
    • Left
  • 31
    4038464
    SUPPORT, U/Body Rear Spring Rear Mounting Bracket, Right
    • SUPPORT, U/Body Rear Spring Rear Mounting Bracket, Right
  • 32
    4112019
    BRACKET, U/Body Park Brake Cable Anchor, Front
  • 33
    2956048
    CROSSMEMBER, Front Suspension and Engine Support
    • BRACKET, U/Body Long. Rail Reinforcement to Side Panel, Left
  • 33
    3899694
    CROSSMEMBER, Front Suspension and Engine Support
    • SUPPORT, U/Body Rear Spring Front Mounting Bracket, Right
  • 33
    3899695
    CROSSMEMBER, Front Suspension and Engine Support
    • SUPPORT, U/Body Rear Spring Front Mounting Bracket, Left
  • 33
    4037596
    CROSSMEMBER, Front Suspension and Engine Support
    • BRACKET, Frame Rear Spring, Front
    • Require Quantity: 2
  • 33
    4089339
    CROSSMEMBER, Front Suspension and Engine Support
    • BRACKET, U/Body Long. Rail Extension Steering Gear Mounting
  • 33
    4112918
    CROSSMEMBER, Front Suspension and Engine Support
    • SUPPORT, U/Body Long. Rail Extension Front Crossmember, Right
  • 33
    4112919
    CROSSMEMBER, Front Suspension and Engine Support
    • SUPPORT, U/Body Long. Rail Extension Front Crossmember, Left
  • 33
    4117553
    CROSSMEMBER, Front Suspension and Engine Support
    • BRACE, Frame Rear Spring Front Bracket, Left
  • 33
    4228398
    CROSSMEMBER, Front Suspension and Engine Support
    • BRACKET, Frame Rear Spring, Rear w/163 W.B., Right
  • 33
    4228399
    CROSSMEMBER, Front Suspension and Engine Support
    • BRACKET, Frame Rear Spring, Rear w/163 W.B., Left
  • 33
    4322253
    CROSSMEMBER, Front Suspension and Engine Support
    • CROSSMEMBER, Front Suspension and Engine Support
