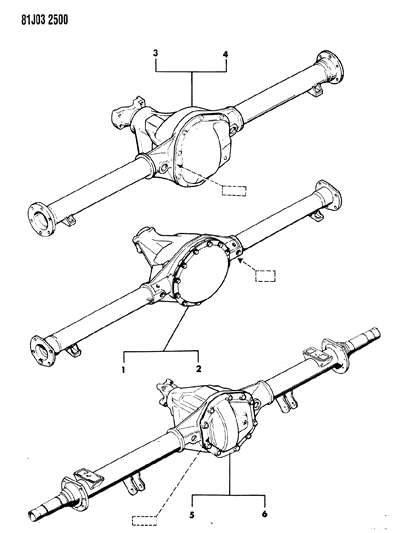

Diagram (1 of 1): REAR AXLE AXLE ASSEMBLY, REAR AMC LARGE, DANA 44, DANA 60 SJ CHEROKEE, SJ WAGONEER, J10, J20

1986 Jeep Grand Wagoneer Axle Assembly, Rear Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
J5361201
AXLE ASSEMBLY, AMC Large Without Locking Differential
1981-84: 2.73 Ratio Stamped AA or D
Fitting Vehicle Options: 15,16,18
1
J5361203
AXLE ASSEMBLY, AMC Large Without Locking Differential
- 1981-84: 3.31 Ratio Stamped B or BB
- Fitting Vehicle Options: 15,16,18
1
J5361208
AXLE ASSEMBLY, AMC Large Without Locking Differential
- 1981-83: 3.31 Ratio Stamped B or BB
- Fitting Vehicle Options: 17
1
J5361211
AXLE ASSEMBLY, AMC Large Without Locking Differential
- 1981-86: 2.73 Ratio Stamped AA or D
- Fitting Vehicle Options: 25,26
1
J5361213
AXLE ASSEMBLY, AMC Large Without Locking Differential
- 1981-86: 3.31 Ratio Stamped B or BB
- Fitting Vehicle Options: 25,26
1
J5365158
AXLE ASSEMBLY, AMC Large Without Locking Differential
- 1985-86: 2.73 Ratio Stamped D
- Fitting Vehicle Options: 15
1
J5365159
AXLE ASSEMBLY, AMC Large Without Locking Differential
- 1985-86: 3.31 Ratio Stamped B
- Fitting Vehicle Options: 15

2
J5361202
AXLE ASSEMBLY, AMC Large With Locking Differential
1981-84: 2.73 Ratio Stamped DD
Fitting Vehicle Options: 15,16,18
2
J5361204
AXLE ASSEMBLY, AMC Large With Locking Differential
- 1981-84: 3.31 Ratio Stamped BB or CC
- Fitting Vehicle Options: 15,16,18
2
J5361209
AXLE ASSEMBLY, AMC Large With Locking Differential
- 1981-83: 3.31 Ratio Stamped BB or CC
- Fitting Vehicle Options: 17
2
J5361212
AXLE ASSEMBLY, AMC Large With Locking Differential
- 1981-86: 2.73 Ratio Stamped DD
- Fitting Vehicle Options: 25,26
2
J5361214
AXLE ASSEMBLY, AMC Large With Locking Differential
- 1981-86: 3.31 Ratio Stamped BB or CC
- Fitting Vehicle Options: 25,26
2
J5365160
AXLE ASSEMBLY, AMC Large With Locking Differential
- 1985-86: 2.73 Ratio Stamped DD
- Fitting Vehicle Options: 15
2
J5365161
AXLE ASSEMBLY, AMC Large With Locking Differential
- 1985-86: 3.31 Ratio Stamped BB
- Fitting Vehicle Options: 15

3
83503089
AXLE ASSEMBLY, DANA Model 44 Without Locking Differential
1986: 3.31 Ratio Tagged 8953004030
Fitting Vehicle Options: 15
3
83503092
AXLE ASSEMBLY, DANA Model 44 Without Locking Differential
- 1986: 2.73 Ratio Tagged 8953004028
- Fitting Vehicle Options: 15
3
83503096
AXLE ASSEMBLY, DANA Model 44 Without Locking Differential
- 1986: 3.31 Ratio Tagged 8953004034
- Fitting Vehicle Options: 26
3
83503098
AXLE ASSEMBLY, DANA Model 44 Without Locking Differential
- 1986: 2.73 Ratio Tagged 8953004032
- Fitting Vehicle Options: 26

4
83503093
AXLE ASSEMBLY, DANA Model 44 With Locking Differential
1986: 3.31 Ratio Tagged 8953004031
Fitting Vehicle Options: 15
4
83503099
AXLE ASSEMBLY, DANA Model 44 With Locking Differential
- 1986: 3.31 Ratio Tagged 8953004035
- Fitting Vehicle Options: 26

5
J8131928
AXLE ASSEMBLY Locking Differential
AXLE ASSEMBLY, DANA Model 60 Without Locking Differential

6
J8131927
AXLE ASSEMBLY, DANA Model 60 With Locking Differential
1981-86: 3.73 Ratio Tagged 5359532, 5363418 or 8953004086
6
J8131931
AXLE ASSEMBLY, DANA Model 60 With Locking Differential
- 1981-86: 4.88 Ratio Tagged 5359528, 5363419 or 8953004088
