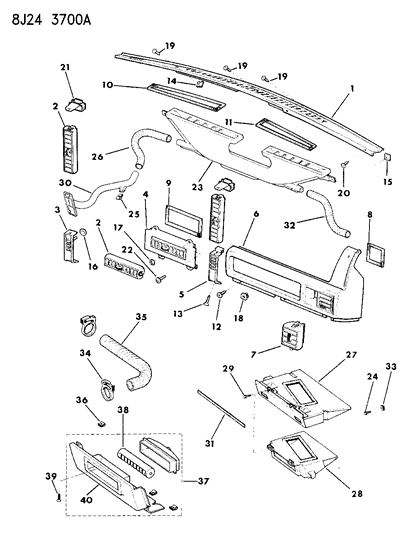

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR DUCTS AND OUTLETS CHEROKEE, WAGONEER, COMANCHE
1988 Jeep Wagoneer Air Ducts & Outlets Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    55011119
    BEZEL, Defroster (Paint as Required)
  • 2
    55004027
    OUTLET, Air
    • Require Quantity: 3
  • 3
    55004025
    BEZEL, Side Defrostor
  • 4
    55003165
    OUTLET, Air
  • 5
    55004023
    BEZEL, Center Lower
  • 6
    55011112
    BEZEL, Lower Right
    • 1988-89
  • 6
    5AG72JY6
    BEZEL, Lower Right
    • 1990 (Paint as Required)
  • 7
    55004026
    OUTLET, Air
  • 8
    55002875
    GASKET
  • 9
    55003880
    GASKET
  • 10
    55002424
    SEAL
  • 11
    55002425
    SEAL
  • 13
    J4005942
    SCREW
  • 14
    34201497
    NUT
    • Require Quantity: 4
  • 15
    J4004223
    NUT
    • Require Quantity: 8
  • 16
    11501932
    NUT
    • Require Quantity: 2
  • 17
    J4000459
    NUT
    • Require Quantity: 4
  • 18
    Jeep J4004689
    J4004689
    NUT
    • Require Quantity: 2
  • 19
    11500056
    SCREW
    • Require Quantity: 3
  • 20
    11501119
    SCREW
    • Require Quantity: 2
  • 21
    55002603
    RETAINER
    • Require Quantity: 2
  • 22
    34201292
    SCREW
    • Require Quantity: 4
  • 23
    55000364
    DUCT, Defroster
  • 24
    34202344
    SCREW
    • Require Quantity: 2
  • 25
    J4000383
    NUT
  • 26
    55000368
    DUCT, Side Defroster
    • 1987-89
  • 26
    55005896
    DUCT, Side Defroster
    • 1990
  • 27
    56000610
    DUCT, Center Floor w/o Floor Console
  • 29
    J4489487
    SCREW
    • Require Quantity: 2
  • 31
    56001218
    OVERLAY
  • 32
    55005896
    DUCT, Side Defroster
  • 33
    11500656
    NUT
    • Require Quantity: 2
  • 34
    J4006818
    CLAMP
    • Require Quantity: 2
  • 35
    55000368
    TUBE, w/Factory Installed Air (part modification required)
  • 36
    11500656
    NUT
    • Require Quantity: 4
  • 37
    55011090
    BEZEL, Lower Left
    • 1988-89 (Paint as Required)
  • 37
    5DF32MY6
    BEZEL, Lower Left
    • 1990
  • 38
    55000929
    OUTLET, Air
  • 39
    34201361
    SCREW
  • 40
    5AD44JY6
    BEZEL, Outlet
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1988 Jeep Wagoneer parts. Parts like Air Ducts & Outlets are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.5L, 6 Cyl 4.0L, 6 Cyl 4.2L. Transmission: 4-Speed Automatic Transmission, 4-Speed Manual Transmission, 5-Speed Automatic Transmission, 5-Speed Manual Transmission.
