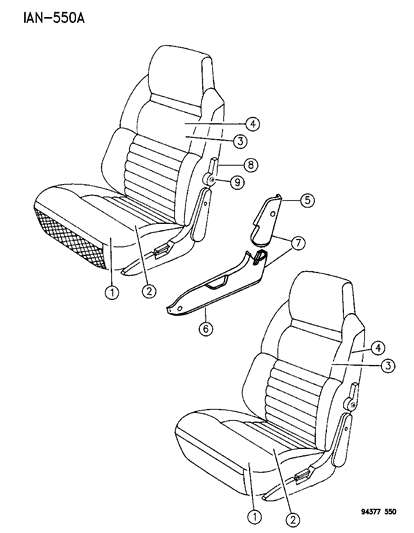

Diagram (1 of 1): INTERIOR TRIM DAKOTA P-UP SEAT--FRONT BUCKET N BODY TRIM CODE J5
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
JS26PB7CUSHION, w/Spring, Frame, Pad and Cover- Blue, (J5B7), Right (1994,95)
1
JS26PDSCUSHION, w/Spring, Frame, Pad and Cover- Quartz, (J5D5), Right (1994,95)
1
JS26PFFCUSHION, w/Spring, Frame, Pad and Cover- Driftwood, (J5F6), Right (1994,95)
1
JS26PMACUSHION, w/Spring, Frame, Pad and Cover- Red, (J5M6), Right (1994,95)
1
JS26SD3CUSHION, w/Spring, Frame, Pad and Cover- Silver, (J5D5), Right (1996)
1
JS26SF5CUSHION, w/Spring, Frame, Pad and Cover- Tan, Right, (J5F6) (1996)
1
JS26SP8CUSHION, w/Spring, Frame, Pad and Cover- Blue Spruce, (J5P8), Right (1996)
1
JS27PB7CUSHION, w/Spring, Frame, Pad and Cover- Blue, (J5B7), Left (1994,95)
1
JS27PDSCUSHION, w/Spring, Frame, Pad and Cover- Quartz, (J5D5), Left (1994,95)
1
JS27PFFCUSHION, w/Spring, Frame, Pad and Cover- Driftwood, (J5F6), Left (1994,95)
1
JS27PMACUSHION, w/Spring, Frame, Pad and Cover- Red, (J5M6), Left (1994,95)
1
JS27SD3CUSHION, w/Spring, Frame, Pad and Cover- Silver, (J5D5), Left (1996)
1
JS27SF5CUSHION, w/Spring, Frame, Pad and Cover 1
JS27SP8CUSHION, w/Spring, Frame, Pad and Cover- Blue Spruce, (J5P8), Left (1996)
2
JS28PB7COVER, Cushion- Blue, (J5B7), Right (1994,95)
2
JS28PDSCOVER, Cushion- Quartz, (J5D5), Right (1994,95)
2
JS28PFFCOVER, Cushion- Driftwood, (J5F6), Right (1994,95)
2
JS28PMACOVER, Cushion- Red, (J5M6), Right (1994,95)
2
JS28SD3COVER, Cushion- Silver, (J5D5), Right (1996)
2
JS28SF5COVER, Cushion- Tan, Right, (J5F6) (1996)
2
JS28SP8COVER, Cushion- Blue Spruce, (J5P8), Right (1996)
2
JS29PB7COVER, Cushion- Blue, (J5B7), Left (1994,95)
2
JS29PDSCOVER, Cushion- Quartz, (J5D5), Left (1994,95)
2
JS29PFFCOVER, Cushion- Driftwood, (J5F6), Left (1994,95)
2
JS29PMACOVER, Cushion- Red, (J5M6), Left (1994,95)
2
JS29SD3COVER, Cushion- Silver, (J5D5), Left (1996)
2
2
JS29SP8COVER, Cushion- Blue Spruce, (J5P8), Left (1996)
3
JS18PB7BACK, w/Spring, Frame, Pad and Cover- Blue, (J5B7), Right (1994,95)
3
JS18PDSBACK, w/Spring, Frame, Pad and Cover- Quartz, (J5D5), Right (1994,95)
3
JS18PFFBACK, w/Spring, Frame, Pad and Cover- Driftwood, (J5F6), Right (1994,95)
3
JS18PMABACK, w/Spring, Frame, Pad and Cover- Red, (J5M6), Right (1994,95)
3
JS18SD3BACK, w/Spring, Frame, Pad and Cover- Silver, (J5D5) (1996, Right)
3
JS18SF5BACK, w/Spring, Frame, Pad and Cover- Tan, (J5F6) (1996, Right)
3
JS18SP8BACK, w/Spring, Frame, Pad and Cover- Blue Spruce, (J5P8) (1996, Right)
3
JS19PB7BACK, w/Spring, Frame, Pad and Cover- Blue, (J5B7), Left (1994,95)
3
JS19PDSBACK, w/Spring, Frame, Pad and Cover- Quartz, (J5D5), Left (1994,95)
3
JS19PFFBACK, w/Spring, Frame, Pad and Cover- Driftwood, (J5F6), Left (1994,95)
3
JS19PMABACK, w/Spring, Frame, Pad and Cover- Red, (J5M6), Left (1994,95)
3
PF89SD3BACK, w/Spring, Frame, Pad and Cover- Silver, (J5D5) (1996, Left)
3
PF89SF5BACK, w/Spring, Frame, Pad and Cover 3
PF89SP8BACK, w/Spring, Frame, Pad and Cover- Blue Spruce, (J5P8) (1996, Left)
4
JV01PB7COVER, Back- Blue, (J5B7) (1994,95)
- Require Quantity: 2
4
JV01PDSCOVER, Back- Quartz, (J5D5) (1994,95)
- Require Quantity: 2
4
JV01PFFCOVER, Back- Driftwood, (J5F6) (1994,95)
- Require Quantity: 2
4
JV01PMACOVER, Back- Red, (J5M6) (1994,95)
- Require Quantity: 2
4
JV01SD3COVER, Back- Silver, (J5D5) (1996)
- Require Quantity: 2
4
JV01SF5COVER, Back- Tan, (J5F6) (1996)
- Require Quantity: 2
4
JV01SP8COVER, Back- Blue Spruce, (J5P8) (1996)
- Require Quantity: 2
5
5BF60KM6SHIELD, Front Seat Back 5
5BF60PB7SHIELD, Front Seat Back 5
5
5BF60PF6SHIELD, Front Seat Back 5
5
5BF60SF5SHIELD, Front Seat Back 5
5BF60SP8SHIELD, Front Seat Back 5
5BF61KM6SHIELD, Front Seat Back 5
5BF61PB7SHIELD, Front Seat Back 5
5BF61PD5SHIELD, Front Seat Back 5
5BF61PF6SHIELD, Front Seat Back 5
5BF61SD3SHIELD, Front Seat Back 5
5BF61SF5SHIELD, Front Seat Back 5
5BF61SP8SHIELD, Front Seat Back- Blue Spruce (1996)
Blue spruce (1996)
6
S458PF6SHIELD, Front Seat Cushion (P.A.R.)- Driver Seat (INNER)
Passenger Seat (OUTER)
6
S765JV4SHIELD, Front Seat Cushion (P.A.R.)- Driver Seat (OUTER)
Passenger Seat (INNER)
9
6501576
SCREW, M4x0.7x25.00
