Chrysler 5274500AB Bracket-Engine Mount

You can Select Your Vehicle to check if 5274500AB fits your vehicle.

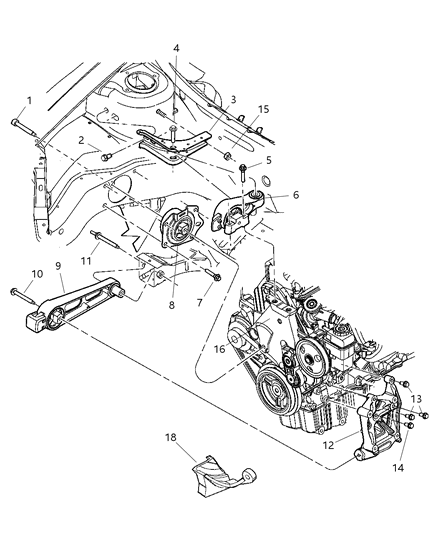

These vehicles employ two load-carrying engine mounting arms at the right and left ends, and two torque struts, upper and lower, and so adjustment is necessary when any part is replaced, or if a torque strut bolt is loosened. Engine mounts are considered service-free parts as a rule, though any damaged or worn ones should be replaced at once to avoid harm to the driveline. During the check the engine has to be lifted a little off the mounts, while the mounts themselves have to be inspected for such things as cracks, hardening, or separation from metal backing; if there is even a hint of relative movement, then the fasteners of the mount are to be tightened. That is the reason why rubber preservative can be applied in order to prolong its life expectancy because of the possibility of fast deterioration. For replacement, unclasp the negative battery terminal, jack up the vehicle safely and unscrew the air filter housing. The left engine mount means that bolts which fix the Power Distribution Center and the battery tray have to be taken off; besides, it is high time to lift the transaxle in order to shift its weight before leaving the mount. The right engine mount is harder to get at requiring the removal of the engine/transaxle assembly or if that is not possible, supporting it from beneath. The position of the right engine mount should also be marked prior to being removed and it should be properly fitted featuring an application of thread locking compound. For the upper torque strut you have to remove bolts from the shock tower bracket and engine mount bracket and in the case of the lower torque strut the splash shield and pencil strut has to be removed in addition to the detachment of the crossmember. Subsequent to its installation, the engine torque strut adjustment can be done by removing the attachment bolts, placing a floor jack on the mounted engine and when a upward force is applied to it should ensure that the engine is well sited before tightening the bolts.

These vehicles have two load carrying mounts and two torque struts and any change in the two will need adjustment. Torque struts both upper and lower have to be adjusted concurrently so as to get the right positioning of the engine, and this is required if at all a torque strut bolt has been loosened. Engine mounts generally do not require any attention but any damaged or badly worn mounts should be replaced to avoid damage to the rest of drive line parts. While inspecting the mount, the engine must be lifted a little to free the mount from some of its weight so as to physically appear for crack in the rubber or signs of separation. Any movement between the mount plates and the engine/frame, and the engine should be lowered and the mount fasteners tightened. Antirust can be used in order to prevent or delay the rate of the deterioration of rubber. For replacement, the negative batter terminal has to be removed and the vehicle has to be properly placed and supported on jack stands. Off comes then wheels, specific to momentum, and splash; the air filter housing and battery tray is also to be removed. A floor jack should be placed under the trans axle in order to take weight off a left engine mount, which, in turn, can be unbolted from the vehicle. The right engine mount also needs the position to be marked before removal and while installing it should be done in the reverse manner with the use of the thread locking compound on the bolts. The upper part of the torque strut is removed from the shock tower bracket and the engine mount bracket while reassembly is done the reverse order, with a torque strut adjustment done as well. By the same process as earlier, the lower torque strut is also replaced with the same requiring the adjustment. For the torque strut adjustment, the connection of the negative terminal of the battery is removed while the car is raised firmly. The upper and lower torque strut attachment bolts are then slackened and a floor jack is used to jack it up to enable the engine to rotate to the rear while checking measures between two points whereby they should be 4.70 inches apart. After getting positioned correctly, the torque strut bolts are then tightened and unscrewing the floor jack, marks the end of the installation process.
