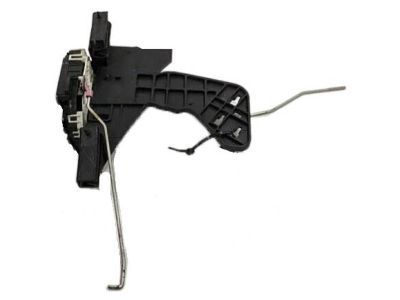

Chrysler 4589422AF Front Right (Passenger-Side) Door Lock Actuator

You can Select Your Vehicle to check if 4589422AF fits your vehicle.

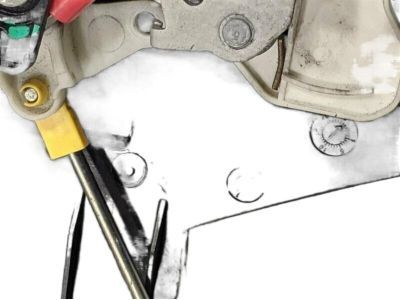

When installing a new latch, simply close the window and then take off the door trim panel and the watershield. First, if this is the earlier model, unscrew two Torx-head link rods from the latch, then remove the three Torx-head mounting screws if they are overtightened, using an impact-type screwdriver if possible. Closely unscrew the latch then place the new latch and screw it in tightly until they are tightly fixed. Connect the link rods to the latch and ensure that the door will close well, if the latch is an issue, engage the screws and adjust the latch until the door closes properly with the handle flat. After that tighten the linkage adjusting screw with a 5/32-inches hex-head wrench through the adjustment hole, after that, move the squab up in the slot to remove extra Loose from linkage. For the lock cylinder of the outside door handle, it is necessary to disconnect the connecting link and then push the retainer of the key lock cylinder with use of a screwdriver to pull the lock cylinder out of the door and the process of installation is opposite to the mentioned procedure. To remove the outside handle, push down on the end of the remote control link which disengages the latch, unscrew the two nuts on the mounting plate and remove the handle from the door. Last but not the least, position the handle, connect the link and fix the nuts properly on to the Link fixed on Link rod.

Remove the cover plate first by removing the door trim panel. For crew cab models, also remove the rear speaker and access panel from the back of the door. In case of club cab models, remove both little access plugs situated near the top middle part of the door. Then release glass clips at its bottom edge from window regulator lift plates. Lift up glass to full closed position and tape across top of door to hold in place. At last, disconnect main wiring connector in this door and pull rubber wiring grommet off this door jamb. Using a small screwdriver gently press lock tabs inward until they are flush and coax connector out of hole in metal. The control rods will be disconnected after removing the access plate from outside handle. To get wire harness loose from front edge, take out two screws on it. The screw on lower belt channel is removed in standard cab models only .Door latch screws should come off from edge of door as well ,remove bolts around perimeter of carrier plate then lift it off .After removal of carrier plate, proceed similarly for removing latch and disconnecting wiring from door latch .Detach bracket and take off latch; it is removed by doing so.Step2:To remove the outside handle, you must first unscrew the bolts on the inner side, then gently pull the handle outward.Step3:Disconnect 2 control rods from handle, unscrew inside bolts through inner side then remove outer handle.To have inside handle out you need to pull trims panel down that will let you detach control rod away from these handles.Mounting screw at top hinge can be removed.

The hinges and latch assemblies should be lubricated once every 3000 miles or every three months.

Once every 3000 miles or every three months.

To remove the inside handle, remove the door trim panel and disconnect the control rod from the handle. Remove the mounting screw from the top of the handle hinge, then remove the handle. To remove the lock cylinder, remove the outside door handle and pull the lock cylinder from the inside of the door handle.

They should be lubricated with spray-on graphite lubricant.

Remove the access plate and disconnect the control rods from the outside handle.

They should be lubricated with a thin coat of grease.

Detach the clips at the bottom edge of the glass from the window regulator lift plates. Raise the glass to the top and secure it in place using tape strips over the top of the door. Disconnect the main wiring connector inside the door and pull the rubber wiring grommet off of the door jamb. Push the lock tabs in until they're flush using a small screwdriver and gently manipulate the connector out of the hole in the metal.

Remove the access plate and disconnect the control rods from the outside handle.

Once every 3000 miles or every three months.

A few drops of light oil or lock lubricant.
