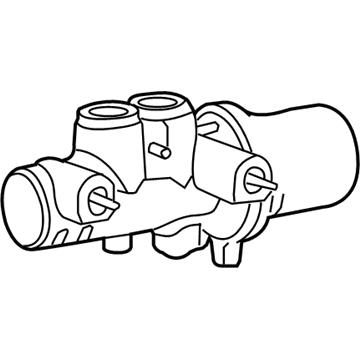

Chrysler 5189175AA Brake Mastr Cylinder

You can Select Your Vehicle to check if 5189175AA fits your vehicle.

It is necessary to determine which system is on the vehicle for part identification and torque specifications.

To remove the master cylinder, disconnect the cable(s) from the negative battery terminal(s), depress the brake pedal several times to remove all vacuum from the power brake booster, remove the master cylinder access cover in the cowl, clean the master cylinder and reservoir thoroughly with brake cleaner, remove as much fluid as possible from the reservoir with a syringe, unplug the electrical connector for the brake fluid level warning switch, place rags under the fittings, loosen the fittings at the ends of the brake lines where they enter the master cylinder using a flare-nut wrench, carefully move the brake lines away from the master cylinder, plugging the ends to prevent contamination, remove the master cylinder mounting nuts, and pull the master cylinder off the studs.

Any spilled brake fluid should be cleaned up immediately and the area should be washed with large amounts of water.
