Chrysler 5136022AH Fuel Pump Module/Level Unit

You can Select Your Vehicle to check if 5136022AH fits your vehicle.

To replace the left fuel level sensor and fuel pump module, start by removing the module and cutting the wiring harness clip. Loosen the two retaining clips and pull out the sensor. For the right fuel level sensor, fuel pressure regulator, and fuel filter module, remove the module and disconnect the sensor.

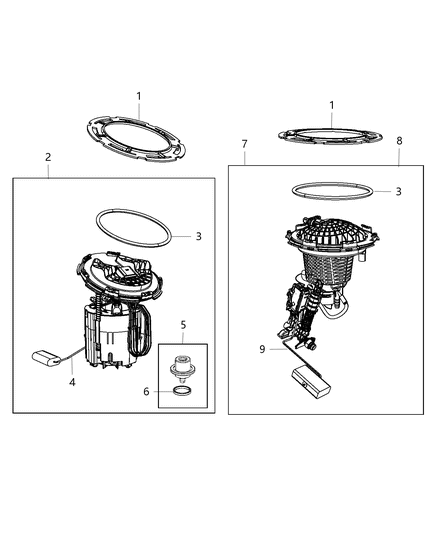

The module includes the fuel pump inlet strainer, pump, fuel level sensor, and fuel pressure regulator.

To remove the fuel pump/fuel level sensor module, the fuel system pressure must be relieved, the negative battery terminal cable must be disconnected, and the fuel tank must be drained to under 5/8-full. The rear seat cushion is removed, and the foam pad covering the module is pulled back. The plastic access cover is carefully lifted off, and the electrical connector is disconnected. The area surrounding the mounting flange is cleaned, and the lock-ring is loosened and unscrewed. The module is lifted up, and the electrical connectors and fuel supply line fitting are disconnected. The residual fuel is drained, and the module is carefully removed from the fuel tank.

Start by removing the module. Carefully cut the wiring harness clip and disengage the fuel level sensor wires from the clip. Then, loosen the two retaining clips and pull the fuel level sensor out of the fuel pump module. After installation, turn the ignition switch to On to activate the fuel pump and build up fuel pressure in the fuel lines.
