Chrysler 5136023AB Fuel Pump/Level Unit Module

2006-2007 Chrysler 300 5136023AB

Customer Questions & Expert Answers (10)

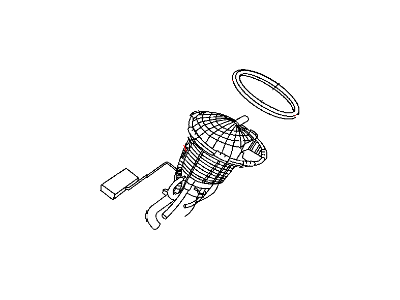

Mopar 5136023AB Fuel Pump/Level Unit Module
Mopar 5136023AB Fuel Pump/Level Unit Module
Mopar 5136023AB Fuel Pump/Level Unit Module
  • Part Description
    Module-Fuel Pump/Level Unit
  • Replaced By
    5136023AF
  • Manufacturer
    Mopar
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • 5136023AB Fuel Pump/Level Unit Module is Ref No. 2 in the diagram below

    2007 Dodge Magnum Fuel Pump/Level Unit Module Diagram for 5136023AB
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Chrysler
    Manufacturer Part Number5136023AB
    Part DescriptionModule-Fuel Pump/Level Unit
    Item Dimensions8.0 x 11.3 x 14.4 inches
    Item Weight3.00 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerMopar
    SKU5136023AB
    WarrantyThis genuine Mopar part is guaranteed by Mopar's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    2006-2007 Chrysler 3006 Cyl 2.7L, 6 Cyl 3.5L, 8 Cyl 5.7L, 8 Cyl 6.1LBase RWD, C AWD, C RWD, C SRT8 RWD, Touring AWD, Touring RWD

  • Customer Questions & Expert Answers

    Q:
    Will this fit my truck? Posted by MoparPartsGiant Specialist
    A:
    You can Select Your Vehicle to check if 5136023AB fits your vehicle.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you replace the right fuel level sensor, fuel pressure regulator, and fuel filter module for the 2006 Chrysler 300? Posted by Customer
    A:
    Remove the module and detach the fuel level sensor. Cut the wire ties and disconnect the ground wires. Remove the fuel level sensor. If you're only replacing the fuel pressure regulator, you're done. To remove the regulator from the fuel filter module, pull out the retaining clip. Check the condition of the regulator's O-rings. If you're replacing the fuel filter module, remove the ground ring and install it correctly in the new module. Finally, installation is the reverse of removal.
    Posted by MoparPartsGiant Specialist
    Q:
    Where is the fuel pump located for the 2006 Chrysler 300? Posted by Customer
    A:
    The fuel pump is located inside the fuel tank.
    Posted by MoparPartsGiant Specialist
    Q:
    What is the procedure for draining the fuel tank to a certain level for the 2010 Chrysler 300? Posted by Customer
    A:
    To drain the fuel tank to under 5/8-full:Route a hose through the fuel filler neck hose.Use a hard nylon tube with a 30-degree cut on the end to push open the check valve in the fuel filler neck.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Fuel Pump
    Q:
    How do you replace the left fuel level sensor and fuel pump module for the 2008 Dodge Charger? Posted by Customer
    A:
    Start by removing the module. Then, carefully cut the wiring harness clip and disconnect the fuel level sensor wires. Loosen the two retaining clips and pull out the fuel level sensor. You can replace either the fuel level sensor unit or the fuel pump module.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Fuel Pump
    Q:
    What steps should be taken during reinstallation for the 2007 Dodge Charger? Posted by Customer
    A:
    During reinstallation:Ensure that the flange orientation is correct based on the square tab on its circumference.Carefully reattach the electrical connectors and the fuel lines.Follow the reverse order of removal for all components.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Fuel Pump
    Q:
    What should be checked if the fuel pump does not come on for the 2008 Dodge Charger? Posted by Customer
    A:
    If the fuel pump does not come on, check the fuel pump fuse and relay, as well as the wiring.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Fuel Pump
    Q:
    Where is the fuel pump located for the 2007 Dodge Magnum? Posted by Customer
    A:
    The fuel pump is located inside the fuel tank.
    Posted by MoparPartsGiant Specialist
    Q:
    How do you replace the right fuel level sensor, fuel pressure regulator, and fuel filter module for the 2005 Dodge Magnum? Posted by Customer
    A:
    Remove the module and detach the fuel level sensor. Cut the wire ties and disconnect the ground wires. Remove the fuel level sensor. If you're only replacing the fuel pressure regulator, you're done. To remove the regulator from the fuel filter module, pull out the retaining clip. Check the condition of the regulator's O-rings. If you're replacing the fuel filter module, remove the ground ring and install it correctly in the new module. Finally, installation is the reverse of removal.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Fuel Pump
    Q:
    How should you handle removing the fuel filter/fuel pressure regulator/fuel level sensor module for the 2006 Dodge Magnum? Posted by Customer
    A:
    To remove the fuel filter/fuel pressure regulator/fuel level sensor module:Lift up the mounting flange for the module.Carefully remove the module from the fuel tank, ensuring not to damage the electrical harness or fuel return lines.
    Posted by MoparPartsGiant Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Mopar Part 5136023AB, the Right Choice

To ensure reliability, purchase Mopar part # 5136023AB Fuel Pump/Level Unit Module. It is sometimes referred to as Chrysler Fuel Pump, Chrysler Fuel Sending Unit. For Mopar owners with dreams of keeping their vehicles running in prime condition, choosing OEM parts is a smart decision. Meticulously crafted, these parts follow strict factory specifications and are manufactured in top-notch facilities with advanced technologies. Furthermore, they undergo rigorous testing to ensure durability and safety, making them a reliable choice for Mopar owners. This part fits specific Chrysler 300 models.

MoparPartsGiant.com is a leading supplier of genuine Mopar parts and accessories such as Mopar 5136023AB Fuel Pump/Level Unit Module. Wondering where to find exceptional quality and affordable OEM Mopar parts? You have already come to the right place. Our website boasts a huge selection of genuine Mopar parts at the most economical prices possible. What's more, all parts come with a manufacturer's warranty. For detailed Chrysler parts information, click here.
