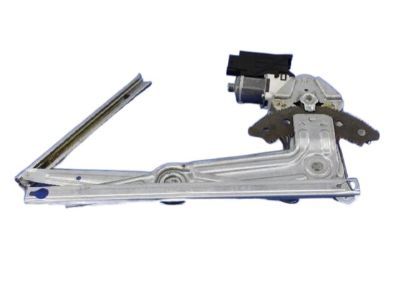

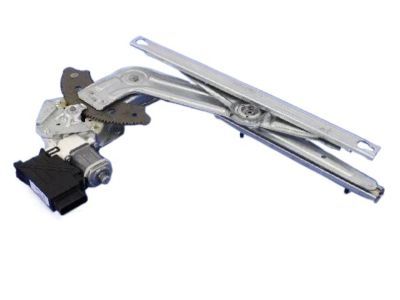

Chrysler 5067685AC Window Motor

You can Select Your Vehicle to check if 5067685AC fits your vehicle.

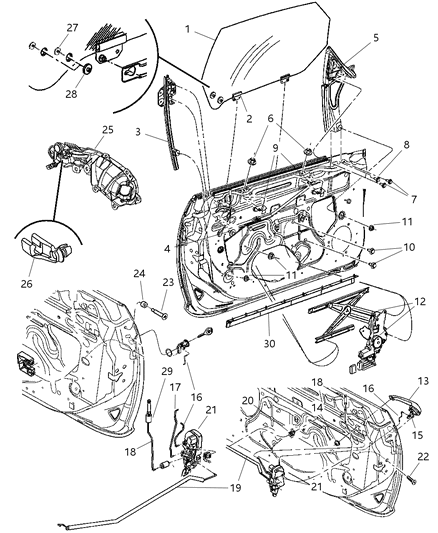

On power window models, do not remove the motor from the regulator assembly without first clamping the sector gear to the mounting plate to avoid serious personal injury. This procedure applies to both the front and rear doors and both manual and power-operated windows. Begin by removing the door trim panel, followed by the door window glass. For power window models, disconnect the window motor electrical connector. Next, remove the bolts securing the window regulator to the inner door panel. Slide the window regulator rearward, then rotate the forward end of the lower roller channel through the access hole in the door to remove the regulator. Installation is the reverse of removal.
