Jeep 53021585AB Seal-CRANKSHAFT Oil

2005-2008 Jeep Grand Cherokee 53021585AB

Customer Questions & Expert Answers (19)
Mopar 53021585AB Seal-CRANKSHAFT Oil
Mopar 53021585AB Seal-CRANKSHAFT Oil
Mopar 53021585AB Seal-CRANKSHAFT Oil
  • Part Description
    Seal Crankshaft Oil Front
  • Replaced By
    53021585AD
  • Manufacturer
    Mopar
Make sure this part fits
$23.78 MSRP: $35.15
You Save: $11.37 (33%)
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

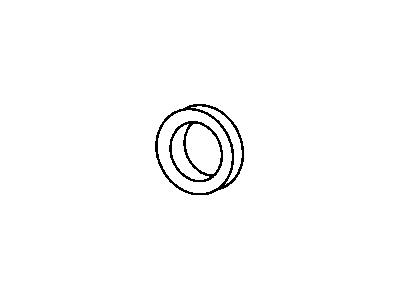

  • 53021585AB Seal-CRANKSHAFT Oil is Ref No. 16 in the diagram below

    2008 Jeep Grand Cherokee Seal-CRANKSHAFT Oil Diagram for 53021585AB
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts

  • Product Specifications

    BrandGenuine Jeep
    Manufacturer Part Number53021585AB
    Part DescriptionSeal Crankshaft Oil Front
    Item Dimensions1.1 x 3.3 x 3.3 inches
    Item Weight0.50 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerMopar
    SKU53021585AB
    WarrantyThis genuine Mopar part is guaranteed by Mopar's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    2008, 2005-2006 Jeep Grand Cherokee8 Cyl 5.7L, 8 Cyl 6.1LLaredo 2WD, Laredo 4WD, Limited 2WD, Limited 4WD, Overland 2WD, Overland 4WD, SRT8 4WD

  • Customer Questions & Expert Answers

    Q:
    Will this fit my truck? Posted by MoparPartsGiant Specialist
    A:
    You can Select Your Vehicle to check if 53021585AB fits your vehicle.
    Posted by MoparPartsGiant Specialist
    Q:
    How to remove and replace a front crankshaft seal in 2.7L V6 engine on Dodge Charger? Posted by Customer
    A:
    Remove the crankshaft pulley from the engine. Carefully pry the seal out of the cover with a seal removal tool or a large screwdriver, being careful not to nick or gouge the seal bore or the crankshaft. Be careful not to scratch, gouge or distort the area that the seal fits into or an oil leak will develop. Clean the bore to remove any old seal material and corrosion. Position the new seal in the bore with the seal lip (usually the side with the spring) facing IN (toward the engine). A small amount of oil applied to the outer edge of the new seal will make installation easier - but don't overdo it! Drive the seal into the bore with a seal driver or a large socket and hammer until it's completely seated. Use a seal driver or a large socket to drive the new seal into the cover. Select a socket that's the same outside diameter as the seal and make sure the new seal is pressed into place until it bottoms against the cover flange. Lubricate the seal lips with engine oil and reinstall the crankshaft pulley. The remainder of installation is the reverse of removal. Run the engine and check for oil leaks.
    Posted by MoparPartsGiant Specialist
    Q:
    What should be removed first for the 2007 Chrysler 300? Posted by Customer
    A:
    The crankshaft pulley.
    Posted by MoparPartsGiant Specialist
    Q:
    What should be done after installing the new seal for the 2009 Dodge Durango? Posted by Customer
    A:
    The remaining installation steps follow the reverse order of removal.
    Posted by MoparPartsGiant Specialist
    Q:
    How is the new oil seal housing installed for the 2010 Chrysler 300? Posted by Customer
    A:
    The new oil seal housing is installed onto the crankshaft using a special guide tool.
    Posted by MoparPartsGiant Specialist
    Q:
    How should the vibration damper be reinstalled on the crankshaft for the 2008 Chrysler 300? Posted by Customer
    A:
    Reinstall the vibration damper, aligning the Woodruff key on the nose of the crankshaft with the keyway in the damper hub. Use a special installation tool to press the vibration damper onto the crankshaft.
    Posted by MoparPartsGiant Specialist
    Q:
    How should you position the new seal in the bore for the 2005 Chrysler 300? Posted by Customer
    A:
    Position the new seal in the bore with the seal lip (usually the side with the spring) facing IN (toward the engine).
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Crankshaft Seal
    Q:
    What should be ensured during installation to prevent oil leaks for the 2010 Dodge Charger? Posted by Customer
    A:
    The housing must be flush with the plane of the oil pan mating surface of the engine.
    Posted by MoparPartsGiant Specialist
    Q:
    How can the dowel pin be removed from the crankshaft for the 2010 Dodge Charger? Posted by Customer
    A:
    It can be tapped out of the crankshaft using a hammer and punch. Then, it can be driven into the hollow, threaded area of the crankshaft snout and extracted with a small magnet.
    Posted by MoparPartsGiant Specialist
    Q:
    What is the alternative method for replacing the rear main oil seal if the housing is removed for the 2007 Chrysler 300? Posted by Customer
    A:
    If the housing is removed, the old seal can be driven out using a small punch, and the housing should be thoroughly cleaned before applying a thin coat of engine oil to the new seal.
    Posted by MoparPartsGiant Specialist
    Q:
    How should the vibration damper be reinstalled for the 2007 Dodge Durango? Posted by Customer
    A:
    Align the Woodruff key with the keyway in the damper hub and use a special installation tool to press it onto the crankshaft.
    Posted by MoparPartsGiant Specialist
    Q:
    What should be done if the seal is being removed while the cover is still attached to the engine block for the 2009 Dodge Charger? Posted by Customer
    A:
    If the seal is being removed while the cover is still attached to the engine block, carefully pry the seal out of the cover with a seal removal tool or a large screwdriver. Be careful not to scratch, gouge, or distort the area that the seal fits into or an oil leak will develop.
    Posted by MoparPartsGiant Specialist
    Q:
    What should be done to the bore after removing the old seal for the 2008 Dodge Durango? Posted by Customer
    A:
    Clean the bore to eliminate any old seal material and corrosion.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Crankshaft Seal
    Q:
    What is the alternative method for replacing the rear main oil seal if the housing is removed for the 2009 Dodge Charger? Posted by Customer
    A:
    If the housing is removed, the old seal can be driven out using a small punch, and the housing should be thoroughly cleaned before applying a thin coat of engine oil to the new seal.
    Posted by MoparPartsGiant Specialist
    Q:
    What is the first step before beginning the removal process for the vibration damper for the 2007 Dodge Magnum? Posted by Customer
    A:
    Disconnect the cable from the negative terminal of the battery.
    Posted by MoparPartsGiant Specialist
    Q:
    How is the new oil seal housing installed for the 2008 Dodge Magnum? Posted by Customer
    A:
    The new oil seal housing is installed onto the crankshaft using a special guide tool.
    Posted by MoparPartsGiant Specialist
    Q:
    How can the crankshaft sprocket be removed for the 2007 Dodge Magnum? Posted by Customer
    A:
    It can be removed using a two-bolt puller, with the bolts threaded into the holes in the sprocket.
    Posted by MoparPartsGiant Specialist
    Q:
    How can the old rear main oil seal be removed from the housing for the 2005 Dodge Magnum? Posted by Customer
    A:
    The old rear main oil seal can be removed by prying it out of the housing with a screwdriver, taking care not to damage the crankshaft surface.
    Posted by MoparPartsGiant Specialist
    Q:
    How should you handle the seal during removal for the 2006 Dodge Magnum? Posted by Customer
    A:
    Be careful not to scratch, gouge or distort the area that the seal fits into or an oil leak will develop.
    Posted by MoparPartsGiant Specialist
    See expert answers on similar Crankshaft Seal
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Mopar Part 53021585AB, the Right Choice

To ensure reliability, purchase Mopar part # 53021585AB Seal-CRANKSHAFT Oil. It is sometimes referred to as Jeep Crankshaft Seal. For Mopar owners with dreams of keeping their vehicles running in prime condition, choosing OEM parts is a smart decision. Meticulously crafted, these parts follow strict factory specifications and are manufactured in top-notch facilities with advanced technologies. Furthermore, they undergo rigorous testing to ensure durability and safety, making them a reliable choice for Mopar owners. This part fits specific Jeep Grand Cherokee models.

MoparPartsGiant.com is a leading supplier of genuine Mopar parts and accessories such as Mopar 53021585AB Seal-CRANKSHAFT Oil. Wondering where to find exceptional quality and affordable OEM Mopar parts? You have already come to the right place. Our website boasts a huge selection of genuine Mopar parts at the most economical prices possible. What's more, all parts come with a manufacturer's warranty. For detailed Jeep parts information, click here.
