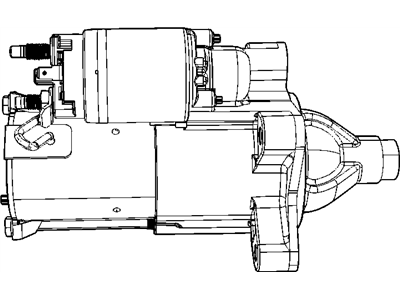

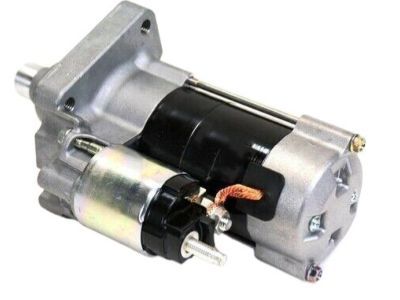

Jeep 4801850AA Engine Starter

You can Select Your Vehicle to check if 4801850AA fits your vehicle.

On some vehicles, it may be necessary to remove the exhaust pipe(s) or frame cross member to gain access to the starter motor. In extreme cases it may even be necessary to unbolt the mounts and raise the engine slightly to get the starter out. Detach the cable from the negative terminal of the battery. Raise the vehicle and support it securely on jack stands. If equipped, remove the fasteners and the starter shield (Pry off the pressed-metal nut and disengage the heat shield retaining clip ). Clearly label, then disconnect the wires from the terminals on the starter motor and solenoid (if mounted on the starter) (Before unbolting the starter motor assembly, detach the wires from the solenoid (or from the starter motor itself, on some models) - be sure the battery is disconnected). Remove the mounting bolts and detach the starter. Installation is the reverse of removal.

To check the solenoid, connect a jumper lead between the battery (+) and the ignition switch wire terminal on the solenoid. If the starter motor operates, the solenoid is fine and the problem lies in the ignition switch, neutral start switch, or wiring.
