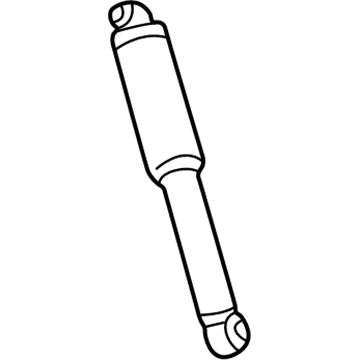

Mopar 5105115AC ABSORBER-Suspension

You can Select Your Vehicle to check if 5105115AC fits your vehicle.

Mount the strut clevis bracket portion of the strut assembly in a vise, being careful not to clamp any other portion of the strut assembly. Install the spring compressor on the spring and compress it sufficiently to relieve all pressure from the upper spring seat. While holding the damper shaft from turning, loosen the shaft nut with a socket. Remove the nut and suspension support, inspecting the bearing and rubber portion for any issues. Remove the upper spring seat and dust boot from the damper shaft, as well as the rubber bumper. Carefully lift the compressed spring from the assembly and set it in a safe place, making sure to mark it for reinstallation.

Remove the bolt and disconnect the ground strap from the strut. On ABS equipped models, also remove the bolt securing the speed sensor harness to the strut. Remove the strut-to-steering knuckle nuts and bolts. Remove the upper mounting nuts, disengage the strut from the steering knuckle and detach it from the vehicle.

Lower the vehicle and proceed to check the condition of the ball joints. Inspect the steering gear boots for any cracks and ensure that clamps are secure. If you notice lubricant leaking from the boots, it indicates that the rack seals have failed. In such cases, it's advisable to have the steering gear replaced or overhauled by a professional.

Install the wheels and lug nuts and lower the vehicle. Finally, tighten the lug nuts to the specified torque.
