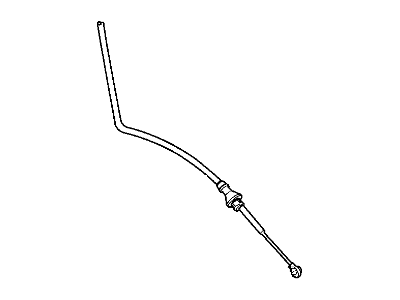

Mopar 68060741AA Transmission Gearshift Control Cable

You can Select Your Vehicle to check if 68060741AA fits your vehicle.

To replace the shift cable, ensure the shift lever is in the PARK position and raise the vehicle securely on jackstands. Remove the cable end from the shift lever at the transmission and pull it out of its mounting bracket. Lower the vehicle and remove the necessary instrument panel trim panels to reach the upper end of the shift cable. Remove the shift cable grommet from the firewall after pulling back the insulation. Disconnect the electrical connector from the Brake Transmission Shift Interlock (BTSI) solenoid and pry the cable end off the lever on the steering column. To disengage the cable assembly from the steering column bracket, squeeze the two tangs on the cable housing together and pull the cable assembly straight down. Installation is the reverse of removal, and the cable should be adjusted accordingly.

To replace the shift cable, ensure the shift lever is in the PARK position and raise the vehicle securely on jackstands. Remove the cable end from the shift lever at the transmission and pull it out of its mounting bracket. Lower the vehicle and remove the necessary instrument panel trim panels to reach the upper end of the shift cable. Remove the shift cable grommet from the firewall after pulling back the insulation. Disconnect the electrical connector from the Brake Transmission Shift Interlock (BTSI) solenoid and pry the cable end off the lever on the steering column. To disengage the cable assembly from the steering column bracket, squeeze the two tangs on the cable housing together and pull the cable assembly straight down. Installation is the reverse of removal, and the cable should be adjusted accordingly.

To adjust the shift cable, place the shift lever in the PARK position and raise the vehicle securely on jackstands. Verify that the manual shift lever is in the PARK position by checking the park lock pawl inside the transmission. If the driveshaft does not rotate, the transmission is correctly engaged in PARK. Disengage the locking clip on the cable end, move the end of the cable in or out as required to snap it over the stud on the shift lever, and snap the locking clip into place. Lower the vehicle and replace any trim panels that were removed. Ensure the engine starts with the parking brake applied.
