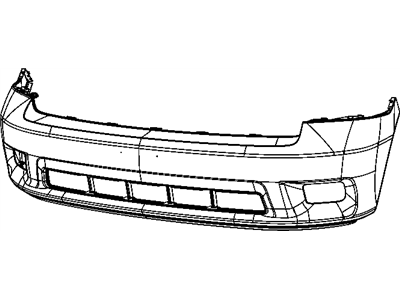

Mopar 1JS52TZZAA Front Bumper Cover

You can Select Your Vehicle to check if 1JS52TZZAA fits your vehicle.

The front bumpers of all models are made up of an outer skin and a structural beam that can be either plastic or chrome steel. Take away the two push-pins from either side of the bumper fascia to separate it from the inner wheel well. Ease the inner wheel well aside slightly. Remove the screws on either end of the bumper fascia. Take off the fasteners at bottom part of sports models' bumper fascias. Remove grille (mask). Use little screwdriver to release top clips from bumper cover and remove it from vehicle. In order to free ends and pull them out, use small screwdriver for releasing tabs which hold them like a grip. Afterward, release center section of cover and pull upwards in a straight line until it is removed completely; make sure you do not twist it while removing. Lastly, remove plastic cover that covers the backside of installing bolts of front body parts.Note down where bumper brackets join frame rail, or bumper-to-bracket nuts if available then unplug fog light connectors as required. Meanwhile assistant supports bumper, take off nuts/bolts holding onto it with frame rails or brackets attaching bumpers to frame rails only having nuts retaining bumpers, which also have nuts keeping them attached to mounting bracket(s). Detach bumper form frame rail/brackets.The installation procedure begins by raising vehicle's height ensuring that secure jack stands are used during support for jacking purposes. While taking licence plate off one will find couple bolts behind this plate securing central part among above described components protecting any wires connecting into its rear face therefore making repair simpler when these elements are being taken apart upon removal operation done by using any helper able (or stable) jack inserting between chassis members-axles should never be considered as supporting points because they won't bear such pressure exerted over whole weight transferred thereon. These bumpers could be removed after detaching them from their support brackets directly or by removing mounting brackets with them from the car. Reinstalling is just opposite to un-installation step.

Installation is the reverse of removal, which includes attaching the bumper to the brackets or frame rails, reconnecting electrical connectors, and securing the bumper in place.
