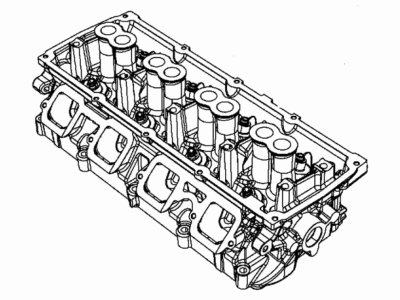

Mopar 4893195AC Head-Cylinder

You can Select Your Vehicle to check if 4893195AC fits your vehicle.

Disconnect the exhaust pipe from the turbocharger, remove the viscous fan and drive assembly, and raise the engine with support or a hoist. Remove the right engine mount through-bolt and the engine mount itself. Disconnect the turbo oil drain fitting and seal the openings. Disconnect the air intake temperature sensor wiring, remove the air filter housing and snorkel, and tape the open turbo port. Disconnect heater hoses, oil supply line, and coolant lines from the turbocharger, sealing the openings. Remove the EGR cooler, exhaust manifold with the turbo attached, fan and shroud assembly, and the drive belt. Lower the alternator, disconnect the upper radiator hose, and label and disconnect all wiring attached to the cylinder head. Remove the engine oil dipstick tube bolt, air intake housing, pump-to-fuel rail line, fuel rail-to-head lines, and fuel line shield. Remove the fuel injectors and rocker housing.

Warpage of the cylinder head, as well as the head gasket, intake, and exhaust manifold surfaces, should be checked with consultation from an automotive machine shop.

Depending on the cylinder head, you may need to remove other components like the alternator, transmission and oil dipstick tube, air conditioning compressor, or heater core tube. Additionally, the timing chain cover should be removed, and the crankshaft should be rotated to Top Dead Center (TDC).

Lift the heads off the engine using a block of wood or by striking a wood block with a hammer. Store the heads on blocks of wood.
