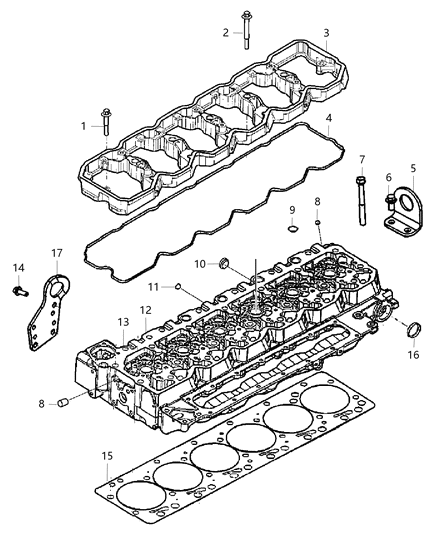

Mopar R8210096AB Head-Cylinder

You can Select Your Vehicle to check if R8210096AB fits your vehicle.

Before starting, disconnect the batteries' negative terminals and drain the coolant.

Remove the banjo bolt, sealing washers, and the fuel line from the rear of the head, then remove the fuel injectors. Remove the rocker housing and gasket. Loosen the head bolts in the reverse order of the tightening sequence, inserting each removed bolt into a cardboard template to keep track. Carefully pry between the head and block to break the gasket seal, then lift off the cylinder head, either with an assistant or using an engine lifting hoist. Inspect the head and remove any wiring harnesses or ground cables still attached.

To remove the cylinder head, you need to take off several components including the timing chain, oil control valves, timing chain tensioner, chain guides, camshafts, rocker arms, and lash adjusters.

To complete the installation, components removed from the head, such as lash adjusters, exhaust manifold, and camshaft, should be reinstalled.

Complete the remaining installation steps in reverse order. Finally, add coolant, change the engine oil and filter, and start the engine to check for proper operation and leaks.

Complete the remaining installation steps, which include changing the engine oil and filter, and refilling the cooling system. Finally, start the engine and check for leaks and proper operation.

Lift the heads off the engine using a block of wood or by striking a wood block with a hammer. Store the heads on blocks of wood.

After that, raise and securely support the front of the vehicle and unbolt the exhaust pipes from the exhaust manifolds.
