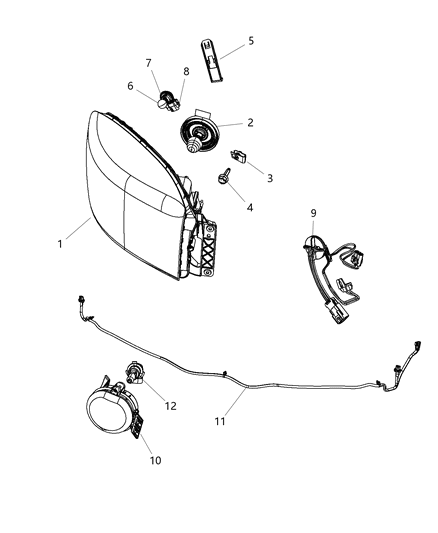

Mopar 68001485AD Head Light Assembly Left

You can Select Your Vehicle to check if 68001485AD fits your vehicle.

Remove the six push-pin clips, then remove the plastic shield from the top of the radiator. Remove the top headlight mounting screw. For access to the upper screw, remove the radiator top cover, then use a magnetic socket with a long extension to remove the vertical screw. Other components are removed here for clarity. Remove the lower headlight mounting screw by reaching a socket and extension vertically between the grille and the radiator core support structure. The screw must not be dropped after it's unscrewed so you'll have to use a magnetic socket. If you don't have one, put some sticky substance such as butyl windshield adhesive or silicone adhesive into the socket to hold the screw. Release the bottom of the tab at the lower section of the access panel to the wheel well splash shield. Open this access door to reach the headlight slide lock. Working through the opening in the wheel well splash shield, move the slide lock upward to disengage it from the rear of the headlight housing. Slide this lock upward to release the headlight housing. Pull the headlight toward the front of the vehicle to pop it loose from the plastic retainer. The ball will pop out of socket when the headlight is pulled forward. Disconnect the wiring harnesses from the headlight, then remove it. Disconnect the wiring harnesses from the rear of the headlight housing. The arrow indicates the headlight adjustment screw. Installation is the reverse of removal.

Slide the lock upward and pull the headlight toward the front of the vehicle.

The vehicle should be parked 25 feet from the wall. Tape a horizontal line on the wall that represents the height of the fog lights and tape another line four inches below that line. Using the adjusting wheel on the rear of each fog light, adjust the pattern on the wall so that the top of the fog light beam meets the lower line on the wall.

The screw access holes are located in the top of the fenders, indicated by arrows.

The ball will pop out of socket.

The vehicle should be parked 25 feet from the wall. Tape a horizontal line on the wall that represents the height of the fog lights and tape another line four inches below that line. Using the adjusting wheel on the rear of each fog light, adjust the pattern on the wall so that the top of the fog light beam meets the lower line on the wall.
