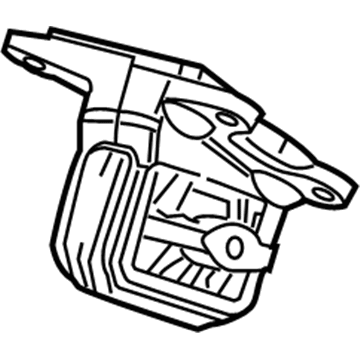

Mopar 52122711AA INSULATOR-Engine Mount

You can Select Your Vehicle to check if 52122711AA fits your vehicle.

Engine mounts seldom demand attention. If by any chance they become broken down or deteriorated, these should be replaced immediately in order to prevent damage or wear to the driveline components. To check the mounts, raise the vehicle and support it securely on jackstands. Next, place a jack underneath the engine oil pan and lift up slightly thus removing weight from the mountings. Look at the mount insulators for cracked or hardened rubber or separation from the metal in center. Also, make sure there is no relative sliding between mount and engine or frame. In case of any movement downwards lower it and tighten up mounting fasteners. As a first step in replacement disconnect battery cable and raise vehicle on jackstands. Hold engine then remove through bolts to detach mount from frame bracket and engine for 2WD models. For 4WD models remove skid plate, engine crossmember, and engine oil filter .Use an engine hoist to raise the engine slightly in order to take off weight from under mounts.Remove two front axle assembly bolts that attach it to frame as well as front axle block.This will allow us lower the front axle enough so that we can remove old mount out.Install new mount correctly positioned with regard to other parts of automobile then lastly secure it tightly.

Engine mounts seldom demand attention. If by any chance they become broken down or deteriorated, these should be replaced immediately in order to prevent damage or wear to the driveline components. To check the mounts, raise the vehicle and support it securely on jackstands. Next, place a jack underneath the engine oil pan and lift up slightly thus removing weight from the mountings. Look at the mount insulators for cracked or hardened rubber or separation from the metal in center. Also, make sure there is no relative sliding between mount and engine or frame. In case of any movement downwards lower it and tighten up mounting fasteners. As a first step in replacement disconnect battery cable and raise vehicle on jackstands. Hold engine then remove through bolts to detach mount from frame bracket and engine for 2WD models. For 4WD models remove skid plate, engine crossmember, and engine oil filter .Use an engine hoist to raise the engine slightly in order to take off weight from under mounts.Remove two front axle assembly bolts that attach it to frame as well as front axle block.This will allow us lower the front axle enough so that we can remove old mount out.Install new mount correctly positioned with regard to other parts of automobile then lastly secure it tightly.

First, disconnect the battery cable, remove the engine cooling fan and shroud, and raise the front of the vehicle on jackstands. Support the engine from above using a lifting device, ensuring not to connect it to the intake manifold, and raise the engine to relieve mount weight. Depending on the model (2WD or 4WD), follow the respective steps to remove the engine mount, heat shield (if equipped), and support brackets. Then, install the new mount and heat shield. Lower the engine to guide the mount and through-bolt into the frame support bracket, secure the through-bolt nut, and complete the installation by reversing the removal steps. Finally, remove the engine hoist and jackstands, and lower the vehicle.

Yes, rubber preservative may be applied to the mounts to slow down deterioration.

Inspect the mounts for cracked, hardened, or separated rubber from the metal casing, as this indicates a need for replacement.

The engine mounting system consists of three molded mounts - two front mounts that support the engine assembly and one rear mount that supports the transmission and restricts torqueing action of the powertrain.
