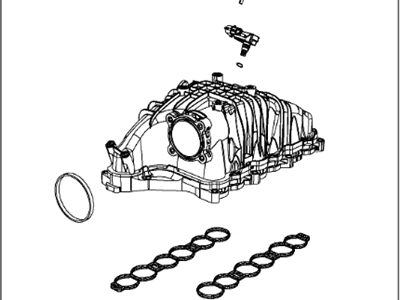

Mopar 68211167AA Engine Intake Manifold Kit

You can Select Your Vehicle to check if 68211167AA fits your vehicle.

For 2009 models, disconnect the negative battery terminals, wiring from the EGR temperature sensor and EGR valve actuator, oil dipstick tube fasteners, intercooler outlet tube, air transfer tube, and air inlet. Disconnect the fuel supply tubes and lines, wiring from the sensor at the rear of the fuel rail, and high pressure fuel line from the dump valve. For 2010 and later models, disconnect the left intercooler tube from the EGR air flow control valve, remove the EGR crossover tube, and disconnect interfering wiring harnesses. Remove the oil dipstick tube bolts and intake manifold bolts, and install a new gasket. To access the intake air heater grids, disconnect the heater cable, positive and ground cables, intake air heater manifold bolts, and dipstick tube mounting bracket bolt. Disconnect the fuel injector wiring harness and pressure sensor wiring harness, and remove the air intake heater mounting bolts. During reassembly, use new upper and lower heater block gaskets. To replace the intake air heater relay, disconnect the negative battery terminals, label and disconnect the trigger wires, remove the nuts from the cable terminals, and remove the relay mounting bracket bolts.

After removing the intake manifold, label and detach any remaining hoses or wiring. Then, lift the manifold up and remove it from the engine. To install it, clean and inspect the sealing surfaces, replace any damaged gaskets, and position the manifold correctly over the cylinder heads. Hand-tighten the intake manifold bolts and then tighten them to the recommended torque. Complete the installation by following the reverse of the removal steps, fill the cooling system, and check for leaks.

Detach the fuel rail from the dump/overflow valve, then remove it.

After that, remove the engine cover by pulling up at the front and sliding it forward. Remove the air filter housing and the intake air duct.

When installing the lower intake manifold, you should ensure that the mating surfaces are clean and install new intake manifold seals. Lower the manifold into place and tighten the mounting bolts.

No, the gaskets are not included
