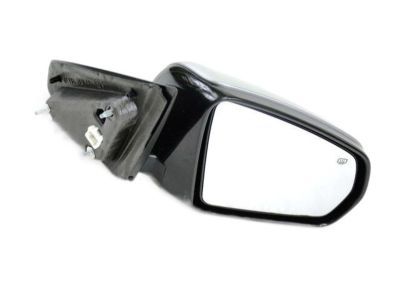

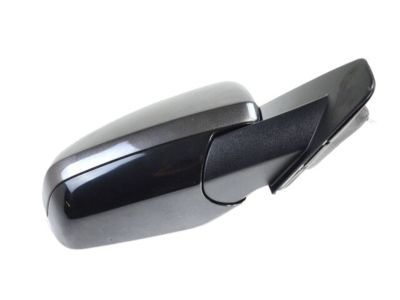

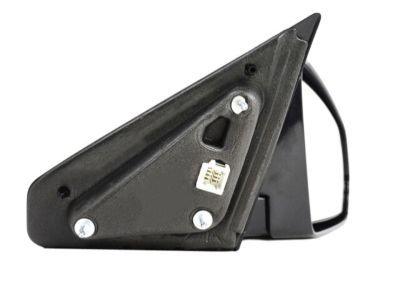

Mopar 1CK92RXFAC Outside Rear View Mirror

You can Select Your Vehicle to check if 1CK92RXFAC fits your vehicle.

Use a pry tool to remove the side view mirror trim panel by carefully prying off the trim panel from the corner of the door. On vehicles with power mirrors, disconnect the power mirror electrical connector. On vehicles with manual mirror adjuster, disconnect the adjuster from the side mirror cover. Remove the outside mirror mounting fasteners and the outside mirror from the vehicle. Installation is the reverse of removal. If the vehicle is equipped with either the electrochromic or telematic mirror options, first disconnect the battery. Then disconnect the electrical connector at the back of the mirror. Use a Philips head screwdriver to remove the set screw on the support/bracket used on the windshield and remove the mirror set screw. Slide the mirror off the mount plate and remove the mirror. Note: If the mount plate itself has come off the windshield, adhesive kits are available at auto parts stores to re-secure it. Follow the instructions included with the kit. Installation is the reverse of removal.

If the mirror still doesn't work after checking fuses and switch continuity, proceed with these steps: Remove the mirror and inspect the wires at the mirror for voltage. If there is no voltage in each switch position, check both the mirror and the control switch for a disconnected (open) lead. Ensure all electrical connections are secure.
