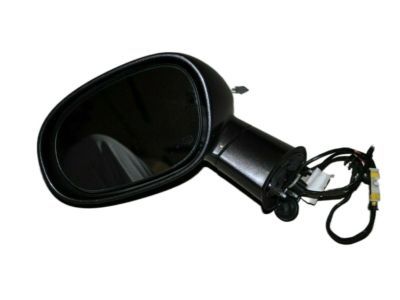

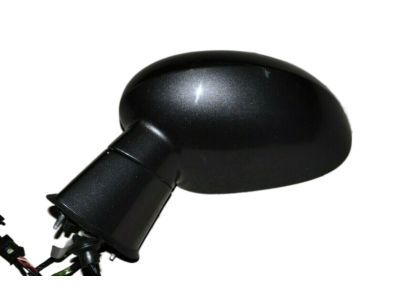

Mopar 5PE54LAUAC Outside Rear View Mirror

You can Select Your Vehicle to check if 5PE54LAUAC fits your vehicle.

In order to replace outside mirrors, first step is to remove the door trim panel, next step is to slide back window trim molding. For power mirrors remove the electrical connector, unbolt the mirror and disconnect it from the door. Removal and installation are opposite processes; that is, installation involves the opposite action. In the case of inside electronic mirror, reconnect and separate the negative terminal of the battery should be encouraged. In case of models with electrochromic, rain sensing or telematics delete the covers to expose the wiring connectors, unplug them and to remove the mirror assembly, turn it by 90 degrees clockwise. Reinstallation also operates in the opposite way and if the base of support comes off from the windshield it can be fixed with the help of the adhesive kit available at car part stores but the surfaces must be clean first. For those models having electrochromic and telematics features or standard inside mirrors, turn the setscrew to unscrew the mirror assembly from the bracket until it can be pulled up slowly and removed and ensure that any electrical connections are disconnected before the mirrors are removed. When all the supports have been detached, it is also possible to place it back using the adhesive equipments which are accompanied by a clear procedure on how it has to be done.

Reconnect the switch and locate the wire going from the switch to ground; connecting a jumper wire between this wire and ground should allow the mirror to function normally, indicating a faulty ground connection that needs repair.
