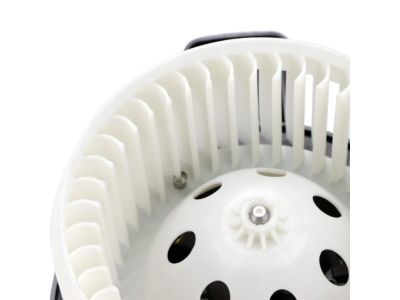

Mopar 68029719AB Motor-Blower With Wheel

You can Select Your Vehicle to check if 68029719AB fits your vehicle.

Disconnect the battery negative cable. Remove the glove box. Detach the panel underneath the right end of the dash, which has four fasteners - two screws in front and two sheet metal nuts on the backside. On air-conditioned models, detach the two vacuum lines from the air door actuator. Remove the two sheet metal nuts from the studs on the bottom and detach the rod from the door lever arm. Remove the two sheet metal nuts that secure the actuator to the blower housing. Reach up to the top of the actuator rod, disconnect the rod from the door lever arm, and remove the actuator. Remove all eight mounting screws from the blower housing and remove the housing. Remove the retaining clamp from the fan hub and slide the fan off the motor shaft. Unplug or unsolder the blower motor electrical connector, remove the three motor mounting screws, and pull out the motor. Install the fan on the new blower motor and secure it to the shaft with the retaining clamp. Installation is the reverse of removal.
