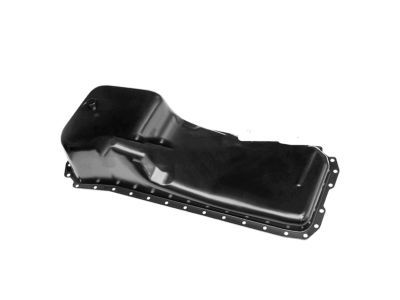

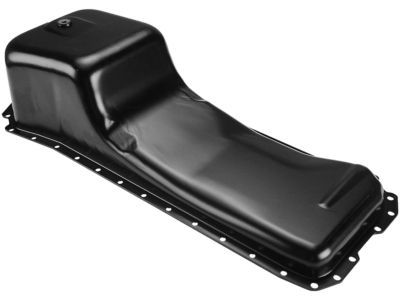

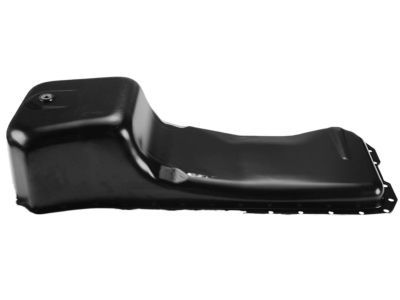

Mopar 4429403 Pan-Oil

You can Select Your Vehicle to check if 4429403 fits your vehicle.

Locate the negative battery terminal and loosen it to isolate it from the battery positive terminal, remove the engine oil dipstick. Chock the wheels, and safely jack up the vehicle and make sure that it can safely stand without rolling before you decide to drain the engine oil. Disconnect the engine to transmission strut, and for those automobiles that have an automatic transmission, also, the torque converter inspection cover has to be removed. After that, take off the oil pan mounting bolts and extract the oil pan from the engine's structure. To clean oil pickup tube and screen the assembly has to be removed from the block and cleaned using solvent and also check the screen for changes. Wipe off the oil pan with solvent and dry it with a piece of clean cloth, remove all the gasket materials from the oil pan, by scraping the mounting surfaces of the oil pan as well as that of the block. There should be no distortion at the oil pan mounting flange, straighten it if required. Screw and fit the oil pickup tube and screen in the block as far as necessary and then turn the assembly to put it about one inch from the oil pan bottom. The oil pan should be reinstalled together with new gaskets: when fitting rubber seals and cork gaskets, it is necessary to use RTV-type sealant both on the rubber and on the cork gasket, and on both planes of the gasket. When this is done, fit the retaining bolts and tighten the same to the recommended torque in a star pattern from the center outwards. Continue the process by performing the reverse of the above procedures such that replace the Oil drain plug and tighten it and then pour the correct quantity of oil into the crankcase and examine for leaks at the oil pan gasket sealing surfaces after starting the engine.

The remainder of the installation follows the reverse order of removal.

After disconnecting the battery, raise the vehicle and support it securely on jackstands, then drain the engine oil.
