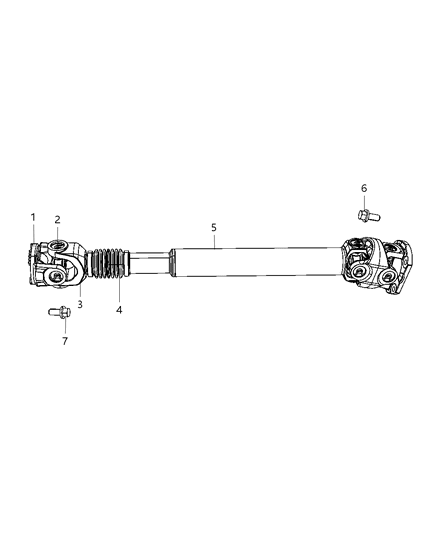

Mopar 52123325AA Front Drive Shaft

You can Select Your Vehicle to check if 52123325AA fits your vehicle.

When the vehicle is raised for service, it's a good idea to clean the driveshaft and inspect it for any obvious damage. Also, make sure the small weights used to originally balance the driveshaft are in place and securely attached.

The first step in the process is to raise the vehicle and support it securely on jack stands.

Universal joints are located at either end of the driveshaft and allow the driveshaft to operate at different angles as the suspension moves.

If it's a one-piece unit, slide the front end of the driveshaft out of the transmission extension housing.

If it's a two-piece driveshaft, mark the relationship of the center support bearing to the support bracket, then unbolt the center support bearing and slide the front end of the front driveshaft out of the extension housing.

Universal joints are located at either end of the driveshaft and allow the driveshaft to operate at different angles as the suspension moves.

When applying the lubricant, you should avoid applying so much that an excessive amount comes out.

To install the driveshaft, remove the plastic bag from the transmission or transfer case extension housing and wipe the area clean. Inspect the oil seal and center support bearing. Insert the front end of the driveshaft assembly into the transmission or transfer case extension housing. Raise the rear of the driveshaft into position, checking the alignment marks. If it's a two-piece unit, raise the center support bearing and bolt it loosely into place. Raise the rear end of the rear shaft into position and make sure the alignment marks are in alignment. Remove the tape securing the bearing caps and install the clamps and fasteners.

A conventional grease gun should be used to apply sufficient lubricant to the fitting.
