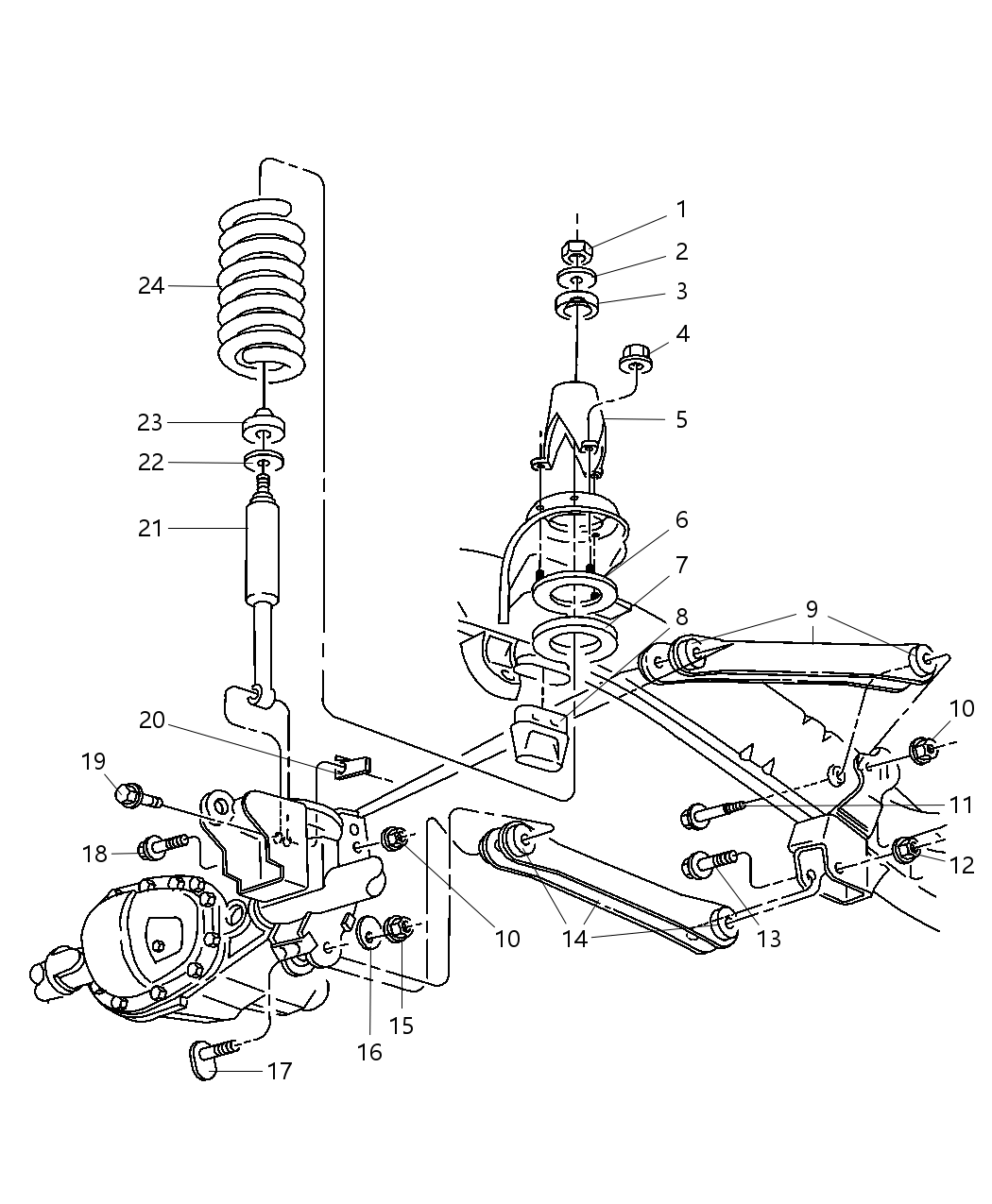

Mopar 52122309AA Front Coil Spring

You can Select Your Vehicle to check if 52122309AA fits your vehicle.

Certainly. After separating the lower control arm from the steering knuckle, lift the knuckle and hub assembly upward. Then, place a block of wood between the upper control arm and the frame. This action supports the assembly and keeps it out of the way for further steps.

Place a jack under the rear axle to support its weight, remove the bolt from the lower shock absorber mount, and slowly lower the jack until the spring and insulator can be pulled out.

After raising the vehicle and securely supporting it on jackstands, remove the wheels. Then, use floor jacks to support the end of the axle from which you're removing the spring. Install a coil spring compressor on the coil spring and slightly compress the spring. Following this, remove the upper suspension arm and loosen the lower suspension arm nuts and pivot bolts. Additionally, mark and disconnect the front driveshaft from the front axle. Disconnect the track bar from the frame rail bracket, the drag link from the Pitman arm, and the stabilizer bar link from the axle. Finally, disconnect the shock absorber from the axle and lower the axle until the coil spring is free for removal.

Place a jack under the rear axle to support its weight, remove the bolt from the lower shock absorber mount, and slowly lower the jack until the spring and insulator can be pulled out.
