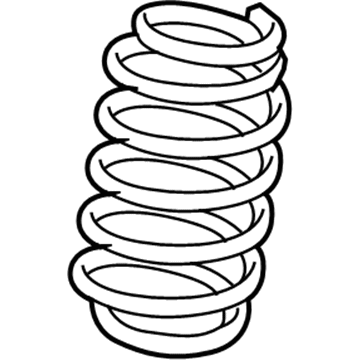

Mopar 68086056AB Front Coil Spring

You can Select Your Vehicle to check if 68086056AB fits your vehicle.

To reassemble the strut and spring assembly, you need to extend the damper rod and install the rubber bumper. Put the dust boot onto the damper and carefully place the coil spring onto the damper, aligning it with the reference marks made during disassembly. Install the upper spring isolator and seat, followed by the upper mount, and tighten the nut on the damper shaft. Loosen the coil spring compressor until the top coil is properly seated against the upper spring seat and upper mount. Finally, remove the tool from the coil spring and install the strut/spring assembly.

Before starting any work, it is recommended to explore all options. The strut body cannot be serviced and must be replaced if there is a problem. However, complete strut assemblies with springs may be available on an exchange basis, which can save time and effort. It is important to check the cost and availability of parts before disassembling the vehicle.

For coil spring models, raise the rear of the vehicle on jackstands and remove the wheels. Disconnect the stabilizer bar link from the lower control arm. Use a floor jack to support the knuckle and raise it slightly. Remove the lower control arm-to-knuckle bolt and nut. Lower the control arm slowly to remove the spring. Installation is the reverse of removal.

Install the shock absorber/coil spring assembly.

For 2015 and later models, the initial steps involve raising the rear of the vehicle and supporting it on jackstands, removing the wheels, and removing the rear fenderwell splash shield.

A floor jack should be used to support the knuckle and raise it slightly.
