Genuine Dodge Dakota Harmonic Balancer
Engine Harmonic Balancer- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
9 Harmonic Balancers found

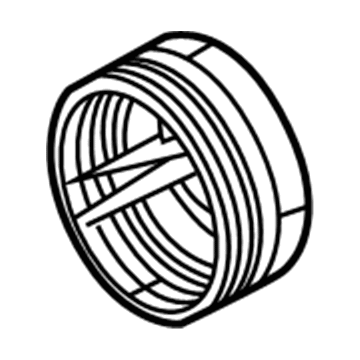

Dodge Dakota Harmonic Balancer
In the Dodge Dakota, the Harmonic Balancer plays the role of balancing the engine as well as absorbing vibrations that may be caused by the combustion process. In this component there is a metal hub which is connected to crank shafta: a thick metal inertia ring, flex mounted on a rubber ring which tends to oppose to the twisting movement of the crank shaft. While time passes, heat and roads will affect the rubber resulting in possible crankshaft damage in the event that the balance fails. Some of the Dodge Dakota car models can employ the Normal or original Harmonic Balancers or even the High-Performance Balancers. While typical balancers are made to meet factory engine requirements, performance harmonic balancers are built to meet greater levels of oscillation coming from tuned engines and provide a safeguard at all engine speeds. Some of the performance options include the traditional, high viscous fluid, and the multi piece design, which has all undergone tests in dangerous staking and racing environments.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Dakota Harmonic Balancer at great affordable prices. Moreover, all genuine Dodge Dakota Harmonic Balancer come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Dakota Harmonic Balancer Parts Questions & Experts Answers
- Q: How to remove and install Crankshaft Pulley and Harmonic Balancer in 3.7L V6 and 4.7L V8 engine on Dodge Dakota?A: Remove the cable far from the negative terminal of the battery. Disassembly process involves the following: Erase the system cooling fans and also the shroud. Remove the drivebelts and rotate the belt tensioner in the opposite direction to the crankshaft pulley. Coil the strap wrench or chain wrench around the crankshaft pulley and while pulling it with your hand, place a breaker bar and socket on the crankshaft pulley center bolt and turn it counterclockwise until it's loose. For this, there are specific holes provided in the crankshaft and pulley and using a puller use the jaws of the puller in such a way that they grip the hub of the pulley only and not the outer ring, at the same time check that the puller screw does not go into the threads present in the nose of the crankshaft. Examine the oil seal riding surface on the pulley hub; if the surface has been grooved out, an oil seal sleeve may be available which will fit on to the hub and renew the sealing surface and this can be fitted with a hammer and a block of wood. Coat the portion of the hub of the pulley with clean engine oil, ensure that the groove in the pulley is properly engaged with the key on the crankshaft, insert the crankshaft pulley over the crank shaft as far as it may go to be followed by the use of a vibration damper installation tool in forcing it the rest of the way. Replace the crankshaft pulley retaining bolt and tighten it to the recommend torque. The rest of the installation is done in the reverse sequence of what was followed to remove it.
