20 Universal Joints found
Dodge Dakota Universal Joint

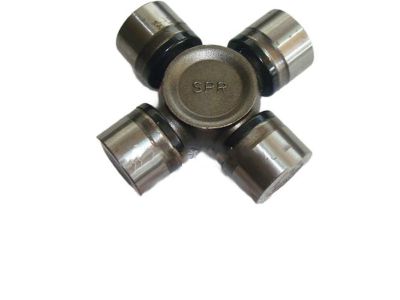

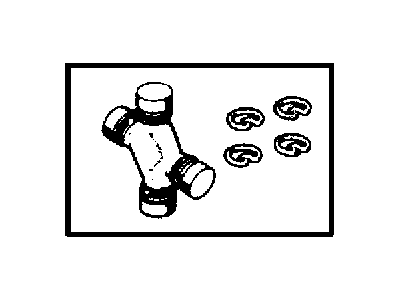

The Universal Joint in Dodge Dakota automobiles is very important since it connects the driveshaft with the differential so that it must provide the necessary movements as the suspension adapts to the irregularities of the road. This component allows rotation of the driveshaft to occur when there exists changes in the transmission angle to the axle structure. Normally, the Universal Joint in its most basic form is a cross with needle bearings retained in hardened steel cups which were designed to optimize the joint's strength. Throughout Dodge Dakota's years, it has incorporated several Universal Joint designs where factory models include pre-lubed Universal Joints while Universal Joints include grease zerks for greasing. Not only does Worn Universal Joints cause noticeable problems like loud sounds and shaking, but also they require the inspections and, therefore, replacement. This knowledge is crucial in the lengthening of its service time and effectiveness to the Dodge Dakota vehicles.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Dakota Universal Joint at great affordable prices. Moreover, all genuine Dodge Dakota Universal Joint come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Dakota Universal Joint Parts Questions & Experts Answers
- Q: How to replace universal joints in a driveshaft on Dodge Dakota?A: A press or large vise will be required for this procedure. It may be advisable to take the driveshaft to a local dealer service department, service station, or machine shop where the universal joints can be replaced for you, normally at a reasonable charge. Remove the driveshaft. On U-joints with external snap-rings, use a small pair of pliers to remove the snap-rings from the spider. Supporting the driveshaft, place it in position on a workbench equipped with a vise. Place a piece of pipe or a large socket over one of the bearing caps and use the vise or press to force the bearing cap out. Use the vise or large pliers to work the bearing cap the rest of the way out. Transfer the sockets to the other side and press the opposite bearing cap out in the same manner. Pack the new universal joint bearings with grease. Position the spider in the yoke and partially install one bearing cap in the yoke. Start the spider into the bearing cap and then partially install the other cap. Align the spider and press the bearing caps into position, being careful not to damage the dust seals. Install the snap-rings. If difficulty is encountered in seating the snap-rings, strike the driveshaft yoke sharply with a hammer. This will spring the yoke ears slightly and allow the snap-rings to seat in the groove. Install the grease fitting and fill the joint with grease. Be careful not to overfill the joint, as this could blow out the grease seals. Install the driveshaft. Use the above procedure, but note that it will have to be repeated because the double-cardan joint is made up of two single-cardan joints. Also pay attention to how the spring, centering ball, and bearing are arranged. Both U-joints in the double-Cardan assembly must be replaced at the same time, even if only half of it is worn out.
