Genuine Dodge Ram 1500 Brake Master Cylinder
- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
14 Brake Master Cylinders found

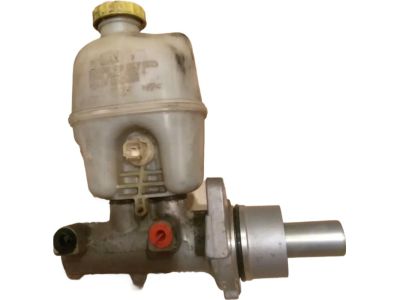

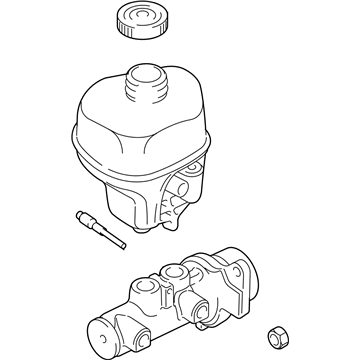

Dodge Ram 1500 Brake Master Cylinder
Part Number: 68000908AA$208.68 MSRP: $319.00You Save: $110.32 (35%)
Dodge Ram 1500 Brake Master Cylinder
Dodge Ram 1500 brake master cylinder is an important brake component within the vehicles that transmits force from the driver's foot into hydraulic pressure to the brakes. It works with the help of pistons housed either in cast iron or aluminum body that compress the brake fluid to initiate the operation of slave cylinders thus applying pressure to the brake pads on the rotors or drums that produces stopping power. Dodge Ram 1500 models have had provision of dual circuit master cylinders since 1967 to warrant that if a particular circuit has failed, there is another one that is capable of moderating enough braking pressure. There will also be the designs of having an integrated reservoir or an external reservoir accompanying the caps. Some of the typical problems that affect the vehicles' braking system include leakage and internal failure which will reduce the braking effectiveness of the vehicle. This means there is great significance of Performing maintenance frequently in order to achieve maximum reliability of the Brake Master Cylinder in Dodge Ram 1500 vehicles.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Ram 1500 Brake Master Cylinder at great affordable prices. Moreover, all genuine Dodge Ram 1500 Brake Master Cylinder come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Ram 1500 Brake Master Cylinder Parts Questions & Experts Answers
- Q: How Do You Remove and Install a Master Cylinder on Dodge Ram 1500?A: To remove the Brake Master Cylinder, begin by locating it in the engine compartment, mounted to the power Brake Booster. Remove excess fluid from the reservoir using a syringe or turkey baster. Place rags under the fluid fittings and prepare caps or plastic bags to cover the line ends once disconnected. Loosen the brake line fittings at the Brake Master Cylinder using a flare-nut wrench to prevent damage. Disconnect the electrical connector at the brake fluid level switch, then remove the nuts attaching the Brake Master Cylinder to the power booster. Carefully pull the Brake Master Cylinder off the studs, being cautious not to spill fluid. If installing a new Brake Master Cylinder, transfer the reservoir and install new seals. For installation, bench bleed the new Brake Master Cylinder by clamping it in a vise and attaching bleeder tubes to the outlet ports. Fill the reservoir with the recommended brake fluid type and push the pistons into the Brake Master Cylinder to expel air into the reservoir. Repeat until no air bubbles are present. Remove the bleed tubes, install plugs in the ports, and attach the reservoir cap. Install the Brake Master Cylinder over the power brake booster studs, tighten the attaching nuts finger-tight, and thread the brake line fittings into the Brake Master Cylinder. Fully tighten the nuts. Connect the brake fluid switch electrical connector, fill the reservoir with fluid, and bleed the Brake Master Cylinder and brake system. Test the brake system's operation carefully before normal vehicle use.
