Dodge Ram 2500 Brake Master Cylinder

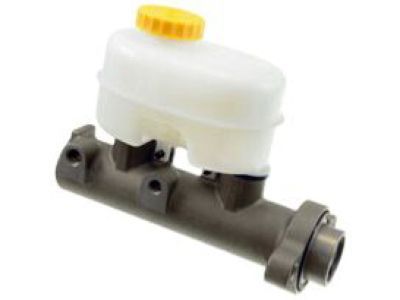

The Brake Master Cylinder is installed in the Dodge Ram 2500 vehicles and offers the pressure applied by the foot by means of hydraulic force in order to control the brakes. This is done through the pistons which are housed in cast iron or aluminum and pressurize the brake fluid which then force the slave cylinders to engage the brake calipers or drums for the formation of a friction needed to stop the car. Over the years models of Dodge Ram 2500 have incorporated the use of dual circuit master cylinders having two pistons for safety measures in the case of hydraulic failure since 1967. The design can, therefore, combine the integral reservoir or the separate one, although, the latter is more popular. These may vary mainly in terms of reservoir constructing and the method of attachment used. This is because problems such as fluid leakage or moisture or any factor that will reduce the efficiency of the Brake Master Cylinder affects the efficiency of the Dodge Ram 2500 vehicles hence, the need to seek for servicing immediately.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Dodge Ram 2500 Brake Master Cylinder at great affordable prices. Moreover, all genuine Dodge Ram 2500 Brake Master Cylinder come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Dodge Ram 2500 Brake Master Cylinder Parts Questions & Experts Answers
- Q: How Do You Remove and Install a Master Cylinder on Dodge Ram 2500?A: To remove the Brake Master Cylinder, begin by locating it in the engine compartment, mounted to the power Brake Booster. Remove excess fluid from the reservoir using a syringe or turkey baster. Place rags under the fluid fittings and prepare caps or plastic bags to cover the line ends once disconnected. Loosen the brake line fittings at the Brake Master Cylinder using a flare-nut wrench to prevent damage. Disconnect the electrical connector at the brake fluid level switch, then remove the nuts attaching the Brake Master Cylinder to the power booster. Carefully pull the Brake Master Cylinder off the studs, being cautious not to spill fluid. If installing a new Brake Master Cylinder, transfer the reservoir and install new seals. For installation, bench bleed the new Brake Master Cylinder by clamping it in a vise and attaching bleeder tubes to the outlet ports. Fill the reservoir with the recommended brake fluid type and push the pistons into the Brake Master Cylinder to expel air into the reservoir. Repeat until no air bubbles are present. Remove the bleed tubes, install plugs in the ports, and attach the reservoir cap. Install the Brake Master Cylinder over the power brake booster studs, tighten the attaching nuts finger-tight, and thread the brake line fittings into the Brake Master Cylinder. Fully tighten the nuts. Connect the brake fluid switch electrical connector, fill the reservoir with fluid, and bleed the Brake Master Cylinder and brake system. Test the brake system's operation carefully before normal vehicle use.
