Genuine Jeep Cherokee Throttle Position Sensor

Jeep Cherokee Throttle Position Sensor Parts Questions & Experts Answers

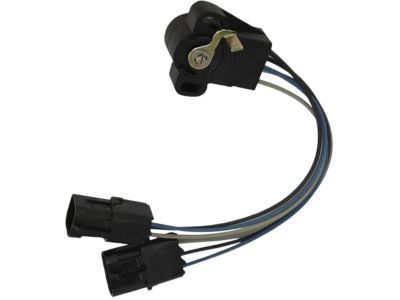

• Throttle Position Sensor
  4761871AB
  Q: How to work on the throttle body, throttle position sensor, fuel injector,fuel rail and fuel pressure regulator on Jeep Cherokee?

  A: To work on the throttle body, start by detaching the negative battery cable and relieving fuel pressure. Disconnect the flexible air duct and unplug the idle speed stepper motor and throttle position sensor wire connectors. Remove the MAP sensor vacuum tube from the throttle body and detach the throttle linkage, and if there's an automatic transmission, detach the line pressure cable. Then, remove the mounting bolts, throttle body, and gasket, making sure to discard the old gasket and clean the mating surfaces on the throttle body and intake manifold. For the idle speed stepper motor, disconnect the negative battery cable, unplug the wire connector, remove the retaining screws, and pull off the motor. Installation is the reverse of removal. To work on the throttle position sensor, detach the negative battery cable, unplug the TPS wire connector, and remove the retaining screws while bending back the TPS lock tabs if present. Then, detach the TPS from the throttle plate assembly and have it adjusted by a dealer service department. For the fuel injector rail assembly, relieve Fuel Tank pressure and system fuel pressure, disconnect the negative battery terminal, numerically label and unplug the injector harness connectors, detach the vacuum tube from the fuel pressure regulator, and remove the fuel supply hose, fuel return line from the intake manifold, and fuel return line from the fuel pressure regulator. Remove the fuel rail mounting bolts, and if there's an automatic transmission, consider removing the automatic transmission line pressure cable and bracket to remove the fuel rail assembly. Carefully remove the fuel rail by rocking and pulling up on it until all injectors are out of the intake manifold, and then installation is the reverse of removal, ensuring proper seating of the injectors and using a new O-ring, spacer, and retainer repair kit when reattaching the fuel lines. To work on the fuel injector, follow the steps to relieve fuel pressure and detach the negative battery cable, and remove the fuel injector rail assembly. Remove the retaining clip(s) from the injectors and replace the O-rings and seals, ensuring you use the correct ones from the kit and coat them with a little fuel before installing the injectors. For the fuel pressure regulator on 1995 and earlier models, relieve fuel tank pressure and system fuel pressure, disconnect the negative battery terminal, and remove the regulator retaining screws or clip. Pull the regulator off the fuel rail, replace the O-ring, and install it with a new one before reinstallation. On 1996 and later models, the regulator is integrated with the Fuel Pump module and cannot be serviced separately. For 1997 and later models, relieve fuel pressure, remove the fuel tank, disconnect the fuel line, pry the retainer clamp loose, carefully remove the filter/regulator, replace the gasket, and ensure the new filter/regulator has both O-rings in place and apply clean engine oil to them before installation. Reattach the retainer clamp and complete the rest of the installation in reverse.
• Throttle Position Sensor
  4761871AB
  Q: How to replace a Fuel Injector,Fuel Pressure Regulator and Throttle Position Sensor on Jeep Cherokee?

  A: To fuel the body, start by detaching the cable from the negative battery terminal. Then, remove the Throttle Body and the three Torx head screws that attach the fuel body to it. Discard the original gasket and install a new one. For the fuel injector, remove the throttle body upper and lower bonnets. Detach the injector connector by compressing the lock tabs and lifting up. Remove the retainer and gently remove the injector by rocking it back and forth. Discard the centering ring and upper and lower O-rings. Lubricate the replacement O-rings and install them, along with the centering ring. Align the locating tab on the injector and install it, then tighten the retainer screws. Attach the injector connector and reinstall the bonnets. For the fuel pressure regulator, remove the throttle body and the mounting screws. Remove the housing, spring, spring seats, diaphragm, and pivot. Clean any foreign material from the housing. Install the new regulator, making sure the diaphragm vent hole is aligned with the vent holes in the throttle body and housing. Start the engine and check for leaks, then adjust the fuel pressure. To replace the throttle position sensor (TPS), remove the air inlet bonnets and the throttle body. Unplug the TPS connector and remove the mounting screws. Remove the TPS from the throttle shaft lever and reinstall it, making sure the TPS arm is underneath the throttle shaft lever. Have the TPS adjusted by a dealer service department. Lastly, for the idle speed actuator (ISA) motor, disconnect the harness connector and remove the throttle return spring. Remove the mounting nuts and the ISA motor from the bracket. Reinstall the motor and have it adjusted by a dealer service department.
