Genuine Ram 1500 Brake Disc
Disc Rotor- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
16 Brake Discs found

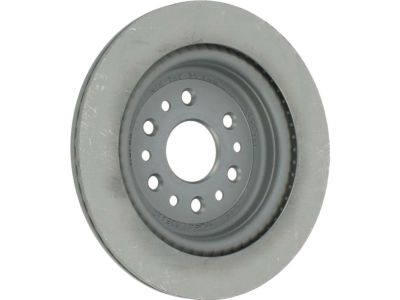

Ram 1500 Brake Disc
The Brake Disc is an essential component of the latest Ram 1500 cars and is used in disc brake systems to offer the friction needed to enable a car stop or slow down when commanded by the brake pedal. The hydraulic part enlarges driver's command, applying pressure to the brake pads, which are situated in front of the rotors, attached to the axles and spinning with the wheels. These rotors are most commonly cast iron based, which may incorporate cooling vents to address the problematic heat build up that occurs during use. There are numerous types of Brake Discs which have been used on Ram 1500 over the years, these include the drilled and slotted ones, which enhance heat exodus and low-noise features. A couple of, friction ring and center section are joined by using two-piece rotors so as to progressively balance weight and thermal steadiness. Such problems as warping, cracking or rusting should be dealt with through regular maintenance so that the Brake Disc performs effectively for safety in the Ram 1500.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 1500 Brake Disc at great affordable prices. Moreover, all genuine Ram 1500 Brake Disc come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 1500 Brake Disc Parts Questions & Experts Answers
- Q: How to Inspect the Brake Disc on Ram 1500?A: To inspect the brakes, start by loosening the wheel lug nuts and raising the vehicle on jackstands. Apply the parking brake and remove the wheels. Visually inspect the disc surface for score marks and other damage. Deep grooves require disc removal and refinishing. Check both sides of the disc. To check disc runout, place a dial indicator about 1/2-inch from the outer edge of the disc. Set the indicator to zero and turn the disc. The indicator reading should not exceed the runout limit. If it does, the disc should be refinished. Check the disc thickness with a micrometer. To remove the disc, remove the Brake Caliper and hang it out of the way. Remove the caliper mounting bracket and, if equipped, the hub extender. Remove the lug nuts and pull the disc off the hub. If removing a rear disc on a model with dual rear wheels, remove the rear axleshaft and hub and bearing assembly, then unbolt the disc from the hub. Installation is the reverse of removal. Tighten the disc-to-hub bolts securely. Lower the vehicle and tighten the wheel lug nuts to the specified torque.
