Genuine Ram 1500 Engine Mount
Engine Motor Mount- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
91 Engine Mounts found
| Page 1 of 5 |Next >
1-20 of 91 Results

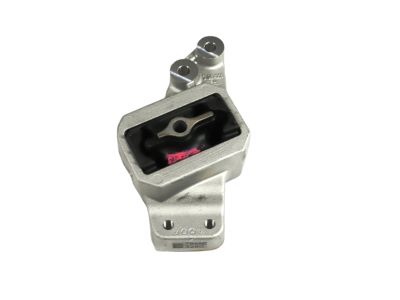

Ram 1500 Engine Mount
The Engine Mount in Ram 1500 vehicles serves two primary functions: it reduces noise and vibration from the engine operation apart from holding and placing the engine with accuracy in the chassis. This isolation is very desirable for comfort point of view but correct position of the engine is also very important for handling the car and to prevent the damages to its components. Traditionally Ram 1500 models have come with different types of Engine Mounts such as rubber type Engine Mounts, fluid filled Hydraulic type Engine Mounts and the modern innovative electronic active type Engine Mounts. Conventional mounts have metal parts with rubber spacers while hydraulic type have higher vibration damping capability. The newest active mounts in addition depend on the levels of the rotations per minute, enhancing drivability. Engine Mounts are designed to fail due to age factor, heat and exposure to fluids and they follow certain signs like, noises and vibration which usually call for inspection and replacement if necessary.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 1500 Engine Mount at great affordable prices. Moreover, all genuine Ram 1500 Engine Mount come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 1500 Engine Mount Parts Questions & Experts Answers
- Q: How to replace engine mounts in 3.7L V6 and 4.7L V8 engine on Ram 1500?A: Because engine mounts are generally unobtrusive, it is very important that damaged or decayed mounts are instantly replaced to avoid further strain on the drive line parts. As a part of inspection, the weight from the mounts must be slightly lifted by raising the engine. To check this; raise the vehicle and support secure it on jackstands then place a wooden block between the jack head and oil pan under the engine oil pan to lift it up slightly. Check for any movement between inner and outer parts of mountings and if there is any movement then lower down engine and tighten mounting fasteners. Secondly, inspect for cracks in rubber from metal casing, hardening of rubber or separation of rubber from metal casing, which all shows that they should be replaced. For replacement: first disconnect battery cable, remove fanshroud attaching bolts to shroud attachement brackets, remove the engine cooling fan, and raise the front of the vehicle on jackstands. The motor will have to be supported from above with an appropriate lifting device taking care not to engage it with manifold intake so as to raise such motor in order to bring about release of mount's weight. Follow these steps depending on whether your model is 2WD or 4WD: Remove engine heat shield (if equipped). Lowering frame bracket free-bolt guide-engine support assembly into position on through bolt plate . Reverse procedure to complete installation .Finally, remove the engine hoist and jackstands, and lower the vehicle.
