9 Harmonic Balancers found

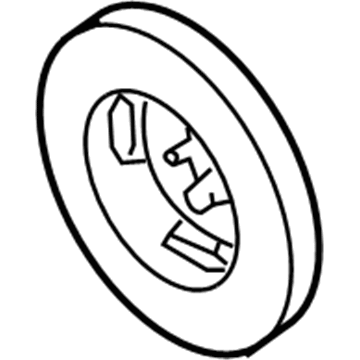

Ram 2500 Harmonic Balancer
The Harmonic Balancer in Ram 2500 vehicles plays the role of balancing the engine as well as absorptions of vibrations produced through the processes of combustion. This component is also known as the vibration damper and is made up of a metal hub which is fixed onto the crankshaft and a thick inertia ring that is surrounded by a rubber ring that flexes to counter act twist. Nevertheless, these rubber components wear over time due to the environmental factors that could result to crankshaft damage in the event that the balancer gives way. Harmonic Balancers vary depending on the Ram 2500 models with employing of the standard original equipment Harmonic Balancers for cars and some performance parts for it. They also compare standard balancers with factory engine specifications with performance harmonic balancers, which are suitable for modified engines as they offer protection at other increased levels of vibrations as well. Other performance options available are the traditional viscous and multi-piece types, all with the safety testing at higher RPMs and equipped with features such as the timing marks to mention but a few.
Looking for affordable and high-quality auto parts? Then you have already arrived at the proper online shop. We offer all Ram 2500 Harmonic Balancer at great affordable prices. Moreover, all genuine Ram 2500 Harmonic Balancer come with a manufacturer's warranty. In the long run, you would realize you have saved a lot of trouble and money with OEM parts from here.
Ram 2500 Harmonic Balancer Parts Questions & Experts Answers
- Q: How to remove and install a crankshaft pulley and Harmonic Balancer in 3.7L V6 and 4.7L V8 engine on Ram 2500?A: Disconnect the battery cable from its negative terminal. Next, remove the top radiator hose after draining some coolant. Remove the fans and shroud jointly as one unit. Store the fan assembly in an upright position so that you do not ruin the bearing. Take off the drive belt. Use a strap wrench together with a breaker bar to take out crankshaft pulley's center bolt. Using a puller with three hooks, and making sure that they only touch the hub of pulley, pull off the damper from crankshaft. Check if there are any grooves on the surface of pulley's hub and install new one if found necessary. Lubricate pulley's hub using clean engine oil and align key on crankshaft with slot in pulley.Installation tool for vibration damper can be used to push this onto crankshaft.Pull it over by using vibration damper installation tool until it seats correctly.Push it on crankshaft then finish pulling down by using vibration damper installation tool.Finally, tighten the fixing bolts of the damper on the crankshaft to the specified torque.Remaining part of installation is reverse of removal.
