5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

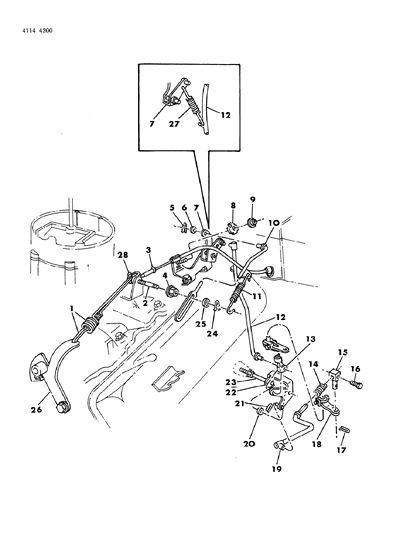

  • 1.FUEL THROTTLE CONTROL W/1.6 LITER ENGINE
    1984 Chrysler Fifth Avenue Throttle Control Diagram 1

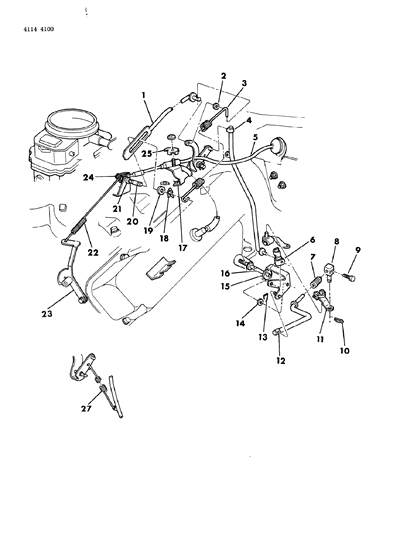

  • 2.FUEL THROTTLE CONTROL W/318 - 2BBL AUTO TRANS. - F,G,B
    1984 Chrysler Fifth Avenue Throttle Control Diagram 2
  • 3.FUEL THROTTLE CONTROL W/318 - 4BBL ENGINE w/AUTO TRANS. - F,G,B
    1984 Chrysler Fifth Avenue Throttle Control Diagram 3
  • 4.FUEL THROTTLE CONTROLS - T.B.I
    1984 Chrysler Fifth Avenue Throttle Control Diagram 4
  • 5.FUEL THROTTLE CONTROLS - TURBO CHARGER
    1984 Chrysler Fifth Avenue Throttle Control Diagram 5
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4268846
    BRACKET, Throttle Spring Mounting
  • 1
    4275949
    CABLE, Throttle Control
    • Up to 10-17-83
  • 1
    4287501
    CABLE, Throttle Control
    • Up to 10-17-83
  • 1
    4287530
    CABLE, Throttle Control
    • After 10-17-83
      CABLE, Throttle Control
  • 1
    4306187
    CABLE, Throttle Control
    • After 10-17-83
      CABLE, Throttle Control
  • 1
    3769872
    ROD
  • 1
    3870659
    SPRING
    • Inner
  • 1
    3870660
    SPRING
    • Outer
  • 2
    5214346
    BRACKET, Trans. Cable Mounting
  • 2
    4287503
    CABLE, Auto Trans.
  • 2
    4268844
    SPRING
  • 2
    120393
    WASHER
  • 3
    4275990
    BRACKET, Throttle Control Mounting
  • 3
    4241555
    RETAINER, Cable
  • 3
    6500716
    SCREW, w/WASHER
  • 3
    3870696
    SPRING
  • 4
    4275989
    CABLE, Throttle Control
  • 4
    6031628
    CLIP
    • Require Quantity: 2
  • 4
    6030607
    NUT
  • 4
    4241555
    RETAINER
  • 4
    4041509
    ROD
    • w/A904 Trans.
  • 4
    4041520
    ROD
    • w/A727 Trans.
  • 5
    4027358
    CABLE
  • 5
    4268811
    CABLE, Auto Trans.
  • 5
    6500716
    SCREW and WASHER, Bracket Attaching
    • Require Quantity: 2
  • 6
    4268807
    BRACKET, Cable Mounting
    • BRACKET, Cable Mounting
  • 6
    4268831
    BRACKET, Cable Mounting
    • BRACKET, Cable Mounting
  • 6
    2899361
    CLIP
  • 6
    6031628
    CLIP
  • 6
    120393
    WASHER
  • 7
    4027101
    BRACKET, Cable Mounting
  • 7
    6031628
    CLIP, Throttle Control Cable
  • 7
    Chrysler 3769198
    3769198
    SPRING
  • 7
    4268832
    SPRING, Accel. Pedal Return
  • 8
    2402210
    CLIP
  • 8
    5240826
    LEVER, Throttle Control
  • 8
    4027374
    SWIVEL
  • 9
    5240826
    LEVER, Auto Trans. Throttle Control
  • 9
    120375
    NUT w/WASHER
  • 9
    Chrysler 181082
    181082
    SCREW
  • 10
    5214346
    BRACKET, Auto Trans. Cable Mounting
  • 10
    6031511
    CLIP, Auto Trans. Lever
  • 10
    4041548
    ROD
  • 11
    Chrysler 6500136
    6500136
    SCREW and WASHER, Auto Trans. Cable Mounting
  • 11
    4027590
    SPRING
  • 11
    4268844
    SPRING, Accel Pedal Return
  • 12
    4026536
    ROD
    • w/727 Trans.
  • 12
    4041509
    ROD
    • w/A904 Trans.
  • 12
    4041520
    ROD
    • w/A727 Trans.
  • 12
    4071978
    ROD
    • w/904 Trans.
  • 13
    2899361
    CLIP
    • CLIP
  • 13
    6027983
    CLIP
    • CLIP
  • 14
    Chrysler 3769198
    3769198
    SPRING
  • 14
    Chrysler 120394
    120394
    WASHER
  • 15
    3751529
    BELLCRANK
    • w/A904 Trans.
  • 15
    3751535
    BELLCRANK
    • w/A727 Trans.
  • 15
    4027374
    SWIVEL
  • 16
    Chrysler 181082
    181082
    SCRRW
  • 17
    3870670
    BRACKET, Cable Mounting
  • 18
    Chrysler 6026776
    6026776
    CLIP
  • 19
    4071978
    ROD
    • w/A904 Trans.
  • 19
    4173225
    ROD
    • w/A727 Trans.
  • 20
    Chrysler 120394
    120394
    WASHER
  • 21
    6027983
    CLIP
  • 21
    6030607
    NUT
  • 22
    3751529
    BELLCRANK
    • w/A904 Trans.
  • 22
    3751535
    BELLCRANK
    • w/A727 Trans.
  • 22
    3870659
    SPRING
  • 25
    2402210
    CLIP
  • 26
    120375
    NUT w/WASHER
  • 27
    2536847
    SPRING, Linkage Assist
    • COLLAR, Cable Adjusting
  • 27
    3870666
    SPRING, Linkage Assist
    • SPRING, Linkage Assist
  • 27
    4041545
    SPRING, Linkage Assist
    • CABLE, Fast Idle
  • 27
    4041546
    SPRING, Linkage Assist
    • BRACKET, Fast Idle Cable
  • 27
    4041547
    SPRING, Linkage Assist
    • LEVER, Fast Idle Adjusting
  • 28
    2536847
    CLIP, Throttle Control
    • COLLAR, Cable Adjusting
  • 28
    4041545
    CLIP, Throttle Control
    • CABLE, Fast Idle
  • 28
    4041546
    CLIP, Throttle Control
    • BRACKET, Fast Idle Cable
  • 28
    4041547
    CLIP, Throttle Control
    • LEVER, Fast Idle Adjusting
  • 28
    6023285
    CLIP, Throttle Control
    • CLIP, Throttle Control
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Chrysler Fifth Avenue parts. Parts like Throttle Control are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
