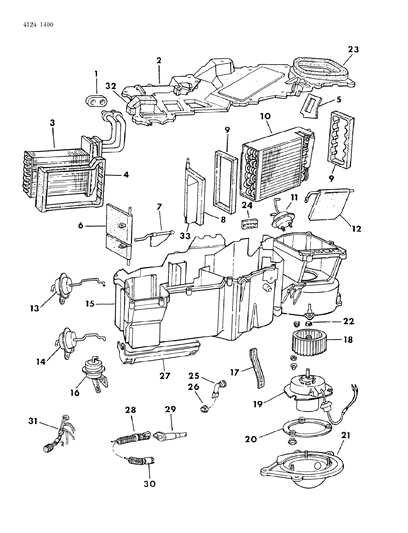

Diagram (1 of 1): HEATER AND AIR CONDITIONING AIR CONDITIONER AND HEATER UNIT B,F,G

1984 Chrysler Fifth Avenue Air Conditioner & Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
3846740
SEAL, A/C Heater Tubes to Dash

2
3847282
COVER, A/C Housing, Up to 2-6-84
COVER, A/C Housing, Up to 2-6-84
2
3849097
COVER, A/C Housing, Up to 2-6-84
- After 2-6-84
2
4240440
COVER, A/C Housing, Up to 2-6-84
- TANK, A/C Heater Core

3
3847600
CORE, A/C or Heater

4
3846773
SEAL, A/C Coare to Housing Mounting, Up to 2-6-84
SEAL, A/C Coare to Housing Mounting, Up to 2-6-84
4
3849100
SEAL, A/C Coare to Housing Mounting, Up to 2-6-84
- After 2-6-84

5
3847304
SEAL, A/C Unit to Dash at Coil

6
3847231
DOOR and SEAL, A/C Mode

7
3847478
DOOR, A/C Defroster

8
3847223
DOOR and SEAL, A/C Blend Air
DOOR and SEAL, A/C Blend Air
8
3847296
DOOR and SEAL, A/C Blend Air
- SERVO, A/C Blend Air Door, w/ATC
8
3847913
DOOR and SEAL, A/C Blend Air
- PAD, A/C Blend Air Door Servo Silencer, w/ATC

9
3847116
SEAL, A/C Evap Coil Header End
SEAL, A/C Evap Coil Header End
9
3847790
SEAL, A/C Evap Coil Header End
- SEAL, A/C Evap Coil Bottom

10
3847256
COIL and SEAL, A/C Evap om

11
3847216
ACTUATOR, A/C Fresh Air Door

12
3847217
DOOR and SEAL, A/C Fresh Air

13
3847230
ACTUATOR, A/C Mode Door Upper

14
3847229
ACTUATOR, A/C Mode Door Lower

15
3847278
HOUSING, w/STUD, A/c Evap, w/ATC, Up to 2-6-84
HOUSING, w/STUD, A/c Evap, w/ATC, Up to 2-6-84
15
3849092
HOUSING, w/STUD, A/c Evap, w/ATC, Up to 2-6-84
- After 2-6-84

16
3847211
ACTUATOR, A/C Defr Door

17
3847202
BRACE, A/C Unit to Plenum Mounting

18
3503037
WHEEL, A/C Blower Motor

19
4240425
MOTOR, A/C Blower

20
3847476
SEAL, A/C Blower Motor Mounting to Scroll

21
3773192
COVER and STUD, A/C Blower Scroll
SEAL, A/C Blower Scroll Cover to Housing
21
3847205
COVER and STUD, A/C Blower Scroll
- SEAL, A/C Cover to Scroll
21
3847207
COVER and STUD, A/C Blower Scroll
- COVER and STUD, A/C Blower Scroll

22

2837680
CLAMP, A/C Blower Motor Wheel Motor Mounting
$2.35 $1.31
1
Add To Cart

23
3847243
SEAL, A/C Unit to Plenum

24
3848996
RESISTOR, A/C Blower Motor

25
3503133
TUBE, A/C Drain, Up to 5-15-84
TUBE, A/C Drain, Up to 5-15-84
25
3848827
TUBE, A/C Drain, Up to 5-15-84
- After 5-15-84

26
6031886
RETAINTER, A/C Drain Tube

27
3847297
DUCT, A/C Heat Distribution

28
3847294
HOSE, A/C Sensor to Aspirator, w/ATC
HOSE, A/C Sensor to Aspirator, w/ATC
28
4005185
HOSE, A/C Sensor to Aspirator, w/ATC
- HOSE, A/C Aspriator to Evaporator Housing, w/ATC

29
3847766
ASPRIATOR, A/C, W/ATC

30
3847291
SENSOR, w/ATC
SENSOR, w/ATC
$70.01 $55.02
1
Add To Cart
30
3847589
SENSOR, w/ATC
- SENSOR, Ambient, w/ATC

31
3847627
HOSE, w/CONNECTOR, A/C Vacuum
HOSE, w/CONNECTOR, A/C Vacuum
31
6015778
HOSE, w/CONNECTOR, A/C Vacuum
- CLIP, A/C Vacuum Hose Retaining

32
3503999
SEAL, A/C Cover to Deforster Duct

33
3847225
DEFLECTOR, A/C Blend Air Door
