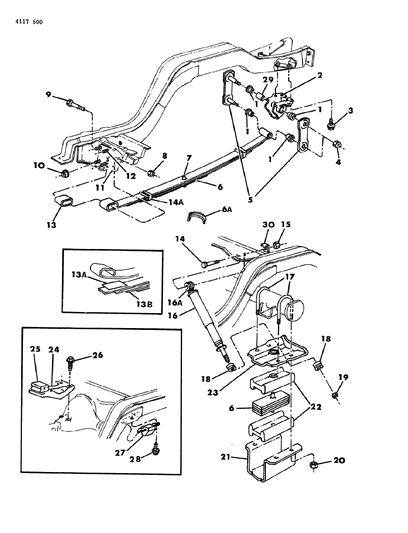

Diagram (1 of 1): REAR SUSPENSION SUSPENSION, REAR B,F,G
1984 Chrysler Fifth Avenue Suspension - Rear Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2
    4014634
    HANGER, Rear,Std. Or H.D. w/o Rear Sway Bar, Right
    • HANGER, Rear,Std. Or H.D. w/o Rear Sway Bar, Right
  • 2
    4014635
    HANGER, Rear,Std. Or H.D. w/o Rear Sway Bar, Right
    • HANGER, Rear,Std. Or H.D. w/o Rear Sway Bar, Left
  • 2
    4014704
    HANGER, Rear,Std. Or H.D. w/o Rear Sway Bar, Right
    • w/Rear Sway Bar, Right
  • 2
    4014705
    HANGER, Rear,Std. Or H.D. w/o Rear Sway Bar, Right
    • w/Rear Sway Bar, Left
  • 3
    6030876
    BOLT, Hanger
    • Require Quantity: 4
  • 5
    3780515
    SHACKLE AND BUSHING PKG., STD. Or H.D. w/o Rear Sway Bar
    • SHACKLE AND BUSHING PKG., STD. Or H.D. w/o Rear Sway Bar
    • Require Quantity: 2
  • 5
    4094060
    SHACKLE AND BUSHING PKG., STD. Or H.D. w/o Rear Sway Bar
    • SHACKLE AND BUSHING PKG., w/7 1/4 Or 8 1/4" Axle, w/Rear Sway Bar (2 - 271 502 Nut)
    • Require Quantity: 2
  • 6
    4026817
    SPRING,w/BUSHING, Std. (4 Leaf)
    • SPRING,w/BUSHING, Std. (4 Leaf)
    • Require Quantity: 2
  • 6
    4131332
    SPRING,w/BUSHING, Std. (4 Leaf)
    • H.D. Police Cars Only (5 Leaf)
    • Require Quantity: 2
  • 6
    4186001
    SPRING,w/BUSHING, Std. (4 Leaf)
    • H.D. (5 Leaf)
    • Require Quantity: 2
  • 6A
    1829929
    INSULATOR, Alignment Clip
  • 7
    3643558
    BOLT, Rear Spring Center
    • Require Quantity: 2
  • 8
    0152370
    NUT, Bolt Pivot
    • Require Quantity: 2
  • 9
    0433179
    BOLT, Bushing Pivot
    • Require Quantity: 2
  • 11
    4052205
    HANGER, Frt.
    • Require Quantity: 2
  • 13
    3815210
    BUSHING, Frt. Pivot
    • BUSHING, Frt. Pivot
    • Require Quantity: 2
  • 13
    4052125
    BUSHING, Frt. Pivot
    • w/Extra Duty Susp.
    • Require Quantity: 2
    • Package Quantity: 1
  • 13B
    2539512
    INTERLEAF
  • 14
    181173
    Bolt, Rear Shock Upper Mtg.
    • Require Quantity: 2
  • 16
    4057094
    SHOCK, Rear, Std.
    • H.D., 1-3/8" Dia. (Blue)
    • Require Quantity: 2
  • 16
    4228413
    SHOCK, Rear, Std.
    • SHOCK, Rear, Std.
    • Require Quantity: 2
  • 16
    4228414
    SHOCK, Rear, Std.
    • H.D., 1" Dia.
    • Require Quantity: 2
  • 16
    G0073482
    SHOCK, Rear, Std.
    • Mopar V-Line Alternative Part
  • 16A
    1319902
    BUSHING, Rear Shock Upper Mtg.,1"Dia. Std.Or H.D.
    • Require Quantity: 2
  • 17
    3845264
    CLIP, 4-3/8" Lgh., 7/16-20 Thd.
    • Require Quantity: 4
  • 18
    3643891
    BUSHING, Lower Mtg.
    • Require Quantity: 4
  • 19
    0272235
    NUT, Lower Mtg.
    • Require Quantity: 2
  • 21
    3815206
    CLAMP, Spring Isolator, Std.
    • CLAMP, Spring Isolator, Std.
    • Require Quantity: 2
  • 21
    3815309
    CLAMP, Spring Isolator, Std.
    • H.D. Or Firm Feel Susp.
    • Require Quantity: 2
  • 23
    3845128
    SPRING-PLATE, 7-1/4" or 8-1/4" Axle w/o Sway Bar, Right
    • SPRING-PLATE, 7-1/4" or 8-1/4" Axle w/o Sway Bar, Right
  • 23
    3845129
    SPRING-PLATE, 7-1/4" or 8-1/4" Axle w/o Sway Bar, Right
    • SPRING-PLATE, 7-1/4" or 8-1/4" Axle w/o Sway Bar, Left
  • 23
    4014710
    SPRING-PLATE, 7-1/4" or 8-1/4" Axle w/o Sway Bar, Right
    • 7-1/4" Or 8-1/4" Axle w/Sway Bar, Right
  • 23
    4014711
    SPRING-PLATE, 7-1/4" or 8-1/4" Axle w/o Sway Bar, Right
    • 7-1/4" Or 8-1/4" Axle w/Sway Bar, Left
  • 25
    3845139
    BUMPER, w/o Support
  • 27
    2834767
    BUMPER, w/Support Side Rail, Std. Or H.D., w/o Rear Sway Bar
    • w/o Support, w/Rear Sway Bar
    • Require Quantity: 2
  • 27
    3845988
    BUMPER, w/Support Side Rail, Std. Or H.D., w/o Rear Sway Bar
    • BUMPER, w/Support Side Rail, Std. Or H.D., w/o Rear Sway Bar
    • Require Quantity: 2
  • 27
    4014503
    BUMPER, w/Support Side Rail, Std. Or H.D., w/o Rear Sway Bar
    • w/Support, w/Rear Sway Bar
    • Require Quantity: 2
  • 28
    2403462
    SCREW,w/WASHER, Side Rail Att.(Not Serv.)
    • SPACER, Spring Center Bolt (Not Shown)
    • Require Quantity: 4
  • 28
    4014703
    SCREW,w/WASHER, Side Rail Att.(Not Serv.)
    • PLATE, Spring Shackle, Loose, w/Rear Sway Bar (Not Ill.)
    • Require Quantity: 2
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Chrysler Fifth Avenue parts. Parts like Suspension - Rear are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 5.2L. Transmission: Automatic Transmission.
