6 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

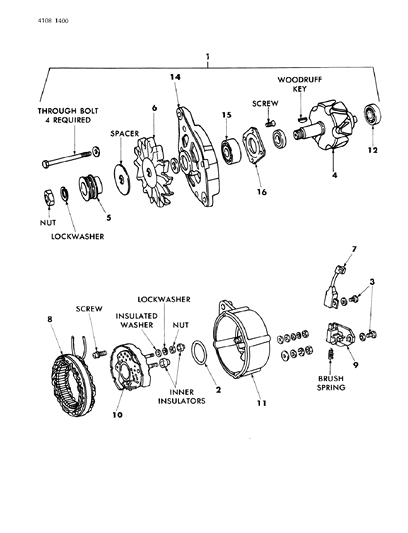

- 1.ELECTRICAL ALTERNATOR 1.6 AND 2.2 ENGINES

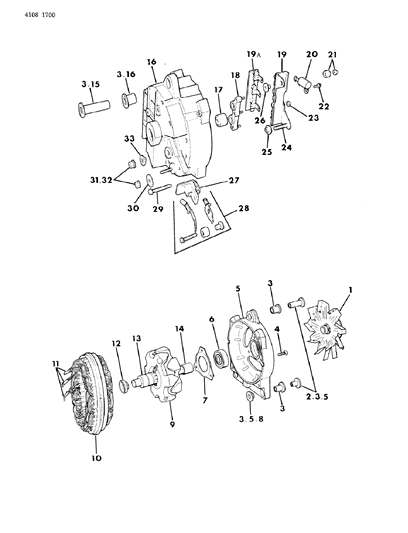

- 2.ELECTRICAL ALTERNATOR 114 AMP. 318 ENGINE

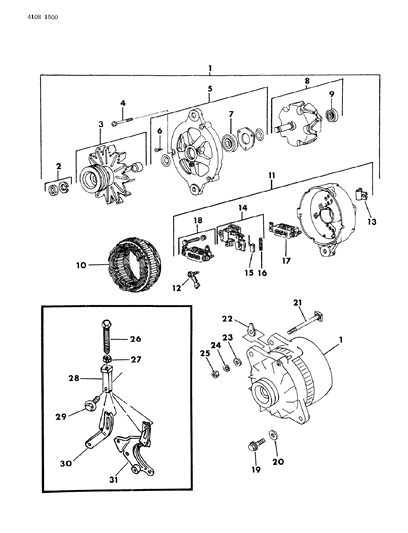

- 3.ELECTRICAL ALTERNATOR 2.6 ENGINE
- 4.ELECTRICAL ALTERNATOR TURBO ENGINE

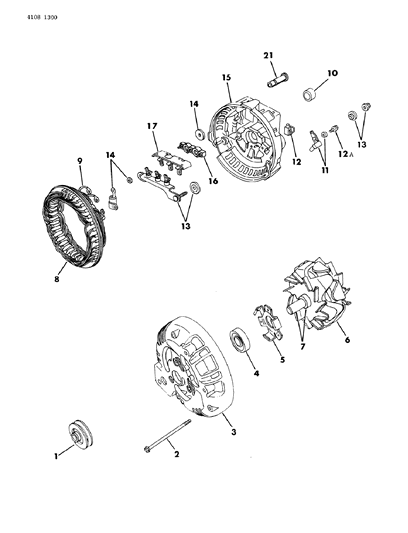

- 5.ELECTRICAL ALTERNATOR--60 AMP. 318 ENGINE

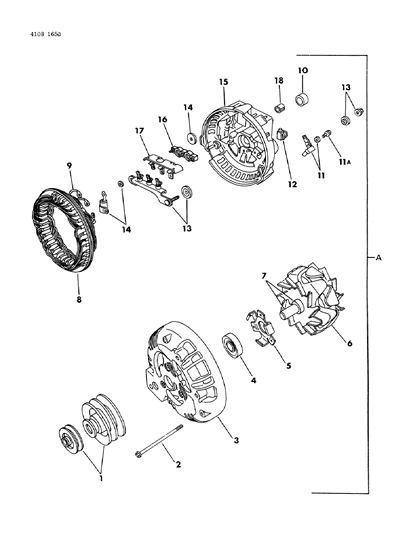

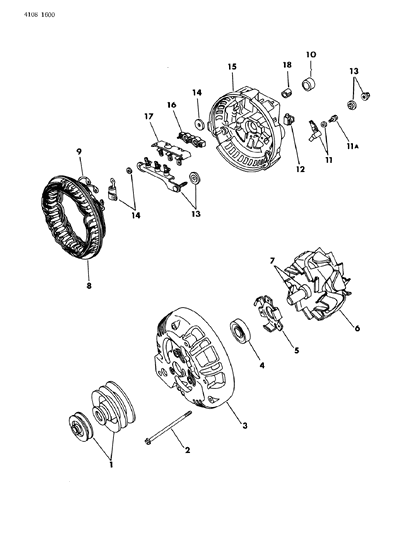

- 6.ELECTRICAL ALTERNATOR--78 AMP. 318 ENGINE
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 15213756
ALTERNATOR - 1MD062007
ALTERNATOR- ALTERNATOR
- 1R062007M
ALTERNATOR- ALTERNATOR
- 14094028
FAN and PULLEY, Double Groove
- 15213760
PULLEY, Single Groove- PULLEY, Single Groove
- 15226019
PULLEY, Single Groove- 1.6 Eng.
- 15226324
PULLEY, Single Groove- Turbo
- 14106094
PULLEY, w/4091565
- 14106094
PULLEY, w/4176007, 1-Groove Pulley- PULLEY, w/4176007, 1-Groove Pulley
- 14111768
PULLEY, w/4176007, 1-Groove Pulley- w/4176006, 2-Groove Pulley
- 2MM502340
NUT SET
- 25213989
O-RING- O-RING
- 25226329
O-RING- WASHER
- Require Quantity: 4
- 24091505
SCREW, Frame
- 24091505
SCREW, Frame, 10-32 x 3.40- Require Quantity: 2
- 34094012
ISOLATOR PACKAGE
- 3MD607779
PULLEY
- 34091533
SHIELD, Drive End- SHIELD, Drive End
- 34091534
SHIELD, Drive End- SHIELD, Drive End
- 35206421
SHIELD, Drive End 78 Amp.- 60 Amp.
- 35206422
SHIELD, Drive End 78 Amp.- SHIELD, Drive End 78 Amp.
- 35213964
SHIELD, Drive End 78 Amp.- 1.6 Eng.
- 35226328
TERMINAL SET
- 43656444
BEARING, Drive End Shield
- 43656444
BEARING, Drive End Shield 78 Amp. - 45213982
BEARING, Drive End Shield 78 Amp.
- 45226309
ROTOR- ROTOR
- 45226325
ROTOR- SCREW
- 45226326
ROTOR- SCREW
- 45226327
ROTOR- ROTOR SET
- 49428120
SCREW- Require Quantity: 2
- 4MD607205
SCREW SET
- 5MD607424
BRACKET ASSEMBLY, Front
- 53874995
DRIVE END SHIELD
- 54091398
PLATE, Drive End Shield Ret.
- 55226324
PULLEY
- 52095012
RETAINER, Drive End Shield
- 63755951
BEARING, Drive End Shield
- 65213998
FAN- WASHER
- 65213999
FAN- SCREW
- 65226322
FAN
- 64240413
ROTOR - 64240414
ROTOR
- 64145342
ROTOR, 78 Amp.- SPACER, Altr. Rotor
- 64240413
ROTOR, 78 Amp.- 60 Amp.
- 64240414
ROTOR, 78 Amp. - 65213984
ROTOR, 78 Amp. - 65226020
ROTOR, 78 Amp.
- 6MD602938
SCREW SET
- 7MM502264
BEARING
- 75213997
CAPACITOR, Suppression- CAPACITOR, Suppression
- 75226317
CAPACITOR, Suppression- WASHER
- Require Quantity: 4
- 75226318
CAPACITOR, Suppression- SCREW
- Require Quantity: 2
- 75226319
CAPACITOR, Suppression- BUSHING, Expansion
- 75226320
CAPACITOR, Suppression- WASHER and SCREW
- Require Quantity: 2
- 73744889
RETAINER and RING PACKAGE
- 73744889
RETAINER and SLIP RING PACKAGE
- 73755737
RETAINER, Drive End Shield Bearing
- 8MD607425
ROTOR ASSEMBLY
- 84091515
STATOR - 84091517
STATOR - 85226315
STATOR
- 84091515
STATOR, 78 Amp. - 84091517
STATOR, 78 Amp. - 85213994
STATOR, 78 Amp.
- 9MD602789
BEARING, Rear- BEARING, Rear
- 9MD607590
BEARING, Rear- WASHER, Spring
- 95226313
HOLDER, Brush- REGULATOR, Elec. Voltage
- 95226314
HOLDER, Brush- HOLDER, Brush
- 94026048
ROTOR and SPACER PACKAGE
- 93438709
TERMINAL
- 93438709
TERMINAL, Stator- Require Quantity: 2
- 103755184
BEARING, Rectifier End Shield- BEARING, Rectifier End Shield
- 103755184
BEARING, Rectifier End Shield- BEARING, Rectifier End Shield
- 105213986
BEARING, Rectifier End Shield
- 105226312
RECTIFIER
- 103879401
STATOR
- 10MD607428
STATOR ASSEMBLY
- 11MD607427
BRACKET ASSEMBLY, Rear
- 114057928
BRUSH and WASHER PACKAGE- BRUSH and WASHER PACKAGE
- 115211772
BRUSH and WASHER PACKAGE- BRUSH and WASHER PACKAGE
- 11
- 115226311
COLLECTOR RING, End Shield
- 11A6031272
SCREW
- 125213986
BEARING, Ball Deep Groove
- 123438159
BRUSH HOLDER, Axial- BRUSH HOLDER, Axial
- 123438159
BRUSH HOLDER, Axial- BRUSH HOLDER, Axial
- 124091667
BRUSH HOLDER, Axial- Radial
- 124091667
BRUSH HOLDER, Axial- Radial
- 125213991
BRUSH HOLDER, Axial
- 12MD607431
TERMINAL SET
- 12A6031272
SCREW and WASHER- Require Quantity: 2
- 134240488
BATTERY TERMINAL and POSITIVE HEAT SINK
- 134240488
BATTERY TERMINAL and POSITIVE HEAT, 60 & 78 Amp.
- 13MD607262
CONDENSER ASSEMBLY
- 135226310
RING, Collector
- 133838080
SLIP RING, (Serv. in Slip Ring & Retainer Pkg.)
- 143620793
CAPACITOR and INSULATOR PACKAGE
- 143620793
CAPACITOR, STUD & INSULATOR - 145213997
CAPACITOR, STUD & INSULATOR
- 145226308
PLATE, Cover
- 14MD607372
REGULATOR ASSEMBLY
- 155226307
BEARING, Ball Deep Groove
- 15MD607373
BRUSH- Require Quantity: 2
- 155213706
SHIELD, Rectifier End
- 154240405
SHIELD, Rectifier End 78 Amp.- SHIELD, Rectifier End 78 Amp.
- 154240489
SHIELD, Rectifier End 78 Amp.- 60 Amp.
- 155213987
SHIELD, Rectifier End 78 Amp.
- 155213706
SHIELD, Rectifier End.
- 163438729
INSULATOR
- 163438729
INSULATOR, Stator Term. Stud
- 165226306
SHIELD, Drive End
- 164091466
SHIELD, Rectifier End
- 16MD602227
SPRING, Brush- Require Quantity: 2
- 173874074
BEARING, Rectifier End Shield
- 173755114
HEAT SINK, Negative
- 173755114
HEAT SINK, Negative 78 Amp.
- 17MD607429
RECTIFIER ASSEMBLY
- 183755625
INSULATOR
- 18MD607430
RECTIFIER SET
- 186030018
SCREW
- 19
- 194026303
HEAT SINK PACKAGE, Positive
- 19A3755627
HEAT SINK PACKAGE, Negative
- 20
- 20
- 21
- 213620794
INSERT, (Serv. in Rectifier End Shield)- TERMINAL PACKAGE
- 213838078
INSERT, (Serv. in Rectifier End Shield)- STUD, Grd. Cable
- 214124952
INSERT, (Serv. in Rectifier End Shield)- MOLD, Field Term.
- 214209489
INSERT, (Serv. in Rectifier End Shield)- MOLD, Altr. (Repair)
- 215213191
INSERT, (Serv. in Rectifier End Shield)- INSERT, (Serv. in Rectifier End Shield)
INSERT, Altr. Mtg.
- 215213988
INSERT, (Serv. in Rectifier End Shield)- RECTIFIER, 1.6 Eng.
- 215213989
INSERT, (Serv. in Rectifier End Shield)- O-RING, 1.6 Eng.
- 215213996
INSERT, (Serv. in Rectifier End Shield)- SCREW, w/Washer 1.6 Eng.
- 215213998
INSERT, (Serv. in Rectifier End Shield)- WASHER, 1.6 Eng.
- 215213999
INSERT, (Serv. in Rectifier End Shield)- SCREW, 1.6 Eng.
- 216023914
INSERT, (Serv. in Rectifier End Shield)- NUT and WASHER, Pos. Heat Sink Mtg.
NUT, Grd. Stud
- 216031029
INSERT, (Serv. in Rectifier End Shield)- NUT, w/Washer, Batt. Term.
- 216500273
INSERT, (Serv. in Rectifier End Shield)- WASHER, Altr. Mtg. Bolt Nut
- 219437943
INSERT, (Serv. in Rectifier End Shield)- BOLT, Mtg. 3/8 x 7-1/4
- 22MD001517
SHIM
- 23
$1.35 $0.911
- 24
$0.25 $0.171
- 25
- 266500490
BOLT, Altr. Adj.
- 273838078
CAPACITOR STUD and INSULATOR PACKAGE
- 276500491
JAM NUT, Clevis To Altr. Adj. Slot
- 283755773
BRUSH ASSEMBLY- Brush Holder
- 283838079
BRUSH ASSEMBLY- BRUSH ASSEMBLY
- 284241147
CLEVIS, Altr. Adj. Assy.
- 296030547
SCREW, Frame, 10x24 1 5/8
- 304240438
STRAP, Altr. Altr. Adj. w/o /Cond.
- 314273050
BRACKET, Altr. Adj. w/A/ Cond. Assy.
- 316031029
NUT and WASHER
- 326023201
NUT and WASHER
- 333549591
INSULATOR, (Serv. in Rectifier End Shield)
- A4091565
ALTERNATOR, Single Groove Pulley-Prod. #4111226
- A4176006
ALTERNATOR, w/o Air, Prod. #4091566- w/ Air, Prod. #4111204
- A4176007
ALTERNATOR, w/o Air, Prod. #4091566- ALTERNATOR, w/o Air, Prod. #4091566
- 5213847
100 Amp., High Capacity - 5213756
90 Amp. (For Components See Illus. 1400) - 5213831
ALTERNATOR and PULLEY, 1.6 Eng. - 5213762
ALTERNATOR and PULLEY, 60 Amp. - 5213763
ALTERNATOR and PULLEY, 78 Amp. - 4226818
ALTERNATOR, 55 Amp. Prestolite Mexico - 4226819
ALTERNATOR, 65 Amp. Prestolite Mexico - 4091460
ALTERNATOR, PROD. 4091460 - R0291174
REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984 Chrysler LeBaron parts. Parts like Alternator are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 5-Speed Manual Transmission, Automatic Transmission.
