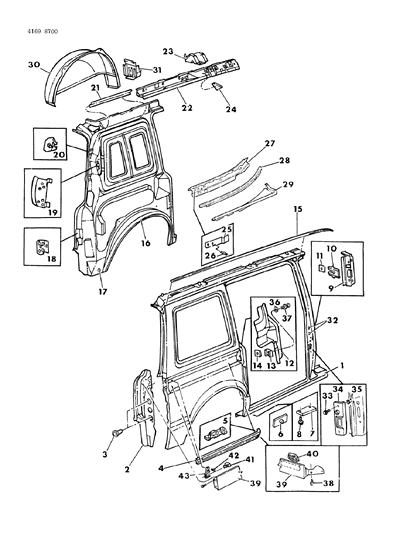

Diagram (1 of 1): BODY - SHEET METAL EXCEPT DOORS BODY REAR QUARTER RIGHT - H,K
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
1
4314552PANEL, Body Side Aperture, Rear- PANEL, Body Side Aperture, Rear
- Fitting Vehicle Options: 35
1
4371194PANEL, Body Side Aperture, Rear- Fitting Vehicle Options: 36
2
4337910
PANEL, Body Side Aperture Rear Extension, Up To 3/12/84
3
4314044CUP and SEAL, Side Aperture Rear Extension
4
4341162
TRACK, w/Bracket Sliding Door Center (Includes Item #5)
5
4314609
BRACKET, Sliding Door Center Track Cover, Front
4314277
PLATE, Body Side Aperture Jack Locator
7
4385108
PAD, Body Side Aperture Rear Hoisting
9
4278066
REINFORCEMENT, Body Side Aperture Front Door Latch Striker
10
4314092
RETAINER, Body Side Aperture Front Door Latch Striker T/Plate
11
4314743
T-PLATE, Body Side Aperture Front Door Latch Striker
12
4314542
REINFORCEMENT, Body Side Aperture Sliding Door Latch Striker
13
4337153
RETAINER, Body Side Aperture Sliding Door Latch Striker T/Plate
14
4337152
T-PLATE, Body Side Aperture Sliding Door Latch Striker
15
4278006
TROUGH, Roof Side Drain
16
4341422PANEL, Quarter Inner & Wheelhouse Outer- PANEL, Quarter Inner & Wheelhouse Outer
- Fitting Vehicle Options: 35
16
4341424PANEL, Quarter Inner & Wheelhouse Outer- Up To 11/7/83
- Fitting Vehicle Options: 36
16
4341596PANEL, Quarter Inner & Wheelhouse Outer- After 11/7/83
- Fitting Vehicle Options: 36
17
4073485
PLUG, 1.50" Dia./38 mm
18
4314049
REINFORCEMENT, Quarter Inner Panel Liftgate Stabilizer
19
4341062
T-PLATE, Rear Quarter Window Latch
20
4336398
REINFORCEMENT and NUT, Quarter Inner Panel Liftgate Prop Mounting
21
4337110
REINFORCEMENT, Body Side Aperture to Quarter Inner Panel
22
4278032
RAIL, Roof Side Inner
23
4296301
SUPPORT, Roof Side Rail Inner to Sliding Door Upper Track
24
4314508
SEAL, Body Side Aperture to Roof Side Rail Inner
25
4280966
SPRING, Sliding Door Lower Stop Hold-Open
28
4296286
TRACK, Sliding Door Lower
29
4278036
SUPPORT, Sliding Door Lower Track
30
4296544
PANEL, Wheelhouse Inner
31
4278556
REINFORCEMENT, Wheelhouse Inner to Sill Inner
32
6500827PLUG, Body Side Aperture Sliding Door & Door Ajar Switch Holes
34
4280768GUIDE ASSEMBLY, Stabilizer- GUIDE ASSEMBLY, Stabilizer
34
4280781GUIDE ASSEMBLY, Stabilizer
39
4278390PANEL, Track Cover w/Stud Assy.- PANEL, Track Cover w/o Stud Assy.
39
4371322PANEL, Track Cover w/Stud Assy.- PANEL, Track Cover w/Stud Assy.
40
6501071
RETAINER, Track Cover
41
4337050
BUMPER, Overtravel Stop Bracket
43
4336569
BRACKET, Overtravel Stop
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge Caravan parts. Parts like Body Rear Quarter Right are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
