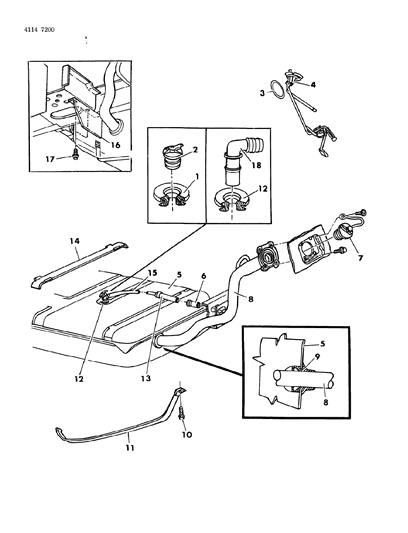

Diagram (1 of 1): FUEL FUEL TANK AND FUEL FILLER TUBES H,K
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
4002149
GROMMET, Rollover Valve
3
6033095SEAL, Fuel Tank Sending Unit- SEAL, Fuel Tank Sending Unit
4
5217742UNIT, Fuel Tank Sending
6
4279205
SLEEVE, Fuel Filler Vent Hose
7 7
7
8
4279583TUBE, Fuel Tank Filler 8
4279985TUBE, Fuel Tank Filler
10
6101341BOLT, Fuel Tank Strap- BOLT, Fuel Tank Strap
- Require Quantity: 2
11
4279691STRAP, Fuel Tank Mounting
12
13
4279284
HOSE, Fuel Filler Vent Tube
15
4279275
TUBE, Fuel Filler Vent
16
4279822SHIELD, Filler Tube Stone 16
4279904SHIELD, Filler Tube Stone
18
4279273NIPPLE, Fuel Tank Tube Vent 18
4279274NIPPLE, Fuel Tank Tube Vent
Genuine Mopar Parts, the Right Choice
MoparPartsGiant.com offers the wholesale prices for genuine 1984
Dodge Caravan parts. Parts like Fuel Tank & Fuel Filler are shipped directly from authorized Mopar dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L, 4 Cyl 2.6L. Transmission: 4-Speed Manual Transmission, 5-Speed Manual Transmission, Automatic Transmission.
